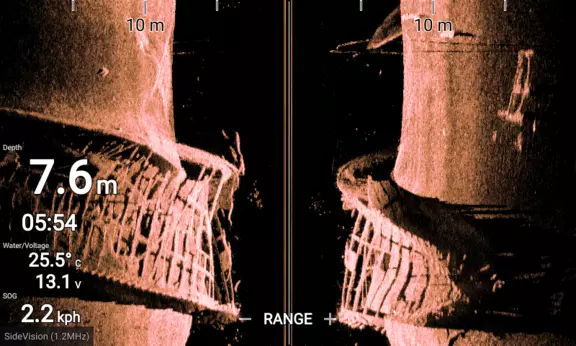

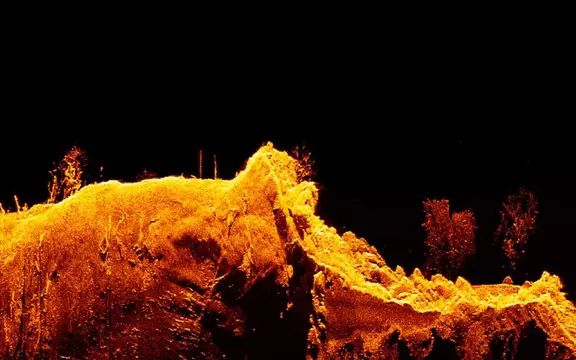

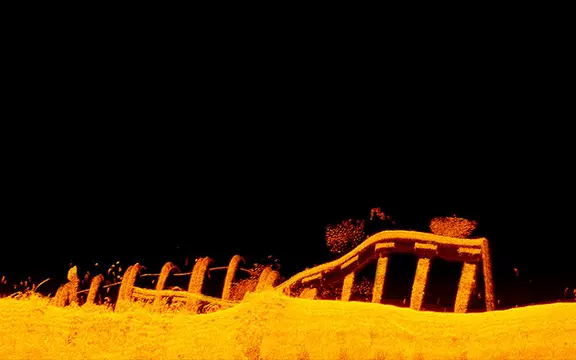

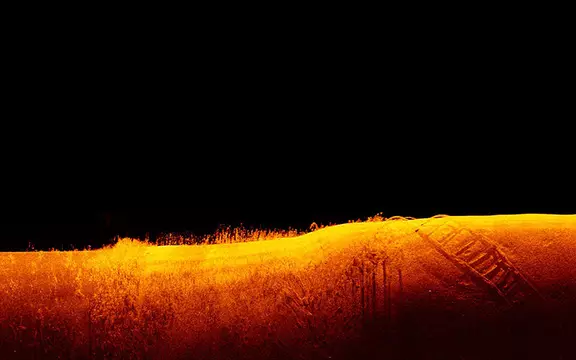

The Element™ CHIRP Sonar / GPS series from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.
Bright and Rugged - Sunlight viewable displays with integrated GPS/GNSS receiver.
Superior HyperVision™ - 1.2 megahertz CHIRP sonar technology delivers much higher resolution imaging compared to conventional side and down scanning sonars.
RealVision™ 3D Built-In - Accurately identify the location of ledges, channel beds, and other contour changes.
Fast Quad-Core Processor - For instantaneous chart re-draw and sharp 3D imaging.
All-in-one Transducer - Combines HyperVision, DownVision, SideVision, RealVision, and conventional CHIRP sonar channels into one simple installation.
With support for Raymarine LightHouse Charts with Fishing Hot Spots®, Navionics, and C-MAP charts.
Raymarine RealBathy™ personal sonar mapping and Navionics SonarCharts Live support.
Optimized for fishing, the LightHouse Sport OS is fast and easy-to-learn.
An oversized waypoint key for marking your favorite spots and three user-programmable keys.
Element HV is available in 7", 9" and 12" display sizes and with bundled cartography options.
SKU: E70532
$999.00
Price inclusive of VAT
Prices subject to change
7" Display
SKU: E70534
$1,199.00
Price inclusive of VAT
Prices subject to change
9" Display
SKU: E70536
$1,999.00
Price inclusive of VAT
Prices subject to change
12" Display
| Physical | |
|---|---|
| Dimensions (Trunnion mount) | Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in) Element 9: Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in) Element 12: Height: 225.19 mm (8.87 in), Width: 373.40 mm (14.70 in), Depth: 149.40 mm (5.88 in) |
| Dimensions (surface mount) | Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in) Element 9: Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in) Element 12: Height: 215.20 mm (8.47 in), Width: 357.20 mm (14.06 in), Depth: 149.40 mm (5.88 in) |
| Weight (display only) | Element 7: 1.0 Kg (2.2lbs) Element 9: 1.3 Kg (2.86lbs) Element 12: 2.0 Kg (4.4lbs) |
| LCD | |
|---|---|
| Size (diagonal): | Element 7: 7.0" Element 9: 9.0" Element 12: 12.1" |
| Resolution | Element 7: WVGA 800 x 480 Element 9: WVGA 800 x 480 Element 12: WXGA 1280 x 800 |
| Ratio | Element 7: 5:3 Element 9: 5:3 Element 12: 8:5 |
| Viewing angle (T / B / L / R): | Element 7: 50° / 60° / 70° / 70° Element 9: 50° / 70° / 70° / 70° Element 12: 89° / 89° / 89° / 89° |
| Type | Element 7: TN (Twisted Nematic) Element 9: TN (Twisted Nematic) Element 12: IPS (In-Plane Switching) |
| Color depth | 24-bit |
| Maximum Illumination | 1500 nits / 1500 cd/m2 |
| Power | |
|---|---|
| Operating voltage range | 8 V dc to 16 V dc (protected up to 32 V dc) |
| Power consumption (Approximate @ 12 V dc) | Element 7: 15 Watts Element 9: 20 Watts Element 12: 25 Watts |
| Nominal supply voltage | 12 V dc |
| Fuse requirements | Inline fuse = 5 A, Thermal breaker = 3 A |
| LEN (NMEA 2000 Load Equivalency Number) | 1 (Based on 9 V dc nominal voltage) |
| Data connections | |
|---|---|
| SeaTalkng / NMEA 2000 | 1 x DeviceNet female connector built into power cable |
| 2.4 GHz Wi-Fi | 1 x 802.11/b/g/n |
| Transducer | 1 x 15-pin HyperVision connector |
| Hypervision | |
|---|---|
| 350 kHz (Standard) range | RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft) each side, DownVision = 0.6 M (2 ft) to 183 m (600 ft) |
| 1.2 MHz (Hyper) range | RealVision 3D = 0.6 M (2 ft) to 38 m (125 ft), SideVision = 0.6 M (2 ft) to 38 m (125 ft) each side, DownVision = 0.6 M (2 ft) to 38 m (125 ft) |
| Sonar channels | Conical high CHIRP sonar, RealVision 3D (Hyper), RealVision 3D (Standard), SideVision (Hyper), SideVision (Standard), DownVision (Hyper), DownVision (Standard) |
| 200 kHz range | Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft) |
| Frequencies | 1.2 MHz CHIRP, 350 kHz CHIRP, 200 kHz CHIRP |
| Power | 1.2 MHz (Hyper) = 1000 W, 350 kHz (Standard) = 700 W, 200 kHz (Conical high CHIRP sonar) = 100 W |
| Storage | |
|---|---|
| External | 1 x MicroSDXC card slot |
| Environmental | |
|---|---|
| Operating temperature range | -25°C (-13°F) to +55°C (+131°F) |
| Storage temperature range | -30°C (-22°F) to +70°C (+158°F) |
| Humidity | up to 93% @ 40°C (+104°F) |
| Waterproof rating | IPx6, IPx7 |
| GPS Receiver | |
|---|---|
| Position Accuracy | Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
| Geodetic Datum | WGS-84 (alternatives can be selected on the MFD) |
| Channels | Multiple - ability to simultaneously track up to 28 satellites |
| Antenna | Internal - Ceramic chip mounted near top of unit |
| GNSS compatibility | GPS, GLONASS, Beidou |
| SBAS compatibility | EGNOS, GAGAN, MSAS, QZSS, WAAS |
| Signal Acquisition | Automatic |
| Almanac Update | Automatic |
| Receiver IC Sensitivity | 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
| Operating frequency | 1574 MHz to 1605 MHz |
| Cold start | < 2 minutes |
| Conformance | |
|---|---|
| Standards | EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand C-Tick compliance level 2, Canadian RSS 247, FCC rules part 15 |
| 1 | Element display |
| 2 | Surface mount gasket |
| 3 | Suncover |
| 4 | Trunnion knobs (x 2) |
| 5 | Documentation |
| 6 | Trunnion bracket |
| 7 | Surface mount stainless steel fixings x 4 (M4 x 40 machine screw, M4 flat washer, M4 locking nut) |
| 8 | Power / NMEA 2000 cable (includes 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead). |
