Axiom 2 Pro RVM
No matter where the day takes you, you’ll be able to handle the unexpected in stride thanks to superior awareness at every turn.

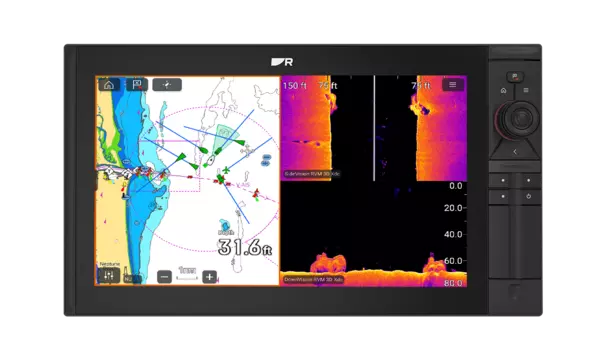

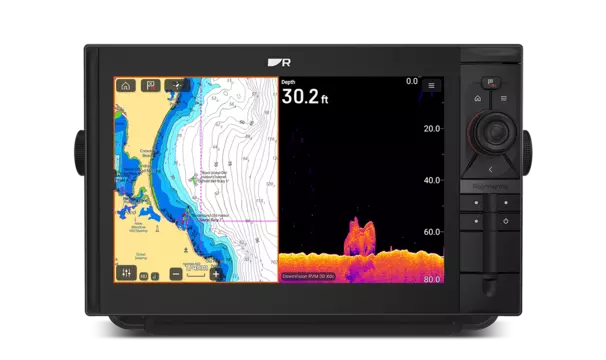

Axiom® 2 Pro combines chartplotter, fish finder, radar, autopilot and video into a powerful all-in-one fishing system. Plan your next offshore adventure and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Designed for discovering the deep, Axiom 2 Pro RVM chartplotters feature an integrated multi-channel fish finder with RealVision® MAX CHIRP sonar technology.
Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Enjoy faster, seamless integration of GPS, fishfinder, radar and video thanks to the super intuitive LightHouse operating system.
Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors and excellent sunlight visibility.
Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.
Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.
Customize your Axiom 2 Pro with interchangeable keypads that allow you to choose between a dedicated Evolution autopilot keypad or user-programable soft keys.
RealVision MAX ups your fishfinding game with increased range, better resolution and sharper fish targets.

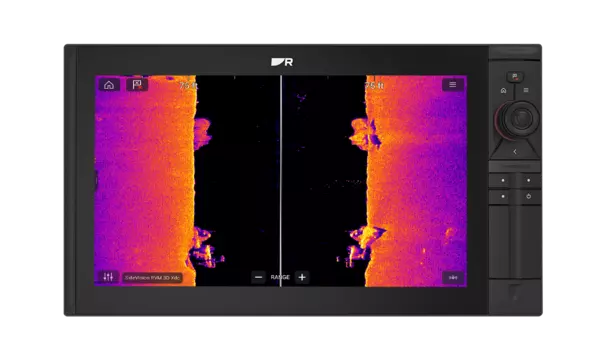

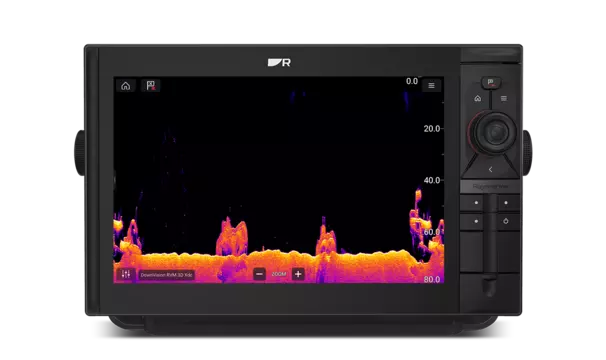

Axiom 2 Pro models with RealVision MAX feature built-in CHIRP DownVision, SideVision, RealVision 3D and 600-watt traditional CHIRP fishfinder for coastal fishing, plus a 1kW dual channel CHIRP fishfinder for deep water.
RealVision MAX Transom Mount Transducer for Axiom 2 Pro and RVM-1600 sonar systems.
RealVision MAX Stainless Steel Through Hull Transducer & Pairs for Axiom 2 Pro RVM & RVM-1600 Sonars
Bronze, 1kW with Tilted Element Technology for Axiom Pro-series and CHIRP sonar modules
Bronze, 1kW for Axiom Pro series and CHIRP Sonar modules
Created from official hydrographic chart sources, you can trust LightHouse Charts for maximum readability, intuitive navigation, and superior quality.
Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.
FLIR thermal imaging and Axiom 2 Pro turn night into day, keeping you safe and secure so you can boat with confidence.
Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video.
Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines.
Stream Netflix and Spotify, connect and control Fusion, JL Audio, and Rockford Fosgate marine audio systems, or view Axiom 2 Pro on the big screen with HDMI output.
Add the YachtSense Link router and keep your system connected onboard and off with the Raymarine mobile App.
Built-in Wi-Fi lets you view and control your Axiom 2 Pro on your phone or tablet with the Raymarine Mobile App.
Expand the capabilities of our Axiom 2 Pro with third-party apps from our marine technology partners.
Two RayNet Ethernet ports and NMEA2000 give you the flexibility to create an Axiom 2 Pro system with multiple Axiom displays, fish finder modules, marine radar, autopilot, thermal, and video cameras.
Quantum 2 18" solid-state radar dome with CHIRP Pulse Compression and Doppler collision avoidance technology.
55 Watt open array with CHIRP Pulse Compression technology. Available with your choice of a 3, 4, or 6-foot antenna array. 55 watt solid-state radar is equivalent to a 6 kW magnetron radar, with range performance up to 72 NM.
110 Watt open array with CHIRP Pulse Compression technology. Available with your choice of a 3, 4, or 6-foot antenna array. This powerful 110-watt solid-state radar is equivalent to a 12kW magnetron radar, offering extended range performance up to 96 NM.
Marine thermal camera with active gyro-stabilization
Mini day/night IP camera with an ultra-wide field of view designed for Raymarine Axiom chartplotters.
4G enabled marine router with GPS, Wi-Fi, Raynet and digital input/output ports
For subscription-based SiriusXM Marine weather, Fish Mapping and entertainment
The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver with a built-in antenna splitter.
Premium VHF with a built-in AIS receiver and loudhailer. Remote station capable, with wired and wireless microphone options
Autopilot for small to medium powerboats with hydraulic steering
Autopilot for medium to large powerboats with hydraulic steering
Multifunction Instrument with digital, analog, and graphical displays of depth, speed, wind, and more.
Axiom 2 Pro MAX are available in 9, 12 or 16-inch screen sizes.
Was: $6,549.99
NOW: $5,999.99
16" Display
Includes preloaded LightHouse Charts North America chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
Was: $6,499.99
NOW: $5,949.99
16" Display
Charts not included in this kit
Was: $4,449.99
NOW: $3,999.99
12" Display
Includes preloaded LightHouse Charts North America chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
Was: $4,399.99
NOW: $3,949.99
12" Display
Charts not included in this kit
9" Display
Charts not included in this kit
9" Display
Includes preloaded LightHouse Charts North America chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
9" Display
Includes preloaded LightHouse Charts Mediterranean chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
9" Display
Includes preloaded LightHouse Charts Northern Europe chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
9" Display
Includes preloaded LightHouse Charts Northern Europe chart card
Includes preloaded LightHouse Charts Western Europe chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
12" Display
Includes preloaded LightHouse Charts Mediterranean chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
12" Display
Includes preloaded LightHouse Charts Northern Europe chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
12" Display
Includes preloaded LightHouse Charts Western Europe chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
16" Display
Includes preloaded LightHouse Charts Mediterranean chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
16" Display
Includes preloaded LightHouse Charts Northern Europe chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
16" Display
Includes preloaded LightHouse Charts Western Europe chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
| Connections | |
|---|---|
| Ethernet connection | 2 RayNet (10/100/1,000 Mbits/s) ports |
| NMEA 2000 connection | DeviceNet connector |
| Wi-Fi | Multiband - 2.4GHz, and 5Ghz 802.11b/g/n |
| Bluetooth | v4.0 |
| Accessory connection | USB Micro B |
| Internal storage | 64GB Solid State |
| External storage | 2 front mounted MicroSDXC card slots |
| Digital Video and Audio | HDMI Out Micro connector type D |
| Analog video connections | BNC Analog video input (on power cable) |
| Analog audio connections | RCA connectors via power cable |
| External GPS anternna | TNC connector |
| Physical | |
|---|---|
| Dimensions (Trunnion mounted) | Axiom 2 Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in) Axiom 2 Pro 12: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in) Axiom 2 Pro 16: Height: 281.20 mm (11.10 in), Width 482.50 mm (19.00 in), Depth (including cables): 233.4 mm (9.18 in) |
| Dimensions (Surface/Flush mounted) | Axiom 2 Pro 9: Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in) Axiom 2 Pro 12: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in) Axiom 2 Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in) |
| Power | |
|---|---|
| Power consumption @ 12 V dc | Axiom Pro 9: 33.12 W Axiom Pro 12: 29.88 W Axiom Pro 16: 42.36 W |
| Power consumption @ 24 V dc | Axiom Pro 9: 30.96 W Axiom Pro 12: 28.8 W Axiom Pro 16: 40.8 W |
| Operating voltage range | 8 V dc to 32 V dc |
| Nominal supply voltage | 12 V dc / 24 V dc |
| Off current @ 12 V dc | 11 mA (0.13 W) |
| Off current @ 24 V dc | 18 mA (0.43 W) |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
| Current | 5 A |
| Fuse rating | 15 A |
| Environmental | |
|---|---|
| Operating temperature | -25°C to +55°C (-13°F to 131°F) |
| Storage temperature | -30°C to +70°C (-22°F to 158°F) |
| Relative humidity | Up to 93% @ 40°C (104°F) |
| Waterproof rating | IPx6, IPx7 |
| LCD | |
|---|---|
| Size (diagonal) | Axiom 2 Pro 9: 9.0" Axiom 2 Pro 12: 12.1" Axiom 2 Pro 16: 15.6" |
| Ratio | Axiom 2 Pro 9: 16:9 Axiom 2 Pro 12: 16:9 Axiom 2 Pro 16: 16:10 |
| Resolution | Axiom 2 Pro 9: 1280 x 720 HD Axiom 2 Pro 12: 1280 x 800 WXGA Axiom 2 Pro 16: 1920 x 1080 FHD |
| Viewing angle | Top 88° / Bottom 88° / Left 88° / Right 88° |
| Type | IPS (In-Plane Switching) |
| Color depth | 24-bit |
| Illumination | Axiom 2 Pro 9 1300 nits / 1300 cd/m2 |
| Number of simultaneous touches | 1 to 16 |
| GPS (GNSS) | |
|---|---|
| Position Accuracy | Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
| Geodetic Datum | WGS-84 (alternatives can be selected on the MFD) |
| Satellite Differential Type (SBAS) | WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) |
| Channels | Track up to 28 satellites simultaneously |
| Antenna | Internal - Ceramic chip mounted near top of unit |
| GNSS compatibility | GPS, Galileo, GLONASS, Beidou |
| Almanac Update | Automatic |
| Signal Acquisition | Automatic |
| Receiver IC Sensitivity | 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
| Operating frequency | 1574 MHz to 1605 MHz |
| Refresh rate | 10 Hz (10 times per second) |
| Time to first fix from cold start | < 2 minutes |
| Sonar | |
|---|---|
| Power output | RealVision MAX high CHIRP sonar channel: 600 Watts RMS Traditional dual channel CHIRP channel: 1kW RMS |
| Sonar channels | RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz) 1kW CHIRP Port: 42 - 250kHz (Transducer dependent) |
| RealVision MAX Depth range | 25-pin RealVision type connector: High CHIRP conical sonar: 366 m (1200 ft), DownVision: 183 m (600 ft), SideVision: 91 m (300 ft), RealVision 3D: 91 m (300 ft) |
| 1 kW Depth range | 11 pin 1kW connector: : 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer) |
| Connections | 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, and 1 x 11-pin 1kW transducer connector |
Axiom 2 Pro box contents
| 1 | Display unit |
| 2 | User Configurable Keypad |
| 3 | Suncover |
| 4 | Gasket |
| 4 | Trunnion knobs (x 2) |
| 5 | Trunnion bracket (Axiom 2 Pro 9 and 12 Only) |
| 7 | Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3)) |
| 8 | DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft) |
| 9 | RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft) |
| 10 | Mounting fixings x4 |
| 11 | Documentation |
| 12 | Power/Video/Audio cable 1.5 m (4.92 ft) |
