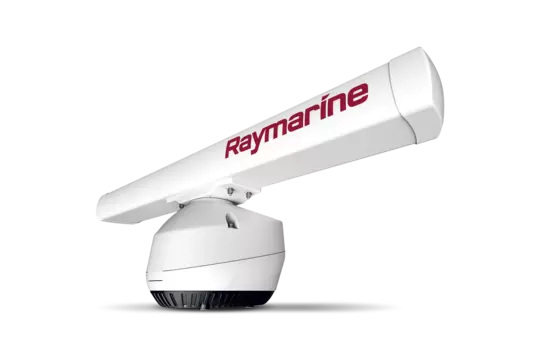

Magnum 4 kW

4 kW open array radar. Available with your choice of a 4 or 6-foot antenna array. Magnetron radar with up to 72 NM range. Trusted X-band magnetron radar performance in all conditions.

Product Options
Magnum 4 kW
Extended Range Performance

Extended Range Performance

Magnum 4 kW open array radar is a premium magnetron radar for boaters looking for extended range and improved target resolution when compared to radome radars. Available with either a 4-foot or 6-foot open array antenna, Magnum 4 kW delivers precision radar imaging across all ranges.

Choose the 4-foot model for a compact open array radar solution or step up to even better resolution and range performance with the 6-foot array option.

Magnum 4 kW Models

Magnum 4 kW radars are available with a 4 or 6 foot open array

4kW Magnum w 4ft Array and 15m RayNet Radar Cable

SKU: T70408
4kW Magnum w 4ft Array and 15m RayNet Radar Cable
  • Includes 4 foot array and pedestal

  • Include VCM100 voltage convertor

  • Includes 15 meter cable kit

Magnum 4 kW 6 foot Radar Pack

SKU: T70410
Magnum 4 kW 6 foot Radar Pack
  • Includes 6 foot array and pedestal

  • Include VCM100 voltage convertor

  • Includes 15 meter cable kit

Magnum 4ft array only.

SKU: E70490
Magnum 4ft array only.
  • 4 foot array only

Magnum 6ft array only

SKU: E70491
Magnum 6ft array only
  • 6 foot array only

4kW Magnum Pedestal w VCM100

SKU: E70484
4kW Magnum Pedestal w VCM100
  • Include VCM100 voltage convertor

Magnum 4 kW Resources

Power
Power consumption

Typical: < 70 W

Power consumption

Standby: < 30 W

Power consumption

Sleep: < 1.2 W

Conformance
Standards

USA: 47CFR FCC Part 2 & Part 80 Certificate of Approval, Canada: RSS138 Iss. 1 Technical Acceptance Certificate, European Union & EFTA: Radio Equipment Directive 2014/53/EU Certificate of Opinion, Australia / New Zealand: ACMA Declaration of Conformity Compliance level 3

Environmental
Relative humidity

Up to 95% @ 35°C (95°F)

Waterproof rating

IPx6

Maximum wind speed

85 knots

Operating temperature

-25°C to +55°C (-13°F to 131°F)

Radar
Maximum range scale

72 nautical miles

Beamwidth (horizontal)

4' Array: 1.85° (nominal)

6' Array: 1.15° (nominal)

Peak power output

4 kW

Standby mode

Magnatron heater: ON, Magnetron control: ON, All other services: OFF

Polarization

Horizontal

Transmit frequency

9405 MHz ±20 MHz

Warm-up time

75 seconds

Beamwidth (vertical)

25° (nominal)

Rotation speed

24 RPM / 48 RPM

Standby to transmit

2.5 seconds

Physical
Dimensions

Height (including antenna): 430 mm (16.9 in), Length: 409 mm (16.1 in), Width: 314 mm (12.3 in)

Dimensions

4 ' Array: 1306 mm (51.4 in)

6' Array: 1918 mm (75.7 in)

Weight

29 kg (63.93 lbs)

Compatibility
Axiom 2 XL - 16", 19", 22" and 24" models

Yes

Axiom 2 Pro - 9", 12" and 16" RVM and -S variants

Yes

Axiom+ - 7", 9" and 12" RV and chartplotter variants

Yes

Element - 7", 9" and 12" HV and -S variants

No

Axiom XL - 16", 19", 22" and 24" models

Yes

Axiom Pro - 9", 12" and 16" RVX and -S variants

Yes

Axiom - 7", 9" and 12" RV and chartplotter variants

Yes

gS-Series - gS95, gS125 and gS165

Yes

eS-Series - eS95, eS97, eS98, eS125, eS127, eS128, eS165

Yes

e-Series - e7, e7D, e95, e97, e125, e127, e165

Yes

c-Series - c95, c97, c125, c127

Yes

a-Series - a75, a77, a78, a95, a97, a98, a125, a127, a128

Yes

E-Series Widescreen - E90W, E120W, E140W

Yes

C-Series Widescreen - C90W, C120W, C140W

Yes

G-Series Classic - GPM400

Yes

E-Series Classic - E80, E120

Yes

C-Series Classic - C70, C80, C120

No1

Notes

1 - C-Series Classic chartplotter displays are only compatible with analog radar scanners, discontinued.

Magnum radars are available with a transmitter power of either 4kW or 12kW. The 4kW output is great for collision avoidance, coastal navigation, and long-range weather detection. The 12kW output offers significantly higher power output which allows the radar to better detect and track small, weak, and distant targets. The 12kW option is extremely popular with coastal and offshore anglers for its long-range bird finding capability. The 12kW version is also an excellent choice for boats venturing far offshore, or who operate regularly in high seas or inclement weather.

Magnum radars with a 4kW transmitter have a maximum range scale of 72 nautical miles. 12kW models have a maximum range scale of 96 nautical miles. Like with any radar, the range at which you will be able to detect and track targets is related to the height of the scanner above the waterline and the height of the target being tracked.

All Magnum radar models come standard with Bird Mode, which optimizes the radar’s transceiver for detecting sea bird activity.

All radars transmit electromagnetic energy at microwave frequencies which can be harmful, particularly to the eyes. For safety, we recommend that any radar be installed above head height, out of range of personnel and passengers.

Radar scanners should be mounted as high as practical above the waterline. Radar operates as a line-of-sight device, so a high mounting position will give better long-range performance. The radar is also best mounted above the head-level of crew and passengers, to avoid mechanical danger and minimize exposure to electromagnetic radiation.

The requirements for installation and operation of Raymarine radars may be subject to individual licensing of the equipment, operator, or vessel. You are strongly encouraged to check with the requirements of the licensing authority of your national administration. Your local Raymarine dealer can also advise on local and national licensing requirements.

Raymarine radars are ideal for use on rivers and inland waterways due to their excellent long and short-range target detection characteristics. The radar scope can also be presented in a heading-up presentation with a 1/3 or 2/3 offset that gives the radar operator maximum look-ahead visibility in these kinds of waterways.

In most cases, installing a new radar scanner will require the change-out of the radar scanner interconnect cable but there are exceptions to this. For example, Raymarine offers an adapter cable (A80308) that allows a Quantum or Quantum 2 radar to use the interconnect cable from any Digital or HD Digital radar scanner. Other options may be available. Please consult with your Raymarine installer or technical support for options.

In most cases new Raymarine scanners will fit on mounts that previously held another Raymarine radar scanner. The mounting pattern for radar scanners has been standardized for many years. There may be mechanical exceptions to this if changing from a radome-style scanner to an open-array due to the larger physical size and weight.

Raymarine radars are excellent tools for monitoring the weather. They can readily detect rain squalls, thunderstorms, and other atmospheric precipitation at long distances. Detecting and tracking weather at long distances can enable you to avoid harsh weather and make your time on the water safer and more enjoyable.

Radome-style radar scanners are often mounted to a sailboats main mast or foremast using a specially designed mast mount. The mount is typically rivited or bolted to the mast and offers a secure mounting point with excellent line-of-sight for the radar to operate. Optional guards are normally available to provide extra protection to the scanner from the impact of sails or rigging, if needed. These mounts are offered by Raymarine and from 3rd parties like Edson, Questus, ScanStrut, and SeaView

Raymarine radar scanners come with a standard 2-year warranty covering both parts and labour. If you register your newly purchased radar on Raymarine.com within 90 days purchase your warranty coverage is extended to 3 years at no additional cost.

Most marine radar scanners are intended to be used with chartplotters or multifunction displays from the same manufacturer, with some small exceptions. Raymarine’s Quantum radar is compatible with the Orca Core 2 navigation system, as well as the The Q Experience Q2 Display

What's in the box illustration
What's in the box?

The following parts are supplied with the Magnum 4 kW radar.

1

Pedestal

2

Documentation

3

Denso paste

4

Lifting sling

5

Studs x 4

6

Plain washers x 4

7

Spring washers x 4

8

Nuts x 8

9

Cable tightening tool

10

Radar-RayNet & power cable (15 m 49.21 ft))

11

VCM100 mounting screws x 2

12

VCM100 cable clamp mounting screws x 3

13

VCM100 Voltage Converter Module

14

VCM100 cable clamp

15

Antenna (4 ft or 6 ft)

16

Threaded alignment guides x 4

17

Plain washer x 4

18

Spring washers x 4

19

Nuts x 4
