AIS350 - Receiver Only

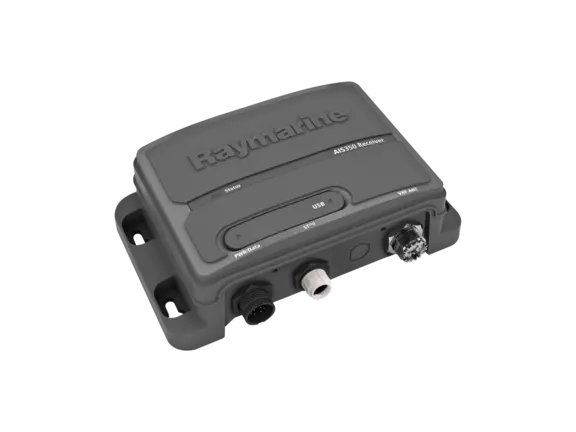

Raymarine’s AIS350 is a receive-only AIS device that allows you to receive and display the AIS data transmissions from nearby vessels.

Product Options
AIS350 - Receiver Only

See clearly with AIS350

Operating in the VHF maritime band, the Raymarine AIS system enables the wireless exchange of navigation status between vessels and shore-side traffic monitoring centres. Commercial ships, ocean-going vessels and recreational boats equipped with Raymarine AIS transmitters broadcast AIS messages that include the vessel's name, course, speed and current navigation status.

Raymarine’s AIS350 is a receive-only AIS device that allows you to receive and display the AIS data transmissions from nearby vessels right on your Raymarine multifunction display’s radar or chartplotter screen.

Sailing Yacht with sails up

AIS350 Key Features

  • Dual channel receivers – AIS vessel monitoring of class A and B transmissions.
  • SeaTalkNG networking for simple integration with Raymarine C-Series Widescreen, E-Series Widescreen and G-Series systems.
  • USB 2.0 port for diagnostics.
  • Built-in NMEA multiplexer simplifies integration with legacy Multifunction Displays, VHF radios and 3rd party devices.
  • Front-facing multicolor LED indicator for system status and diagnostics.
  • Rugged, water resistant (IPX 2) enclosure designed for easy installation.

Buddy Tracking with AIS350

The AIS350 supports Raymarine's exclusive Buddy Tracking feature when used with Raymarine multifunction displays. This allows you to save AIS targets of interest with a special icon and "friendly" name. Buddy tracking makes it easy to spot the boats of friends and family out on the water, or to identify other vessels-of-interest with ease.


Networking your AIS with SeaTalk

Raymarine’s AIS350 receiver and AIS650 Class B Automatic Identification (AIS) transceiver brings boaters best-in-class features and performance in a package that’s 50% smaller than previous generation AIS transmitters.

Both the AIS350 and AIS650 are engineered for seamless integration with Raymarine multifunction displays and offer multiple connection options including SeaTalkNG, NMEA2000, NMEA0183 and USB.

This unprecedented flexibility makes the AIS350 and the AIS650 easy to integrate with all of your onboard electronics including MFD’s, instruments, PC based navigation systems and more.

AIS350 Models

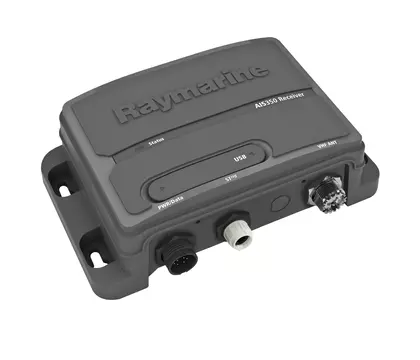

AIS350 Dual Channel Receiver

SKU: E32157
AIS350 Dual Channel Receiver

AIS 350 Resources

Receiver specification
Waterproofing

IPX2

Operating temperature range

-15˚C to +55˚C (5˚F to 131˚F)

Storage temperature range

-20˚C to +75˚C (-4˚F to 167˚F)

Humidity

Up to 93% at 40˚C (104˚F)

Nominal supply voltage

12 V to 24 V dc

Operating voltage range

9.6 V to 31.2 V dc (rated supply -20%, +30%)

Peak current in normal operation

<200mA

Average power consumption

<2W

LEN (Refer to SeaTalkng reference manual for further information)

1

Fuse / Breakers

In-line fuse
• 2 A

Receivers

2 receivers

Receiver band 1

161.975 MHz fixed channel

Receiver band 2

162.025 MHz fixed channel

Receiver sensitivity

–107 dBm

Weight

280 grams

Connectors

• VHF Antenna — SO-239 co–axial connector
• SeaTalkng
• NMEA0183 HS — stripped wires
• NMEA0183 LS — stripped wires
• Power — stripped wires
• AIS silent — stripped wires
• USB — NMEA0183
