    EV-100 Wheel Pilot

    Wheel drive autopilot for small to medium sailboats

    Product Options
    EV-100 Wheel Pilot
    Wheel steered sail boat

    Autopilot for Wheel Steered Sailboats

    The EV-100 Wheel Pilot is a complete autopilot solution for wheel-steered sailboats. Designed for do-it-yourself installations, the EV-100 Wheel Pilot's externally mounted drive mounts in the cockpit, attached directly to the spokes of the boat's steering wheel. The EV-100 Wheel Pilot delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-100 actuator control unit. EV-100 Wheel Pilot systems are available with p70s autopilot control head, or choose a system without a control head and use a Raymarine Axiom chartplotter for full autopilot control.

    EV-100 Wheel Pilot Key Features

    • Rated for wheel-steered sailboats up to 16,500 lbs (7,500kg) displacement
      • Tech Tip:  Remember to always take your vessel's fully laden displacement weight into account (often 20% above the designed displacement).
    • Designed for cockpit installations.
    • SeaTalkNG/NMEA2000 for networking with sailing instruments and chartplotters
    • Requires no complicated setup or autopilot calibration.
    • Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics
    EV-1 intelligent sensor core

    EV-100 Wheel Pilot Pack Options

    EV100 Wheel Pilots are available as a complete system-in-a-box kit, in a no-controller variant for use with Axiom's built-in pilot controls, or as a no drive unit kit for upgrading older wheel drive systems to the latest Evolution autopilot technology.

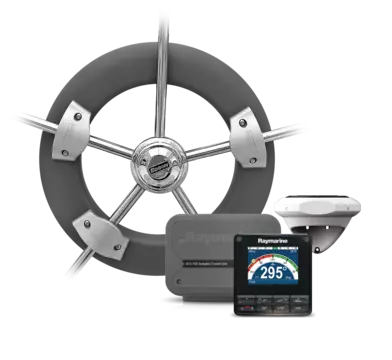

    EV-100 Wheel Pilot Complete Kit

    SKU: T70152
    EV-100 Wheel Pilot Complete Kit

    • Includes EV-100 Wheel Drive

    • Includes p70s control head

    • Includes ACU-100

    Find a Dealer

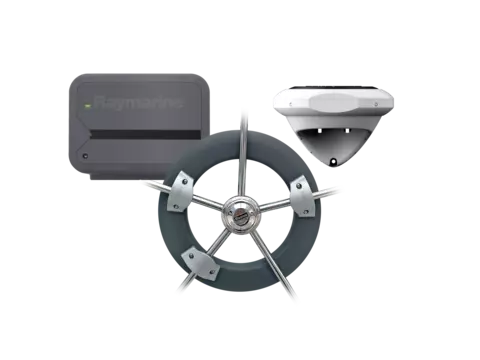

    EV-100 Wheel Pilot Kit

    SKU: T70248
    EV-100 Wheel Pilot Kit

    • Control head sold separately

    • Includes ACU-100

    • Includes EV-100 Wheel Drive

    Find a Dealer

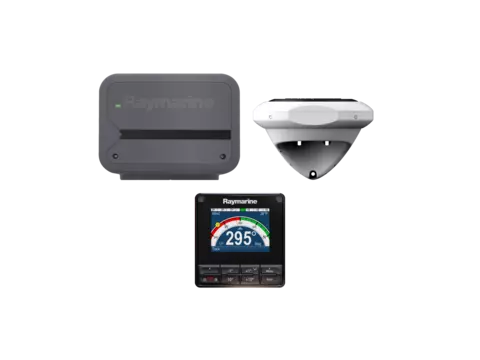

    EV-100 Wheel Pilot Kit- No Drive

    SKU: T70281
    EV-100 Wheel Pilot Kit- No Drive

    • Drive Unit not included.  For retrofitting to existing installations

    • Includes p70s control head

    • Includes ACU-100

    Find a Dealer

    EV-100 Wheel Pilot Packs Resources

    Output
    Drive current output

    Maximum continuous 7 A at supply voltage
    Physical
    Dimensions

    Width: 180 mm (7.1 in), Height: 140 mm (5.5 in), Depth: 52 mm (2.0 in)
    Weight

    0.6 kg (1.32 lbs)
    Environmental
    Relative humidity

    Max. 93%
    Waterproof rating

    Connector panel: IPx2, Drive electronics: IPx6
    Storage temperature

    -30 °C to +70 °C (-22 °F to 158 °F)
    Operating temperature

    -20 °C to +55 °C (-4 °F to 131 °F)
    Conformance
    Standards

    Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2
    Power
    Power consumption (standby)

    300 mA (12 V)
    Nominal supply voltage

    12 V dc
    Operating voltage range

    10.8 V dc to 15.6 V dc
    LEN (NMEA 2000 Load Equivalency Number)

    1
    What's in the box?


    1

    ACU unit
    2

    Documentation
    3

    Screws (pan head type)
    4

    SeaTalkng spur to bare wires cable 1 m (3.3 ft)
