EV-200 Power Pilot

Autopilot for medium to large powerboats with hydraulic steering

Product Options
EV-200 Power Pilot
Outboard fishing boat with Raymarine gear

Autopilot System for Hydraulic Outboards and Inboards

The EV-200 Power Pilot is a complete autopilot solution for powerboats with hydraulic steering.  Ideal for many outboard or inboard powered boats, the EV-200 delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-200 actuator control unit.

The complete system pack includes a Type 1 hydraulic autopilot pump that is compatible with outboard and inboard hydraulic steering cylinder capacities between 80cc – 230cc (4.9 in3–14in3).  EV-200 Power Pilot systems are available with p70Rs autopilot control head, ACU-200 actuator control unit, EV-1 heading sensor and a 12 Volt Type 1 hydraulic pump.

Raymarine autopilot owners with an existing Type 1 hydraulic drive can upgrade to Evolution technology with Evolution Power Pilot kit without the type 1 drive included.

EV-200 Power Pilot Key Features

  • Requires no complicated setup or autopilot calibration.
  • Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics
  • Exclusive Raymarine Hydro-Balance™ technology adjusts for elasticity in the hydraulic steering systems and compensates automatically to prevent steering oscillation. The result is precise course-keeping and no drive-unit hunting.
  • The EV-200 autopilot steers so accurately you will save fuel and get to your destination faster.
EV-1 intelligent sensor core

EV-200 Power Pilot Packs

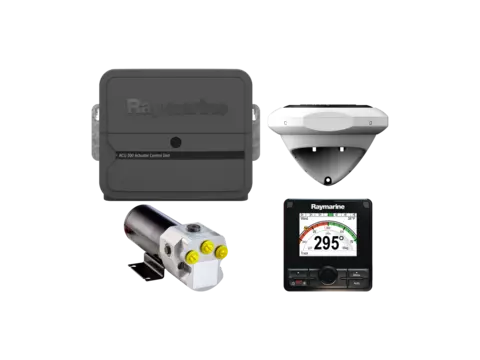

EV-200 Power Pilot with Type 1 Pump

SKU: T70157
EV-200 Power Pilot with Type 1 Pump

  • Includes Type 1 hydraulic pump

  • Includes p70Rs control head

  • EV-1 Sensor Core Included

  • Includes ACU-200 actuator control unit

Find a Dealer

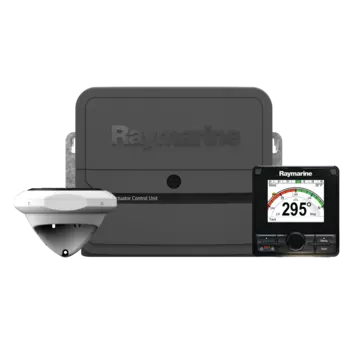

EV-200 Power Pilot (without drive)

SKU: T70156
EV-200 Power Pilot (without drive)

  • Type 1 drive unit sold separately

  • Includes p70Rs control head

  • EV-1 Sensor Core Included

  • Includes ACU-200 actuator control unit

Find a Dealer

EV-200 Power Resources

Output
Drive current output

Maximum continuous 15 A at supply voltage
Physical
Dimensions

Width: 180 mm (7.1 in), Height: 140 mm (5.5 in), Depth: 52 mm (2.0 in)
Weight

0.6 kg (1.32 lbs)
Environmental
Relative humidity

Max. 93%
Waterproof rating

Connector panel: IPx2, Drive electronics: IPx6
Storage temperature

-30 °C to +70 °C (-22 °F to 158 °F)
Operating temperature

-20 °C to +55 °C (-4 °F to 131 °F)
Conformance
Standards

Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2
Power
Power consumption (standby)

300 mA (12 V)
Nominal supply voltage

12 V dc
Operating voltage range

10.8 V dc to 15.6 V dc
LEN (NMEA 2000 Load Equivalency Number)

1
What's in the box?


1

ACU unit
2

Documentation
3

Screws (pan head type)
4

SeaTalkng spur to bare wires cable 1 m (3.3 ft)
