    EV-400 Sail Pilot

    Autopilot for large sailboats with mechanical steering

    Product Options
    EV-400 Sail Pilot

    EV-400 Sail Overview

    The EV-400 Sail Pilot is the perfect solution for large sailboats with mechanical steering.

    The EV-400 Sail Pilot kit includes the p70s color, pushbutton autopilot controller, EV-1 sensor core, ACU-400 actuator control unit, rotary rudder feedback unit, and an Evolution cabling kit.

    Choose any Type 2 or Type 3 mechanical linear, rotary or hydraulic linear autopilot drive unit to complete the system.

    EV-400 Sail Pilot Key Features

    • Suitable for large sailboats with mechanical steering systems
    • Works Type 2 or Type 3 mechanical linear, rotary, or hydraulic linear drives
    • Rotary rudder feedback sensor kit included
    • SeaTalkNG/NMEA2000 for networking with instruments and chartplotters
    • Requires no complicated setup or autopilot calibration.
    • Includes the EV-1 sensor core. An intelligent 9-axis heading sensor that uses aerospace guidance technology to adapt and evolve to changing sea conditions and vessel dynamics
    EV-1 intelligent sensor core

    EV-400 Sail Pilot

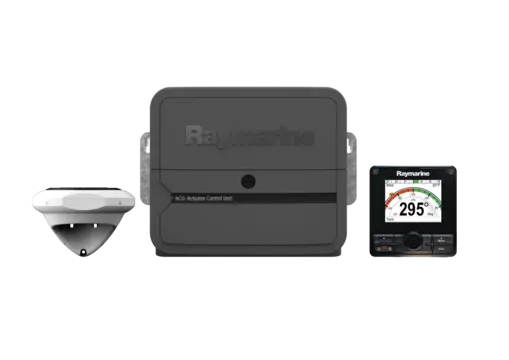

    The EV-400 Sail autopilot pack includes the EV-1 heading sensor, ACU400 actuator control unit, p70s color autopilot controller, rudder reference unit and an Evolution SeaTalkng cabling kit.

    EV-400 Sail Pilot Pack (suitable for Type 2 & 3 drives)

    SKU: T70161
    EV-400 Sail Pilot Pack (suitable for Type 2 & 3 drives)

    $3,499.99 (USD)

    • Works with Type 1, Type 2 or Type 3 mechanical or hydraulic drives.

    • Includes p70s control head

    • EV-1 Sensor Core Included

    • Includes ACU-400 actuator control unit

    • Rotary rudder reference sensor included

    Find a Dealer

    EV-400 Sail Resources

    Output
    Drive clutch output

    Up to 2.0 A continuous, selectable between 12 / 24 V
    Drive current output

    Maximum continuous 15 A at supply voltage
    Physical
    Dimensions

    Width: 285 mm (11.2 in), Height: 211.5 mm (8.3 in), Depth: 64.5 mm (2.5 in)
    Weight

    2.2 kg (4.84 lbs)
    Environmental
    Relative humidity

    Max. 93%
    Waterproof rating

    Drip resistant
    Storage temperature

    -30 °C to +70 °C (-22 °F to 158 °F)
    Operating temperature

    -20 °C to +55 °C (-4 °F to 131 °F)
    Conformance
    Standards

    Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2
    Power
    Power consumption (standby) - main power supply

    300 mA (12 / 24 V)
    Power output to SeaTalkng bus

    3 A @ 12 V (fuse protected at 3 A)
    Power consumption (standby) - SeaTalkng bus

    20 mA (12 V)
    Nominal supply voltage

    12 / 24 V dc
    Operating voltage range

    10.8 V dc to 31.2 V dc
    LEN (NMEA 2000 Load Equivalency Number)

    1
    What's in the box?


    1

    ACU unit
    2

    Documentation
    3

    Screws (pan head type)
    4

    SeaTalkng spur to bare wires cable 1 m (3.3 ft)
