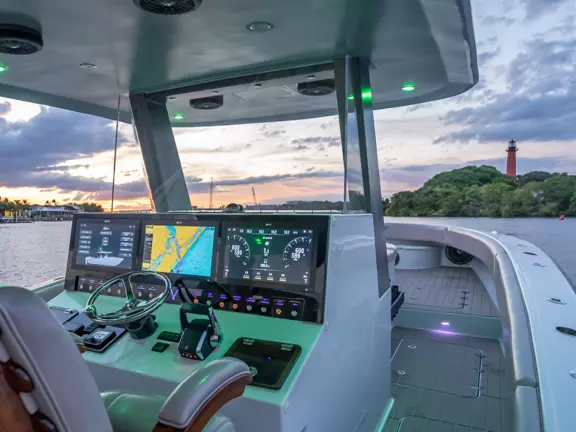

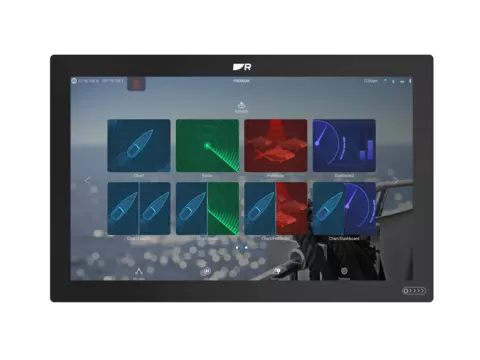

The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.

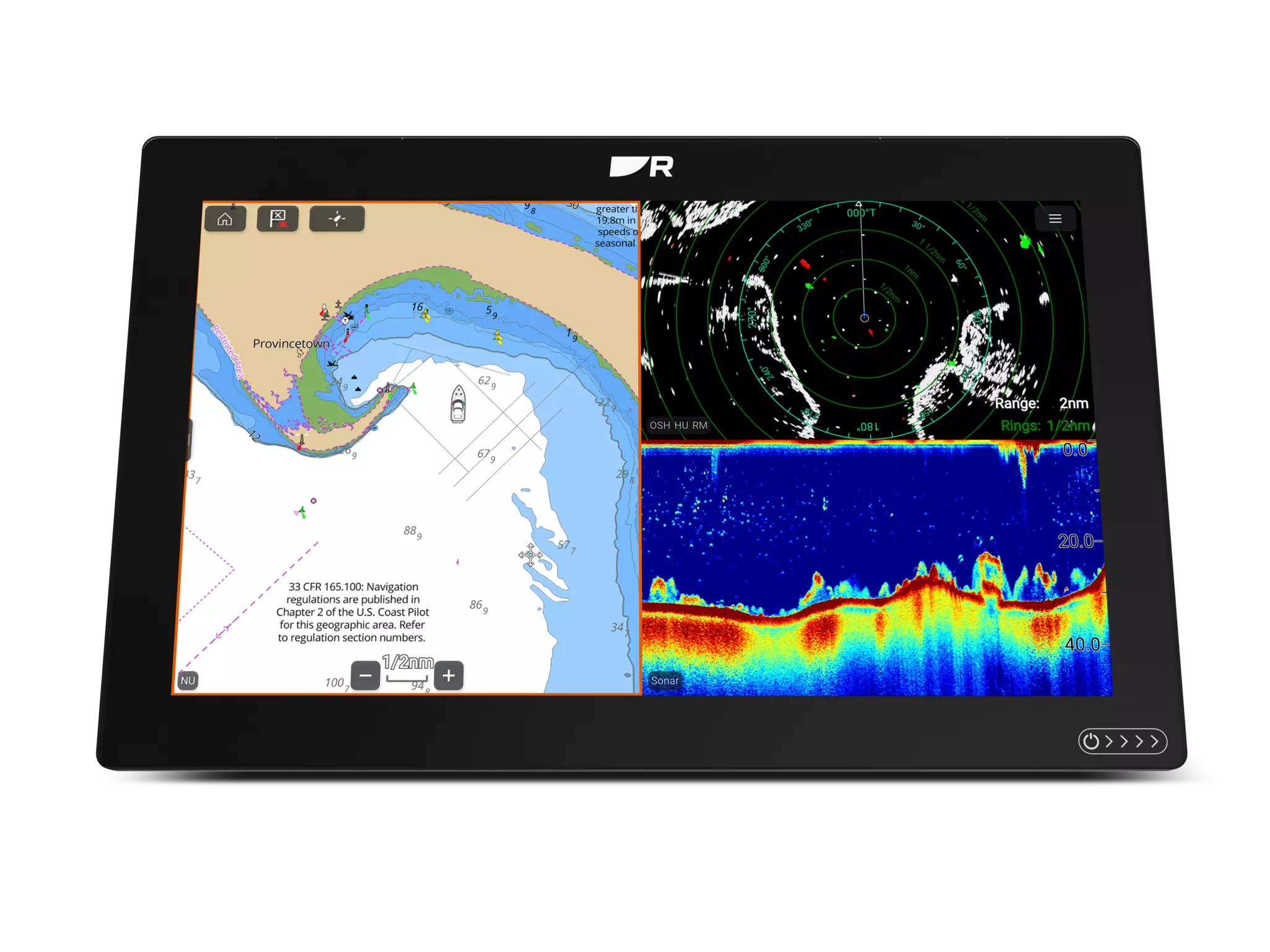

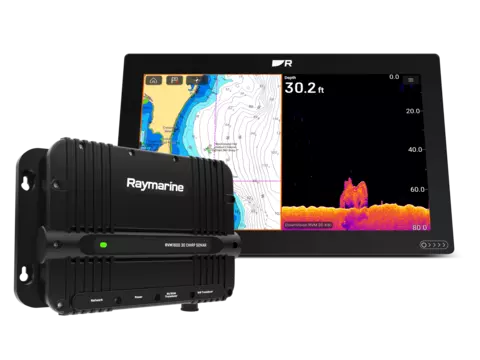

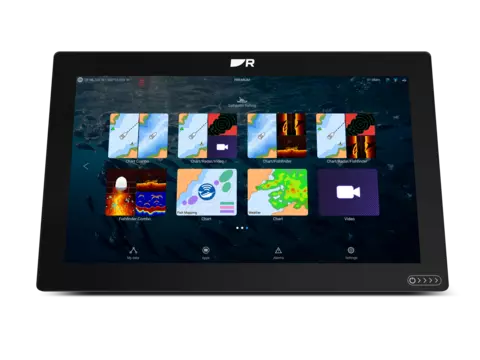

Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.
Get underway and do everything faster
64 GB for waypoints, apps, and LightHouse Charts
Faster video frame rates and 30% faster chart rendering

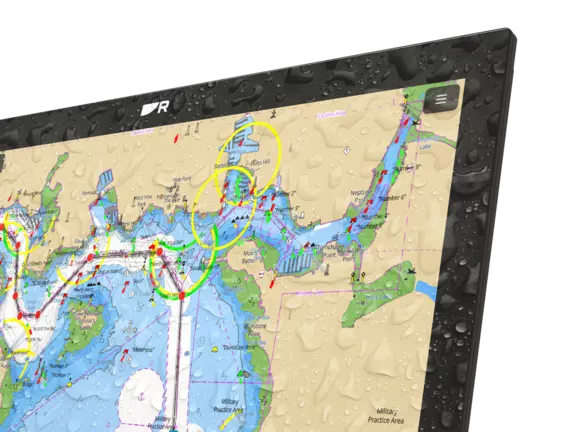

Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.
Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.

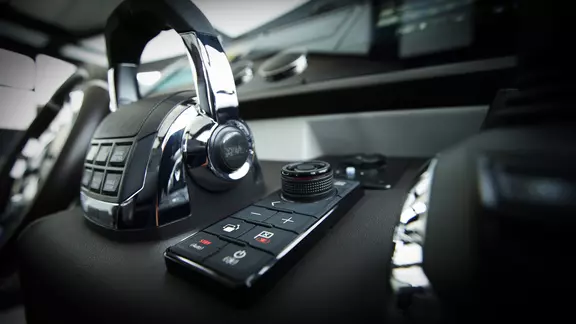

Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.

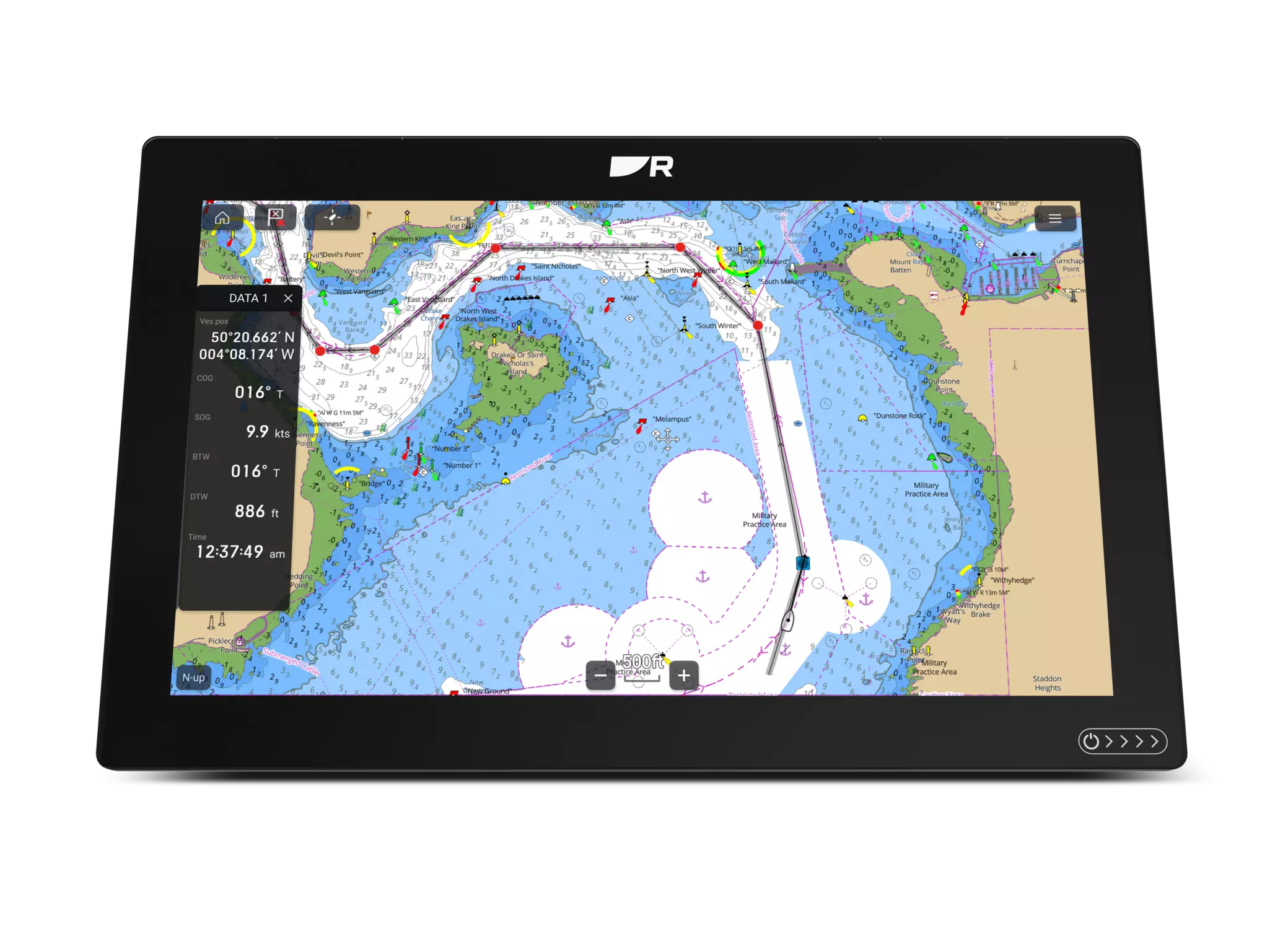

Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality.

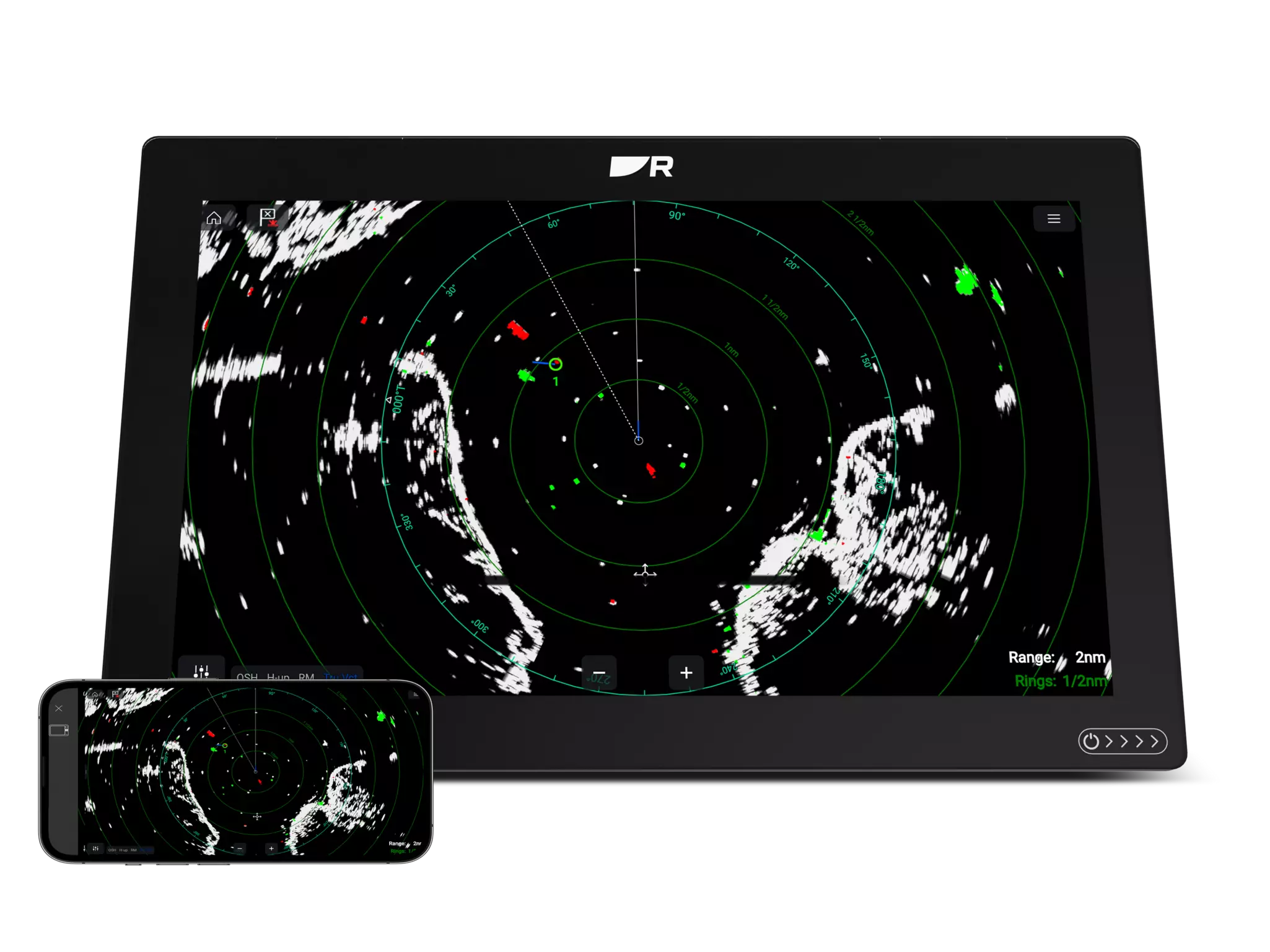

Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.

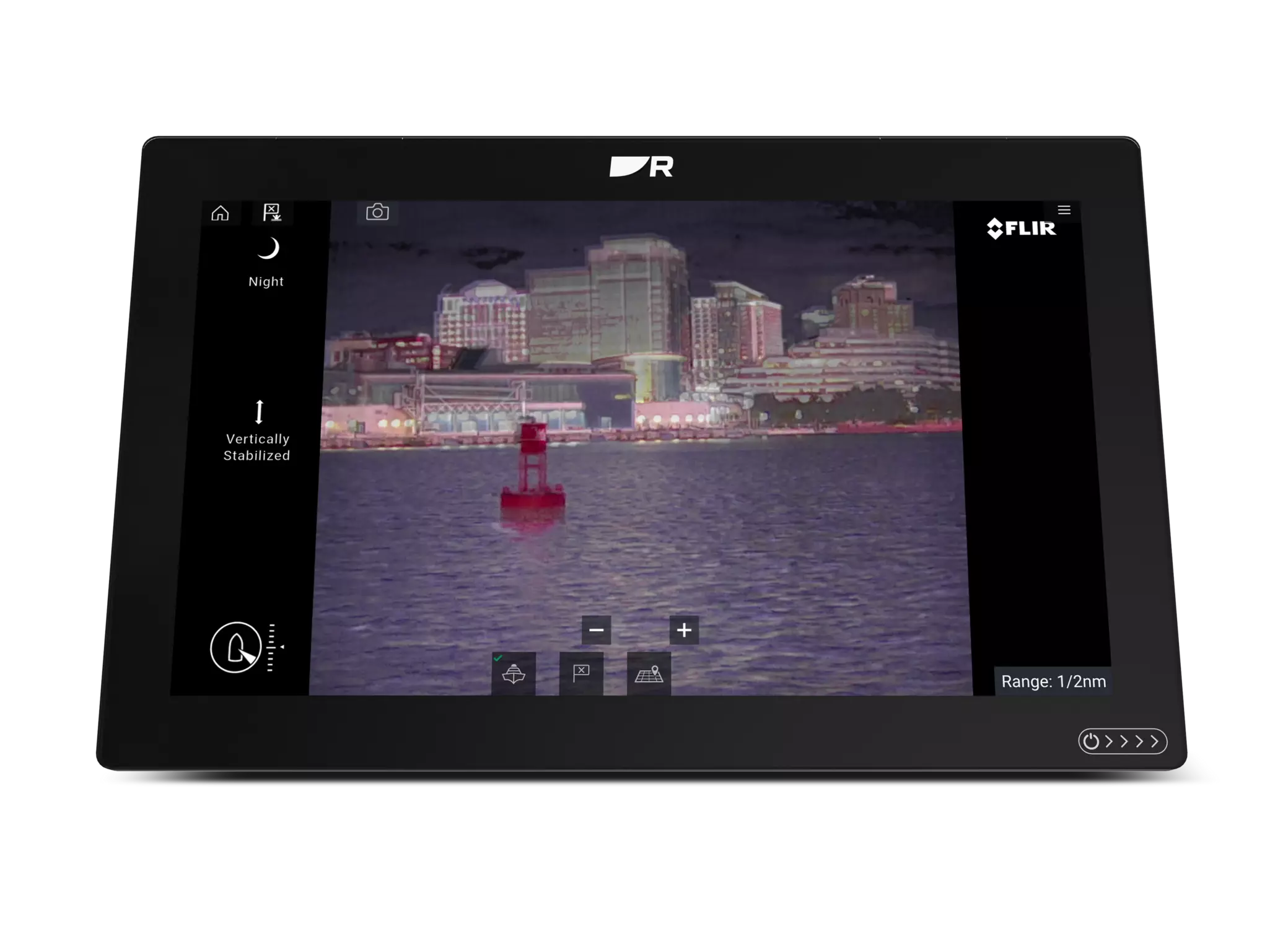

FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence.

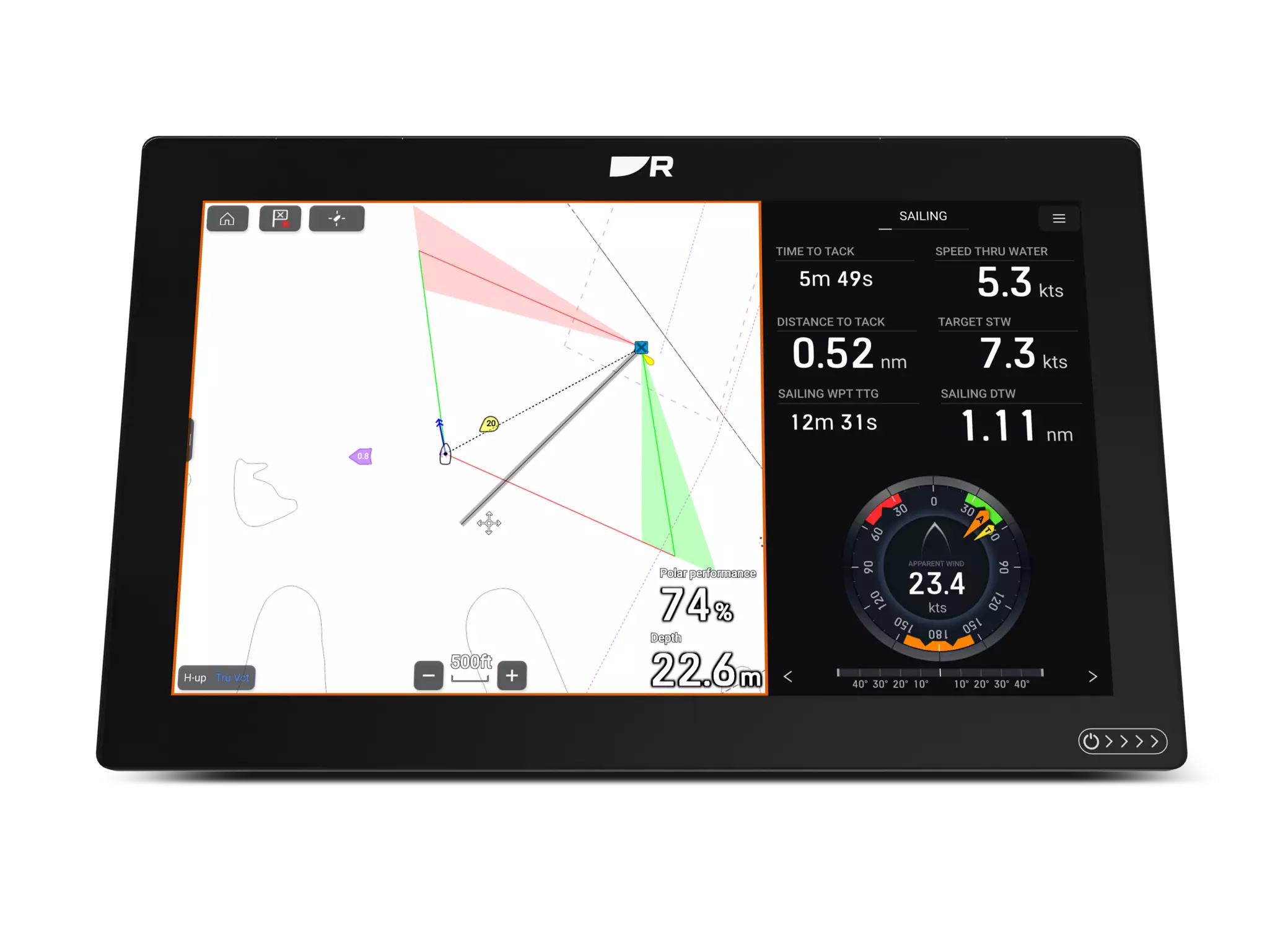

Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers.

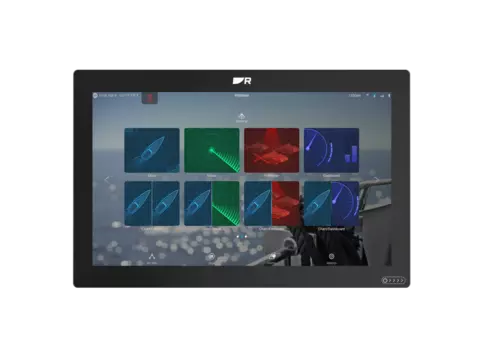

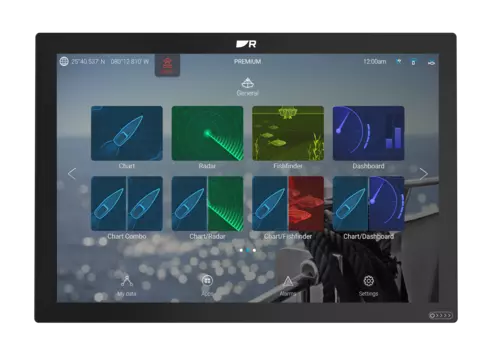

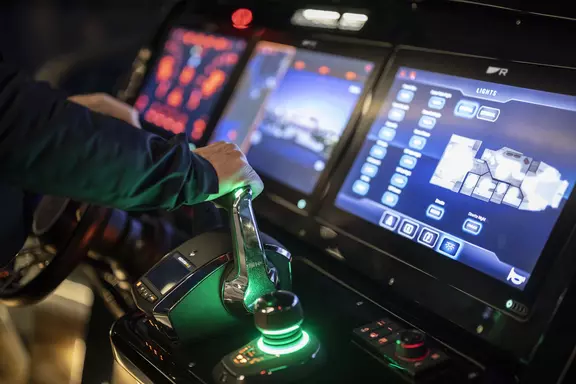

Axiom 2 XL's intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display

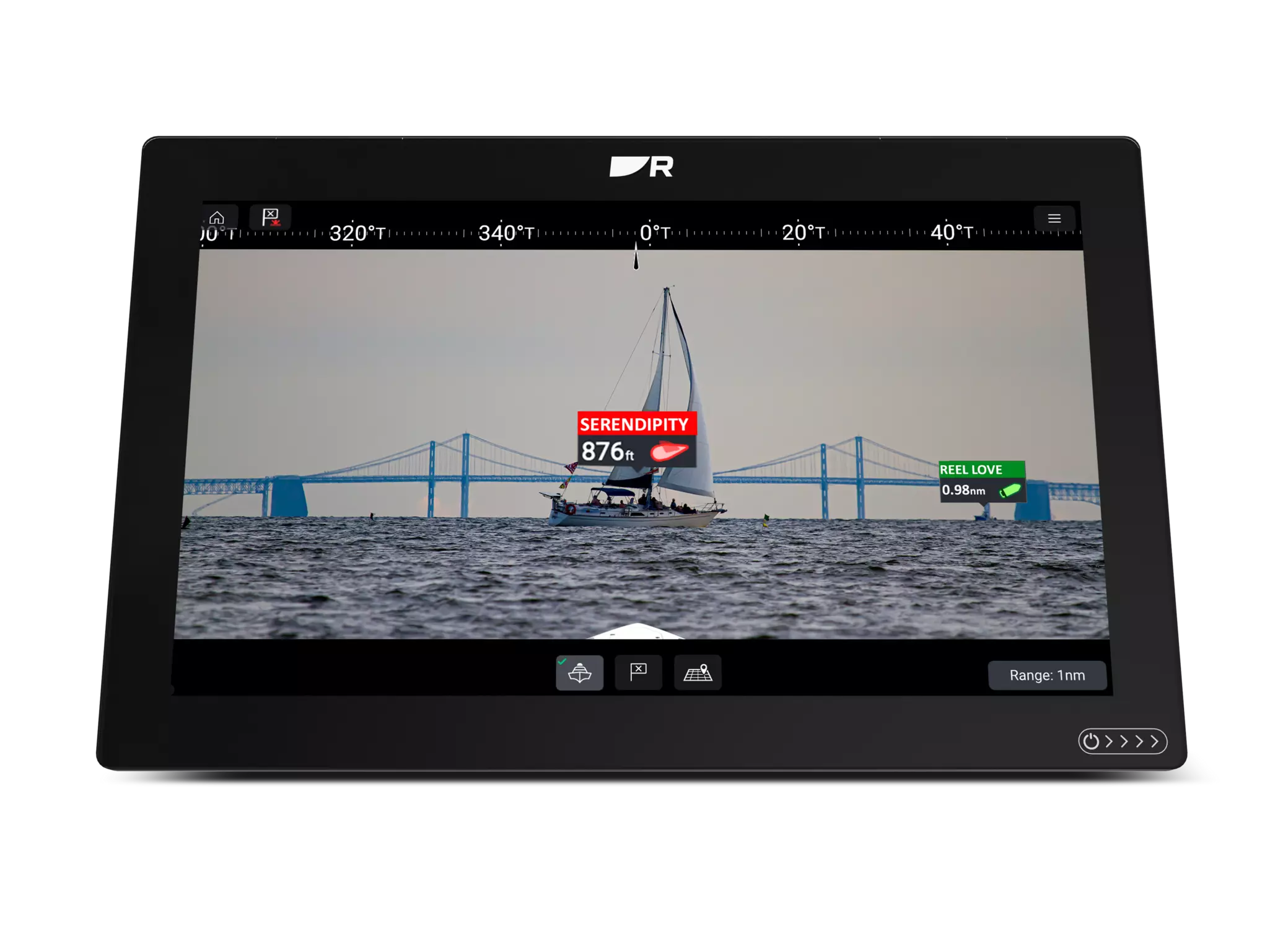

Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video.

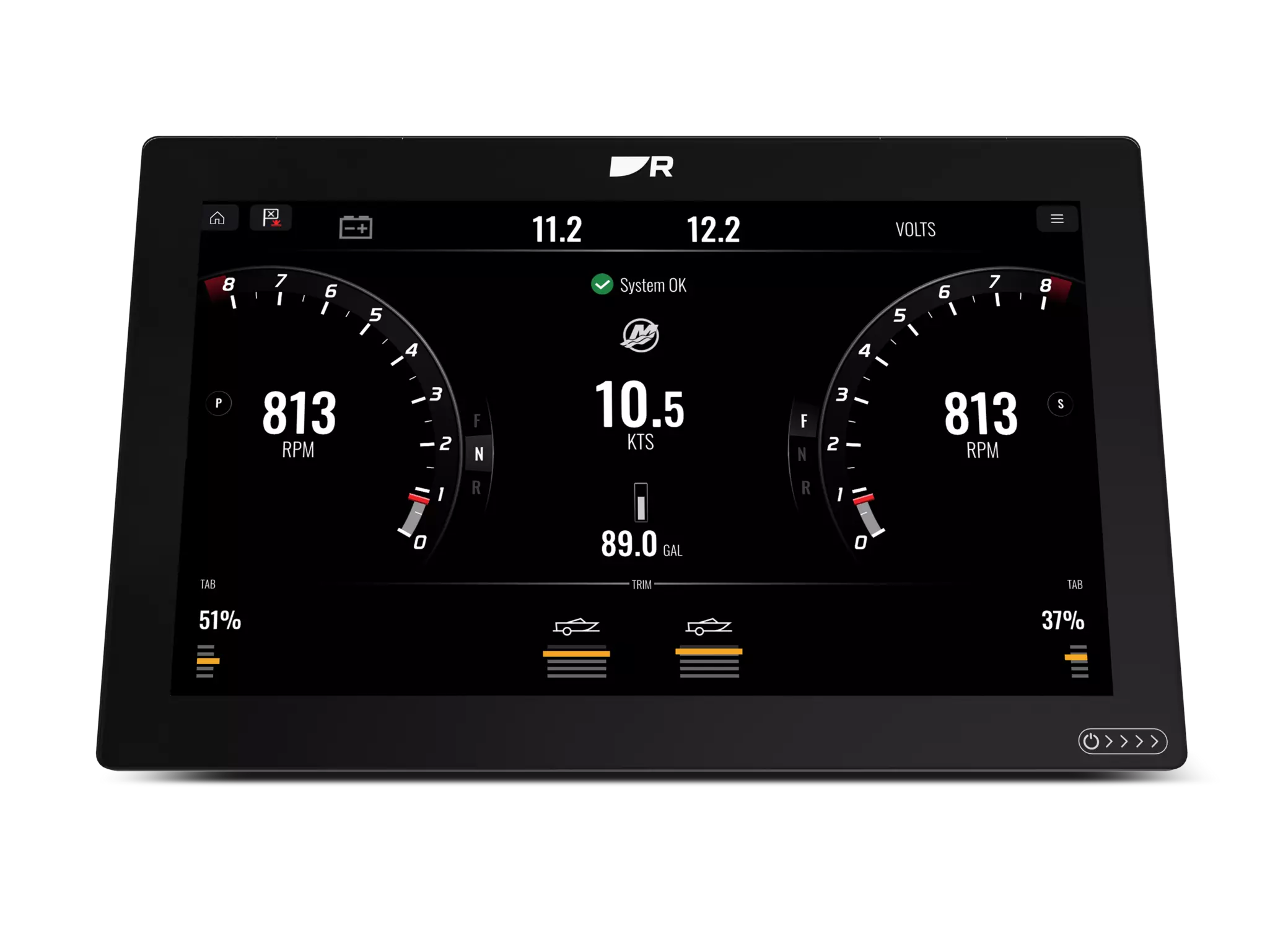

Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines.
Stream Netflix and Spotify, connect and control Fusion, JL Audio, and Rockford Fosgate marine audio systems, or view Axiom 2 XL on the big screen with HDMI output.
Add the YachtSense Link router and keep your system connected onboard and off with the Raymarine mobile App.
Built-in Wi-Fi lets you view and control your Axiom 2 XL on your phone or tablet with the Raymarine Mobile App.

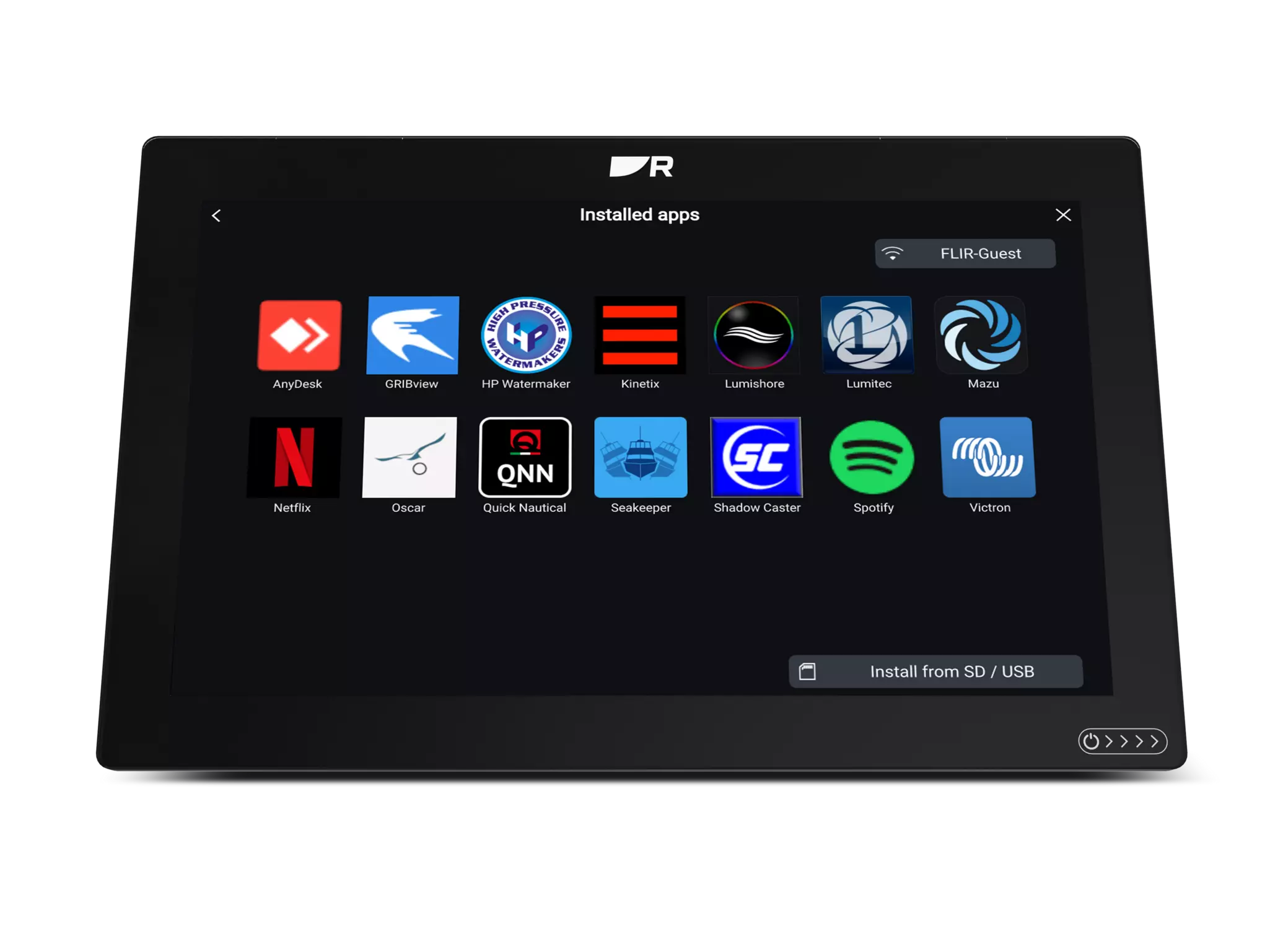

Expand the capabilities of our Axiom 2 XL with third-party apps from our marine technology partners. Explore LightHouse Apps for Axiom

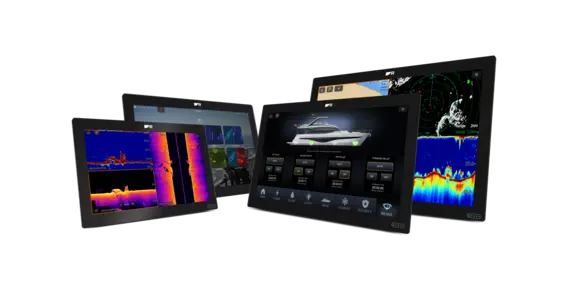

Three RayNet Ethernet POE ports, NMEA2000, HDMI input, HDMI Output, USB, and remote keypad options give you the power to design an Axiom 2 XL glass bridge with multiple Axiom displays, fish finder modules, marine radar, autopilot, thermal, and video cameras.
The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver with a built-in antenna splitter.
Sleek, modular, black box VHF Radio Systems allowing for discreet mounting and dashboard space saving.
Multifunction Instrument with digital, analog, and graphical displays of depth, speed, wind, and more.

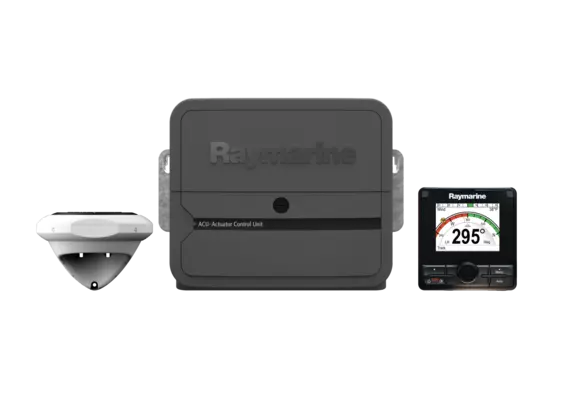

Autopilot for large powerboats with hydraulic steering
The RMK-10 remote keypad provides full control of the Axiom range of chartplotters from any mounting location.
Premium multispectral marine cameras with active gyro-stabilization
110 Watt open array with CHIRP Pulse Compression technology. Available with your choice of a 3, 4, or 6-foot antenna array. This powerful 110-watt solid-state radar is equivalent to a 12kW magnetron radar, offering extended range performance up to 96 NM.
Mini day/night IP camera with an ultra-wide field of view designed for Raymarine Axiom chartplotters.
4G enabled marine router with GPS, Wi-Fi, Raynet and digital input/output ports
Quantum 2 18" solid-state radar dome with CHIRP Pulse Compression and Doppler collision avoidance technology.
For subscription-based SiriusXM Marine weather, Fish Mapping and entertainment

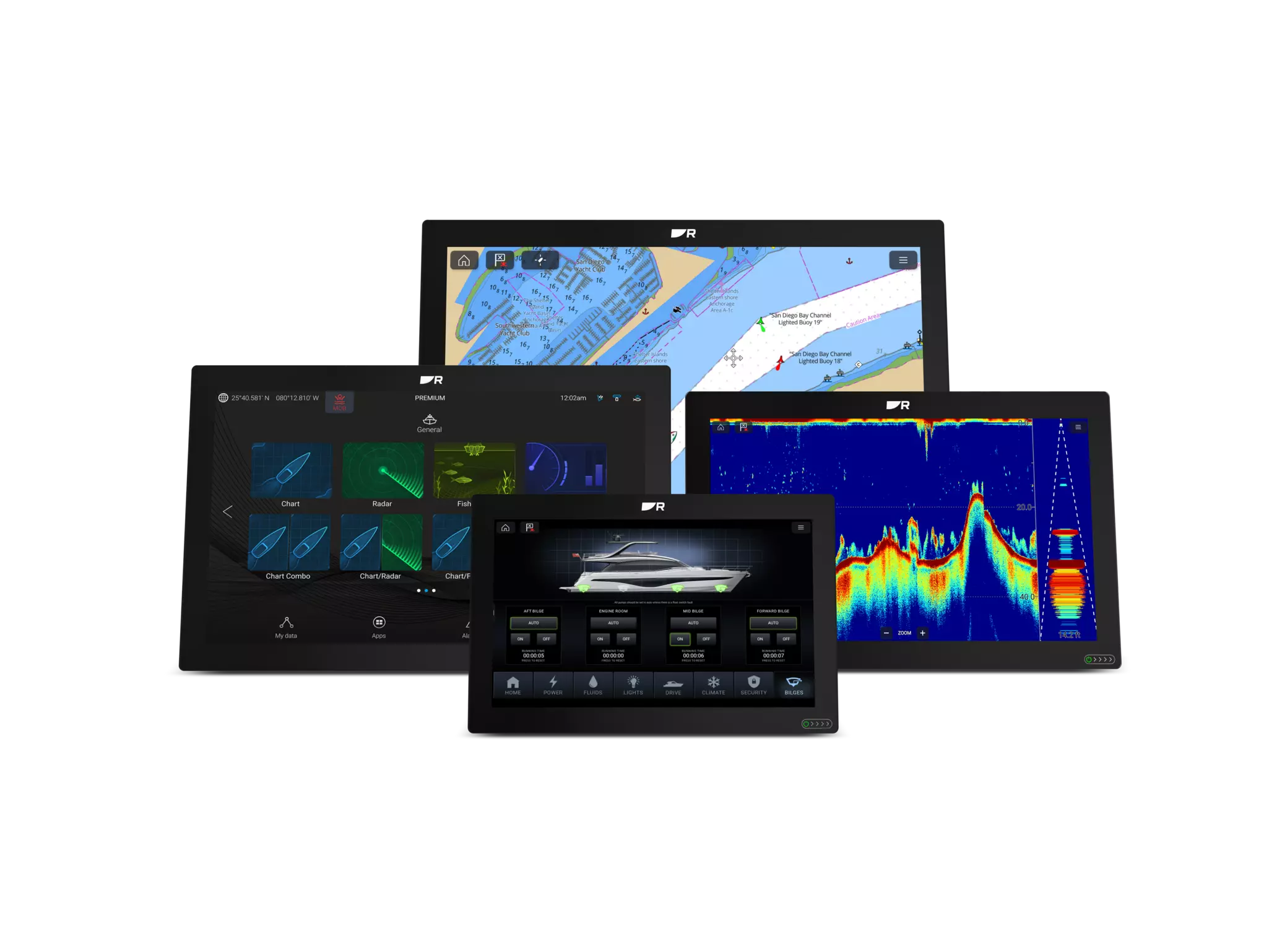

Available in 16, 19, 22 and 24-inch display sizes
$5,999.99 (USD)
16" Display
$5,499.99 (USD)
16" Display
$5,699.99 (USD)
16" Display
Remote chart card reader, alarm module and cable kit included
19" Display
19" Display
Remote chart card reader, alarm module and cable kit included
22" Display
22" Display
Remote chart card reader, alarm module and cable kit included
24" Display
24" Display
Remote chart card reader, alarm module and cable kit included
| Environmental | |
|---|---|
| Operating temperature | -25°C to +55°C (-13°F to 131°F) |
| Storage temperature | -30°C to +70°C (-22°F to 158°F) |
| Relative humidity | up to 93% @ 40°C (104°F) |
| Waterproof rating | IPx6, IPx7 |
| Physical | |
|---|---|
| Dimensions | Axiom 2 XL 16: Height: 248.22 mm (9.77 in), Width, 394.9 mm (15.55 in), Depth (including cables): 174.95 mm (6.89 in) Axiom 2 XL 19: Height: 289.44 mm (11.40 in), Width, 461.78 mm (18.18 in), Depth (including cables): 174.95 mm (6.89 in) Axiom 2 XL 22: Height: 326.33 mm (12.85 in), Width, 533.56 mm (21.00 in), Depth (including cables): 180.75 mm (7.12 in) Axiom 2 XL 24: Height: 386.84 mm (15.23 in), Width, 578.40 mm (22.77 in), Depth (including cables): 177.39 mm (6.98 in) |
| Weight | Axiom XL 16: 5.9 kg (13 lbs) Axiom XL 19: 7.6 kg (16.76 lbs) Axiom XL 22: 9.9 kg (21.83 lbs) Axiom XL 24: 11.3 kg (24.9 lbs) |
| USB connection | USB-A: Touch input, USB-B: Touch output |
| Accessory connection | USB Micro B |
| GPS antenna connection | TNC type connector |
| External storage | Remote card reader required |
| Ethernet connection | PoE RayNet (10/100/1,000 Mbits/s) x 3 |
| HDMI connections | HDMI in, HDMI out |
| Audio output | Left and Right RCA connectors via Power/Video/Audio cable. |
| Analog video connections | Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2) |
| NMEA 0183 Support | Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721) |
| NMEA 2000 connection | DeviceNet connector |
| Wireless connections | Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n |
| External alarm connection | Bare-ended wires x 2 |
| Internal storage | 64 GB Solid State |
| LCD | |
|---|---|
| Resolution | Axiom 2 XL 16: 1920 x 1080 pixels Axiom 2 XL 19: 1920 x 1080 pixels Axiom 2 XL 22: 1920 x 1080 pixels Axiom 2 XL 24: 1920 x 1200 WUXGA |
| Size (diagonal) | Axiom 2 XL 16: 15.6" Axiom 2 XL 19: 18.5" Axiom 2 XL 22: 21.5" Axiom 2 XL 24: 24" |
| Illumination | Axiom XL 16: 1300 nits / 1300 cd/m2 Axiom XL 19: 1200 nits / 1200 cd/m2 Axiom XL 22: 1275 nits / 1275 cd/m2 Axiom XL 24: 1300 nits / 1300 cd/m2 |
| Viewing angle | Axiom 2 XL 16: Top 88° / Bottom 88° / Left 88° / Right 88° Axiom 2 XL 19: Top 88° / Bottom 88° / Left 88° / Right 88° Axiom 2 XL 22: Top 89° / Bottom 89° / Left 89° / Right 89° Axiom 2 XL 24: Top 89° / Bottom 89° / Left 89° / Right 89° |
| Ratio | Axiom 2 XL 16: 16:9 Axiom 2 XL 19: 16:9 Axiom 2 XL 22: 16:9 Axiom 2 XL 24: 16:10 |
| Type | IPS (In-Plane Switching) |
| Color depth | 24-bit |
| Number of simultaneous touches | 2 |
| Power | |
|---|---|
| Power consumption @ 12 V dc | Axiom 2 XL 16: 76.56 W Axiom 2 XL 19: 85.42 W Axiom 2 XL 22: 94.25 W Axiom 2 XL 24: 92.5 W |
| Power consumption @ 24 V dc | Axiom 2 XL 16: 71.53 W Axiom 2 XL 19: 73.98 W Axiom 2 XL 22: 79.46 W Axiom 2 XL 24: 77.96 W |
| Off current @ 12 V dc | PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W) |
| Off current @ 24 V dc | PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W) |
| PoE operating voltage range | 9.5 V dc to 32 V dc |
| Current | Axiom 2 XL 16: 8.56 A Axiom 2 XL 19: 8.98 A Axiom 2 XL 22: 10.12 A Axiom 2 XL 24: 10.03 A |
| Operating voltage range | 8 V dc to 32 V dc |
| Fuse rating | 15 A |
| Nominal supply voltage | 12 V dc / 24 V dc |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |

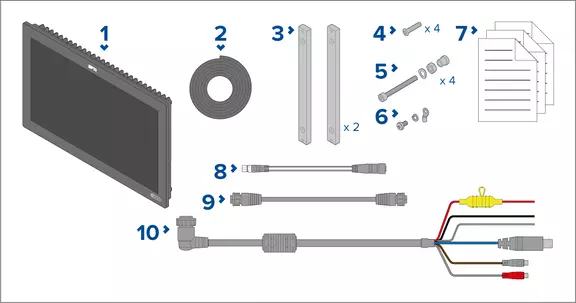

Axiom 2 XL package contents
| 1 | MFD (Chartplotter) |
| 2 | Mounting gasket tape |
| 3 | Rear mounting bars x 2 |
| 4 | Mounting bar fixings (M5x20 pozi countersunk) x 4 |
| 5 | Mounting fixings: Bolts (M5x35), Wavy washers (M5), Nuts (M5) Mounting feet x 4 |
| 6 | Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3)) |
| 7 | Documentation |
| 8 | DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft) |
| 9 | RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft) |
| 10 | Power/Video/Audio cable 1.5 m (4.92 ft) right-angled |
