Axiom®+ is a new generation of Axiom chartplotters upgraded with all-weather higher resolution displays that are 25 percent brighter than the previous generation. Axiom+ displays are equipped with a powerful quad-core processor for industry-leading speed and responsiveness.
Seamlessly redraw charts and expand Axiom+ with solid state radar, and FLIR thermal cameras or add a marine camera and navigate with ClearCruise Augmented Reality. Axiom+ features the renowned LightHouse operating system, so you can easily navigate and expand your system.
The fast and fluid chart redraw of LightHouse, Navionics, and C-MAP electronics charts provide seamless navigation. It's powered by a robust quad-core processor that enhances the device's speed and efficiency, accompanied by expanded onboard storage for personal data and apps.

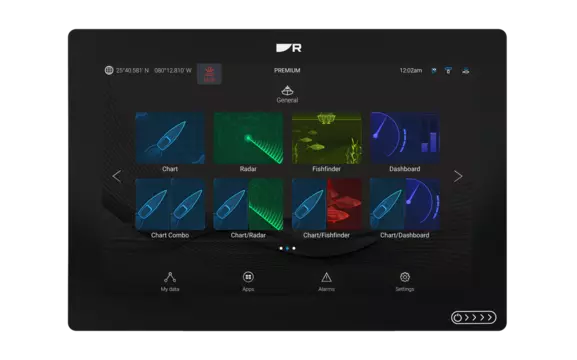

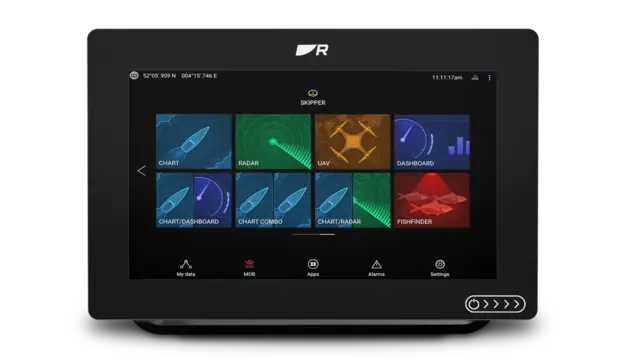

The smart and intuitive LightHouse OS simplifies navigation, making it user-friendly. Furthermore, the chartplotter is ready to expand, allowing for networking with multiple displays, radars, engines, marine cameras and more.

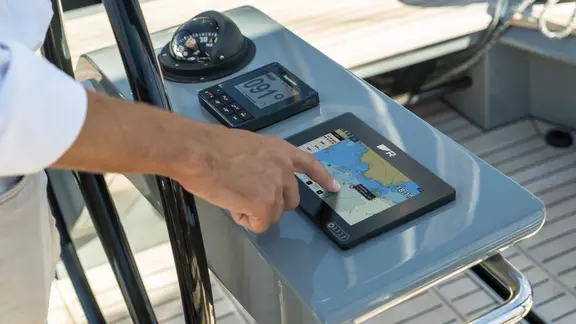

The Axiom+ has HydroTough nano-coated, impact-resistant screens to repel water, oil, smudges & offers durability under varying conditions. It guarantees touch control accuracy, even on wet screens.
Also, Axiom+ has an upgraded IPS display technology for vibrant color rendering of charts, sonar, radar, video and LightHouse color themes for varying light conditions. With a 25% brighter display at up to 1,800 nits, it provides powerful visibility in bright light.
Boost safety with an AIS (automatic identification receiver) for confident navigation in busy waters. AIS target overlays enhance your ability to navigate crowded areas, ensuring a safer journey.
Upgrade to ClearCruise Augmented Reality for an immersive experience. Visualize AIS targets, navigation aids, and waypoints in high-definition. This enhancement offers detailed view of surroundings, simplifying navigation.
For increased safety, consider adding Quantum and Cyclone radars. They provide Doppler tracking for obstacle avoidance and a comprehensive understanding of your environment, reducing collision risk and enhancing safety.
Don't take our word for it, here are some of the latest reviews of the Axiom+ chartplotter...
Axiom+ chartplotters are available in 7, 9, and 12 inch display sizes.
$2,499.99 (USD)
12" Display
Includes preloaded LightHouse Charts North America chart card
$2,449.99 (USD)
12" Display
Charts not included in this kit
7" Display
Charts not included in this kit
7" Display
Includes preloaded LightHouse Charts North America chart card
9" Display
Charts not included in this kit
9" Display
Includes preloaded LightHouse Charts North America chart card
| Physical | |
|---|---|
| Dimensions (Trunnion mounted) | Axiom+ 7: Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in) Axiom+ 9: Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in) Axiom+ 12: Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in) |
| Dimensions (Surface/Flush mounted) | Axiom+ 7: Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in) Axiom+ 9: Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in) Axiom+ 12: Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in) |
| Accessory connection | USB Micro B |
| Ethernet connection | RayNet (10/100 Mbits/s) |
| External storage | MicroSDXC card slot x 1 |
| NMEA 2000 connection | DeviceNet (male connector built into power cable) |
| Wireless connections | Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n |
| Internal storage | 16 GB Solid State (14 GB usable) |
| Transducer connection | 25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers |
| LCD | |
|---|---|
| Size (diagonal) | Axiom+ 7: 7" Axiom+ 9: 9" Axiom+ 12: 12" |
| Resolution | Axiom+ 7: WSVGA 1024 x 600 Axiom+ 9: Widescreen HD 1280 x 720 Axiom+ 12: WXGA 1280 x 800 |
| Viewing angle | Axiom+ 7: Top 85° / Bottom 85° / Left 85° / Right 85° Axiom+ 9: Top 85° / Bottom 85° / Left 85° / Right 85° Axiom+ 12: Top 88° / Bottom 88° / Left 88° / Right 88° |
| Illumination | Axiom+ 7: 1800 nits / 1800 cd/m2 Axiom+ 9:1500 nits / 1500 cd/m2 Axiom+ 12: 1800 nits / 1800 cd/m2 |
| Protective coating | HydroToughTM Oleophobic |
| Type | IPS (In-Plane Switching) |
| Color depth | 24-bit |
| Number of simultaneous touches | 2 |
| Power | |
|---|---|
| Power consumption | Axiom+ 7: 7.34 W Axiom+ 9: 8.95 W Axiom+ 12: 18.96 W |
| Operating voltage range | 8 V dc to 16 V dc |
| Fuse rating | 7 A |
| Nominal supply voltage | 12 V dc |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
| Environmental | |
|---|---|
| Operating temperature | -25°C to +55°C (-13°F to 131°F) |
| Storage temperature | -30°C to +70°C (-22°F to 158°F) |
| Relative humidity | Up to 93% @ 40°C (104°F) |
| Waterproof rating | IPx6, IPx7 |
| GPS | |
|---|---|
| Position Accuracy | Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
| Geodetic Datum | WGS-84 (alternatives can be selected on the MFD) |
| Satellite Differential Type (SBAS) | WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) |
| Channels | Track up to 28 satellites simultaneously |
| Antenna | Internal - Ceramic chip mounted near top of unit |
| GNSS compatibility | GPS, GLONASS, Beidou |
| Almanac Update | Automatic |
| Signal Acquisition | Automatic |
| Receiver IC Sensitivity | 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
| Operating frequency | 1574 MHz to 1605 MHz |
| Refresh rate | 10 Hz (10 times per second) |
| Time to first fix from cold start | < 2 minutes |
| 1 | MFD (Chartplotter) |
| 2 | Trunnion bracket |
| 3 | Trunnion knobs x 2 |
| 4 | Suncover |
| 5 | Documentation |
| 6 | Panel mount gasket |
| 7 | Rear mounting brackets for 9" display |
| 8 | Rear mounting brackets for 12" display |
| 9 | Threaded studs (M5x58) x 4 |
| 10 | Thumb nuts (M5) x 4 |
| 11 | Power/NMEA 2000 cable (1.5 m (4.92 ft) power lead, 0.5 m (1.64 ft) NMEA 2000 lead) |
| 12 | DeviceNet to SeaTalkng adaptor cable 120 mm (4.7 in) |
