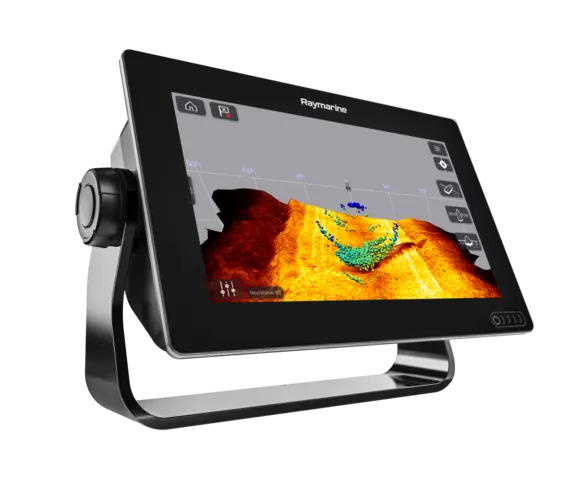

The built-in gyroscope inside the RealVision 3D transducer compensates for boat movement, delivering life-like 3D sonar imagery. RealVision 3D transducers combine CHIRP DownVision, CHIRP SideVision, High Frequency CHIRP fish finding and RealVision 3D into a single transducer housing.
Axiom chartplotter displays feature a built-in GPS receiver, simple touchscreen operation, and fast quad-core performance. Use Axiom as a full-featured chartplotter or expand Axiom with additional displays and sensors like radar, sonar, instruments, autopilot, and more.
Award-winning Axiom chartplotter displays deliver fast and fluid performance, thanks to a quad-core processor and the powerful LightHouse operating system. Ready to navigate with a built-in GPS receiver, Axiom chartplotter displays also support a range of sensors and accessories, including Quantum radar, CHIRP sonar modules, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allow connection to the latest Raymarine apps for tablets and smartphones.
Don't take our word for it, here are some of the latest reviews of the Axiom RV chartplotter...
Available in 9 or 12-inch display sizes
12" Display
RealVision 3D & 600 Watt Sonar built in
Transducer not included
Includes preloaded LightHouse Charts North America chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
9" Display
RealVision 3D & 600 Watt Sonar built in
Transducer not included
9" Display
RealVision 3D & 600 Watt Sonar built in
RV-100 RealVision 3D Transducer Included
9" Display
RealVision 3D & 600 Watt Sonar built in
CPT-100 DVS transducer included
12" Display
RealVision 3D & 600 Watt Sonar built in
Transducer not included
12" Display
RealVision 3D & 600 Watt Sonar built in
RV-100 RealVision 3D Transducer Included
| Sonar | |
|---|---|
| Depth range | CHIRP conical sonar: 0.6 m (2 ft) to 274 m (900 ft), DownVision: 0.6 m (2 ft) to 183 m (600 ft), SideVision: 0.6 m (2 ft) to 91 m (300 ft) , RealVision 3D: 0.6 m (2 ft) to 91 m (300 ft) |
| Channels | CHIRP conical sonar, DownVision, SideVision, RealVision 3D |
| Power | |
|---|---|
| Power consumption | Axiom 7: 9.84 W Axiom 9: 11.98 W Axiom 12: 18.96 W |
| Physical | |
|---|---|
| Transducer connection | 25 pin RealVision type connector |
| LCD | |
|---|---|
| Resolution | Axiom 7: WVGA 800 x 480 Axiom 9: WVGA 800 x 480 Axiom 12: WXGA 1280 x 800 |
| Viewing angle | Axiom 7: Top 60° / Bottom 70° / Left 70° / Right 70° Axiom 9: Top 60° / Bottom 70° / Left 70° / Right 70° Axiom+ 12: Top 88° / Bottom 88° / Left 88° / Right 88° |
| Type | Axiom 7: TN (Twisted Nematic) Axiom 9: TN (Twisted Nematic) Axiom 12: IPS(In-Plane-Switching |
| Size (diagonal) | Axiom 7: 7" Axiom 9: 9" Axiom 12: 12" |
| Ratio | 5:3 |
| Color depth | 24-bit |
| Illumination | 1200 nits / 1200 cd/m2 |
| Number of simultaneous touches | 2 |
| GNSS (GPS) | |
|---|---|
| Position Accuracy | Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
| Geodetic Datum | WGS-84 (alternatives can be selected on the MFD) |
| Satellite Differential Type (SBAS) | WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) |
| Channels | Track up to 28 satellites simultaneously |
| Antenna | Internal - Ceramic chip mounted near top of unit |
| GNSS compatibility | GPS, GLONASS, Beidou |
| Almanac Update | Automatic |
| Signal Acquisition | Automatic |
| Receiver IC Sensitivity | 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
| Operating frequency | 1574 MHz to 1605 MHz |
| Time to first fix from cold start | < 2 minutes |
| Physical | |
|---|---|
| Dimensions (Trunnion mounted) | Axiom+ 7: Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in) Axiom+ 9: Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in) Axiom+12: Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in) |
| Dimensions (Surface/Flush mounted) | Axiom+ 7: Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in) Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in) Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in) |
| Accessory connection | USB Micro B |
| Ethernet connection | RayNet (10/100 Mbits/s) |
| External storage | MicroSDXC card slot x 1 |
| NMEA 2000 connection | DeviceNet (male connector built into power cable) |
| Wireless connections | Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n |
| Internal storage | 4GB Solid State (2 GB usable) |
| Environmental | |
|---|---|
| Relative humidity | Up to 93% @ 40°C (104°F) |
| Waterproof rating | IPx6, IPx7 |
| Storage temperature | -30°C to +70°C (-22°F to 158°F) |
| Operating temperature | -25°C to +55°C (-13°F to 131°F) |
| Power | |
|---|---|
| Operating voltage range | 8 V dc to 16 V dc |
| Fuse rating | 7 A |
| Nominal supply voltage | 12 V dc |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
| 1 | MFD (Chartplotter) |
| 2 | Trunnion bracket |
| 3 | Trunnion knobs x 2 |
| 4 | Trunnion mouny suncover |
| 5 | Panel mount gasket |
| 6 | Threaded studs (M5x58) x 4 |
| 7 | Thumb nuts (M5) x 4 |
| 8 | Documentation |
| 9 | Power/NMEA 2000 cable (1.5 m (4.92 ft) power lead, 0.5 m (1.64 ft) NMEA 2000 lead) |
| Axiom & Axiom+ Manuals | Find all of the latest Axiom & Axiom+ manuals here. |
| LightHouse 4 Update for Axiom Chartplotters | Software Version & Update InformationSoftware download and update information for Raymarine Axiom, Axiom+, Axiom Pro, Axiom 2 Pro, Axiom XL and Axiom 2 XL chartplotter displays:
Download Notes - Please select the appropriate Axiom or Axiom 2 download file from the download links on this page Attention Axiom users running LH4.7.172 or LH4.7.182 - You will have to upgrade to LH4.7.184 first, before upgrading to any future software versions, otherwise you may experience an “upgrade failed” message - the LH4.7.184 download will always be available in the software history table below. Attention Axiom+ 7'' Users - Please be aware that when your Axiom reboots during the update, the display will go off for approximately 1.5 minutes whilst the touch touchscreen firmware is updated, with just the power swipe illuminated. During the update, the touchscreen will be recalibrated, so please ensure the suncover has been removed, the display is clear of any water and you do not touch the screen. Attention Axiom 2 Pro Users - Axiom 2 Pro running LH4.3.54 will have to upgrade to LH4.4.70 first, before upgrading to any future software versions - the LH4.4.70 download is located in software history table below. Attention Spotify Users - The Spotify app is no longer bundled with LightHouse 4. The latest Spotify app can be downloaded from the Apps & Integrations page. Once you have updated to LightHouse 4, you can remove the old version of Spotify from the Axiom by pressing and holding down on the App, until the pop-up box appears and then clicking “Uninstall application”. Re-install Spotify by downloading it from our website onto a MicroSD card, and then inserting it into the AXIOM. Within the Apps menu, click on “Install from SD/USB.” Update InstructionsWatch this video to learn how to upgrade your Axiom chartplotter display via Wi-Fi and microSD Card or read our FAQ to find out more.  How to Upgrade your Axiom to LightHouse 4Upgrading is easy. Watch this video to learn how |
