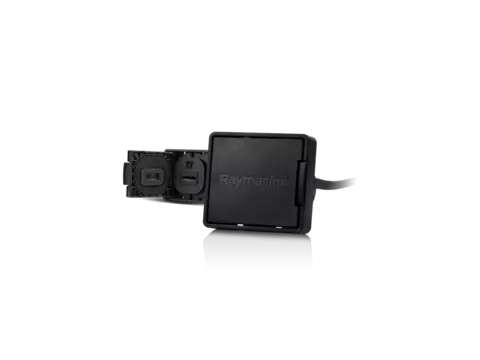

The RCR-1 USB remote microSD card reader provides remote microSD access to Axiom, Axiom+, Axiom Pro, Axiom Pro 2, and Axiom XL chartplotter displays. The RCR-1 is recommended for Axiom and Axiom+ installations when the rear microSD card reader is not readily accessible. Axiom XL installations require an RCR-1 or RCR-SD USB for microSD card access.
| Power | |
|---|---|
| Current | Peak 0.25 A |
| Power consumption | 5 V dc |
| Environmental | |
|---|---|
| Relative humidity | Max. 93% |
| Waterproof rating | IPx6, IPx7 (lid closed) |
| Storage temperature | -30° C to +70° C (-22° F to 158° F) |
| Operating temperature | -25° C to +55° C (-13° F to 131° E270F) |
| Physical | |
|---|---|
| Weight | 200 g |
| Data connections | |
|---|---|
| USB connection | 1 x Micro USB |
Package contents
| 1 | RCR-1 microSD card reader, including 1 m (3.28 ft) captive cable |
| 2 | Foam gasket |
| 3 | Lock ring |
| 4 | Suppression ferrite |
