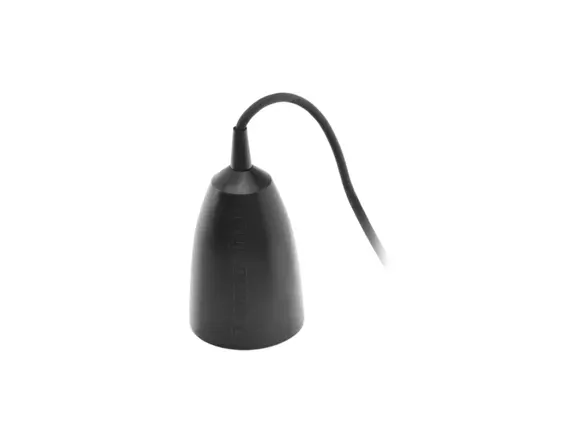

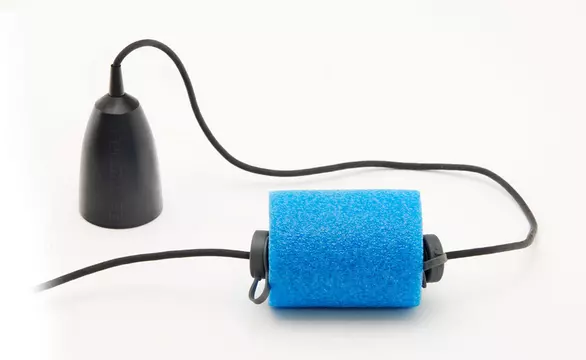

CPT-S Ice Fishing Transducer

Width: 290 mm (11.42 in), Height: 270 mm (10.63 in), Depth: 290 mm (11.42 in)

CPT-S ice fishing transducer (with 2.5 m (8.2 ft) transducer cable and display 0.5 m (1.64 ft) power supply cable)

4.7 Kg (10.36 lb)

USA (type A), UK (type G), EU (type C)

Sealed, valve regulated lead-acid (VRLA), rechargeable

Class 2 power supply, suitable for indoor use only.

50/60 Hz

-40°C (-40°F) to 70°C (158°F)

14.5 V dc

12 V dc

100 V ac to 240 V ac

1 m (3.28 ft) fixed cable

0°C (32°F) to 40°C (104°F)

0.4 A

0.041666666666666664

The battery is exempt from hazardous goods regulations for the purpose of transportation by DOT and IATA/ICAO and therefore are unrestricted for transportation by any means.

The battery conforms to UN2800 classification as ‘Batteries, wet, non-spillable and electric storage’

Examples:, Dragonfly-7PRO: 5 hours @ 100% brightness, Dragonfly-5PRO: 10 hours @ 100% brightness, The values listed are approximate usage time examples using a new battery. Battery capacity degrades over time so older well used batteries will discharge more quickly than a new battery.

Copper

7.0 Ah (7000 mAh)

40°C (104°F): 102%, 25°C (77°F): 100, 0°C (32°F): 85%, -15°C (5°F): 65%

3 months: 91% remaining capacity, 6 months: 82% remaining capacity, 12 months: 65% remaining capacity

22 m Ω

2.8 A

-15°C (5°F) to 50°C (122°F)

14.5 V to 14.8 V

13.6 V to 13.8 V

105 A (5 seconds)

Power = 0.5 m (1.6 ft), Transducer = 2.5 m (8.2 ft)

N/A

IPx8 - Continuously submerged at a depth of 3 meters (approximately 10 ft)

Display power = Crimp terminals, Transducer = Dragonfly 10-pin 3 keyway connector (Green)

90 W

-20°C (-4°F) to +70°C (158°F)

-2°C (28.4°F) to +35°C (95°F)

12 V dc, 7 Ah (Amp hour) or greater

0°

0.6 m (1.97 ft) to 274 m (898.95 ft)

0.260 kg (9.17 oz)

Conical beam

90 W

1 x CHIRP sonar

0.6 m (2 ft) to 274 m (900 ft) depending on water conditions
