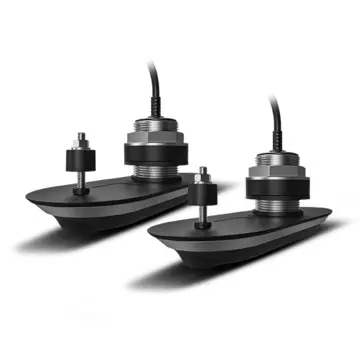

Learn moreRealVision Stainless Steel Through Hull Transducer & Pairs for Axiom+ RV, Axiom Pro RVX & RVX-1000 sonars

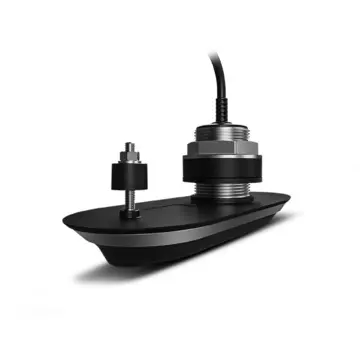

Raymarine’s RV-400 stainless steel all-in-one through hull transducer is designed for inboard and outboard powerboats. The RV-400 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar. The RV-400 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, conical CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel maneuvering. The RV-400 also has a built-in fast response water temperature sensor for quick, accurate readings.
The RV-400 features a rugged stainless steel through hull body suitable for fiberglass, wood or metal hulls. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-400 works even works great on trailered boats and with no fairing block to cut, installation is a breeze.
0° Offset
Stainless Steel
Through Hull Mount
RealVision 3D
8-Meter Extension Cable
12° Offset
Stainless Steel
Through Hull Mount
RealVision 3D
8-Meter Extension Cable
2-Meter Y-Cable
12° Offset
Stainless Steel
Through Hull Mount
RealVision 3D
2-Meter Extension Cable
12° Offset
Stainless Steel
Through Hull Mount
RealVision 3D
2-Meter Extension Cable
20° Offset
Stainless Steel
Through Hull Mount
RealVision 3D
8-Meter Extension Cable
2-Meter Y-Cable
20° Offset
Stainless Steel
Through Hull Mount
RealVision 3D
2-Meter Extension Cable
20° Offset
Stainless Steel
Through Hull Mount
RealVision 3D
2-Meter Extension Cable
| Physical | |
|---|---|
| Cable length | RV-400: 8 m (26.2 ft), RV-4xx (P/S): 2 m (6.5 ft), An 8 m (26.2 ft) extension cable is also supplied when ordering split pair transducer sets T70450 and T70451. |
| Dimensions | Length: 347.51 mm (13.68 in) including High speed nose cone. Height: 180 mm (7.09 in) including cable bend radius. Width: 114.00 mm (4.49 in) - including High speed nose cone |
| Weight | 3.12 kg (6.88 lb) |
| Environmental | |
|---|---|
| Waterproof rating | IPx6 (surfaces exterior to hull only), IPx7, IPx8 |
| Storage temperature range | -20°C (23°F) to + 70°C (158°F) |
| Operating temperature range | -2°C (28.4°F) to + 55°C (131°F) |
| Conformance | |
|---|---|
| Standards | EN 60945:2002, IEC 28846:1993, EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2 |
| RealVision 3D sonar | |
|---|---|
| Range | CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft), DownVision = 0.6 M (2 ft) to 183 m (600 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft), RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft) |
| Channels | 1 x CHIRP sonar, 1 x DownVision, 1 x SideVision, 1 x RealVision 3D |
| 1 | Documentation |
| 2 | Locking collar kit (for transducer cable connector), consisting of: 2 x Split rings (includes spare), 1 x O-ring, 1 x Locking collar, 1 x Split ring fitting tool |
| 3 | Bronze hull nut |
| 4 | Cable protector |
| 5 | Large internal isolator sleeve |
| 6 | Nut for Anti-rotation bolt |
| 7 | Small washer for Anti-rotation bolt |
| 8 | Rubber washer |
| 9 | Small internal isolator sleeve |
| 10 | External isolator plate |
| 11 | External isolator sleeve |
| 12 | High speed nose cone |
| 13 | Transducer (including cable) |
| 14 | Anti-rotation bolt |
| 15 | Protective cap for Anti-rotation bolt |
