Docking a boat can be stressful. Blind spots, wind, and currents are all conspiring against you. The Raymarine and NeuBoat system makes docking effortless.
NeuBoat Dock delivers a 360-degree view around your vessel, eliminating blind spots so you can maneuver in tight areas and approach the dock stress-free.
A 6-camera system provides a 360-degree birds-eye view around the vessel.

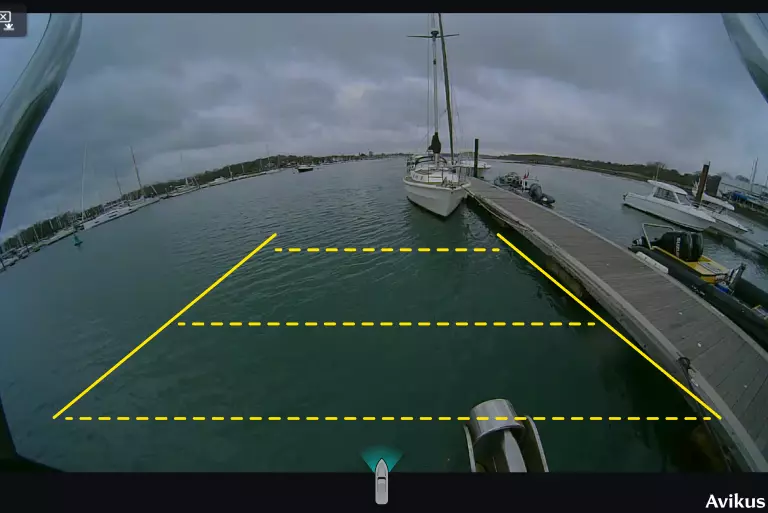

On-screen distance guides provide visual cues and help you dock in tight spaces.

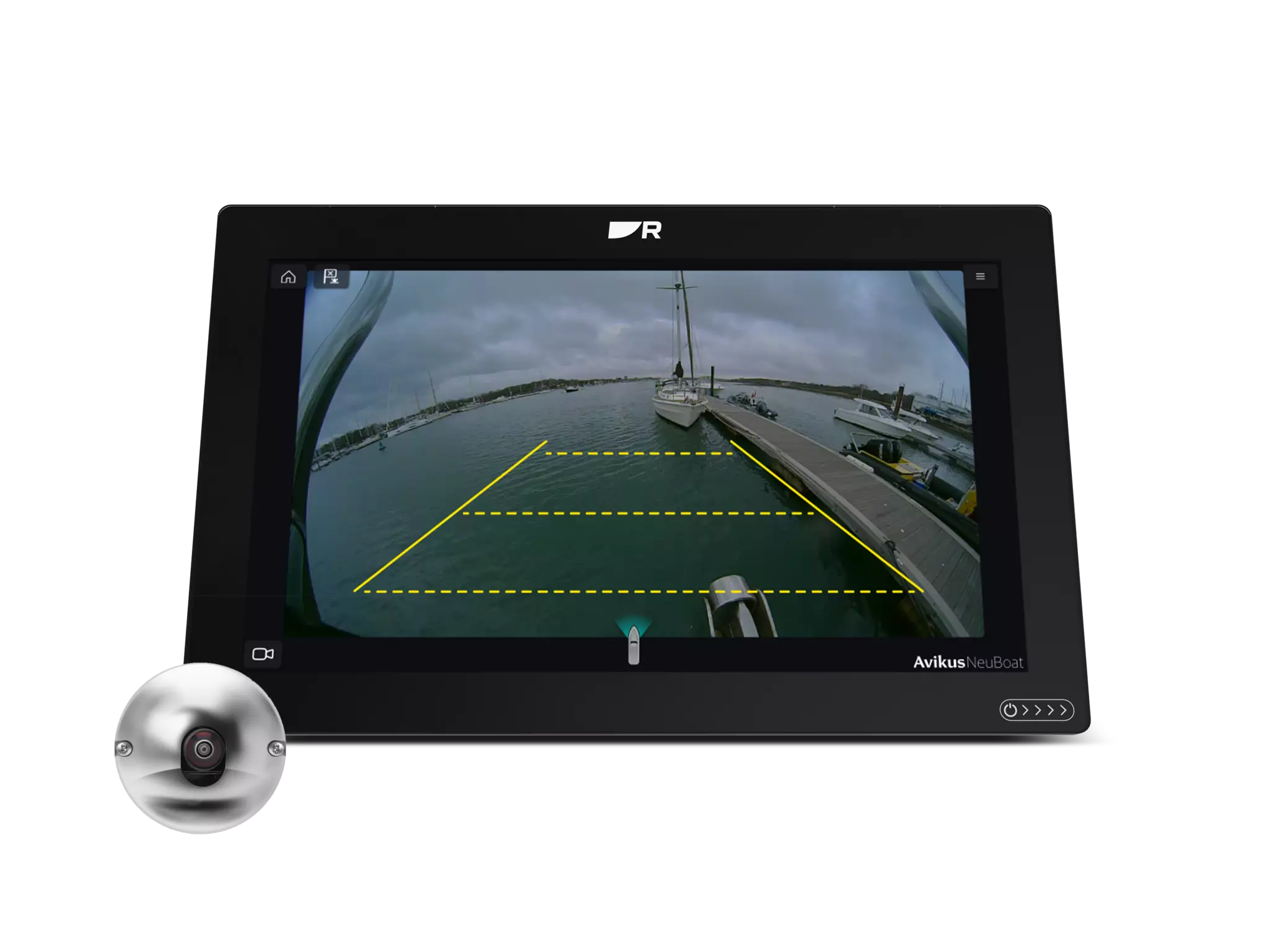

Enjoy a 360-degree view or view each camera independently with pre-set docking modes.

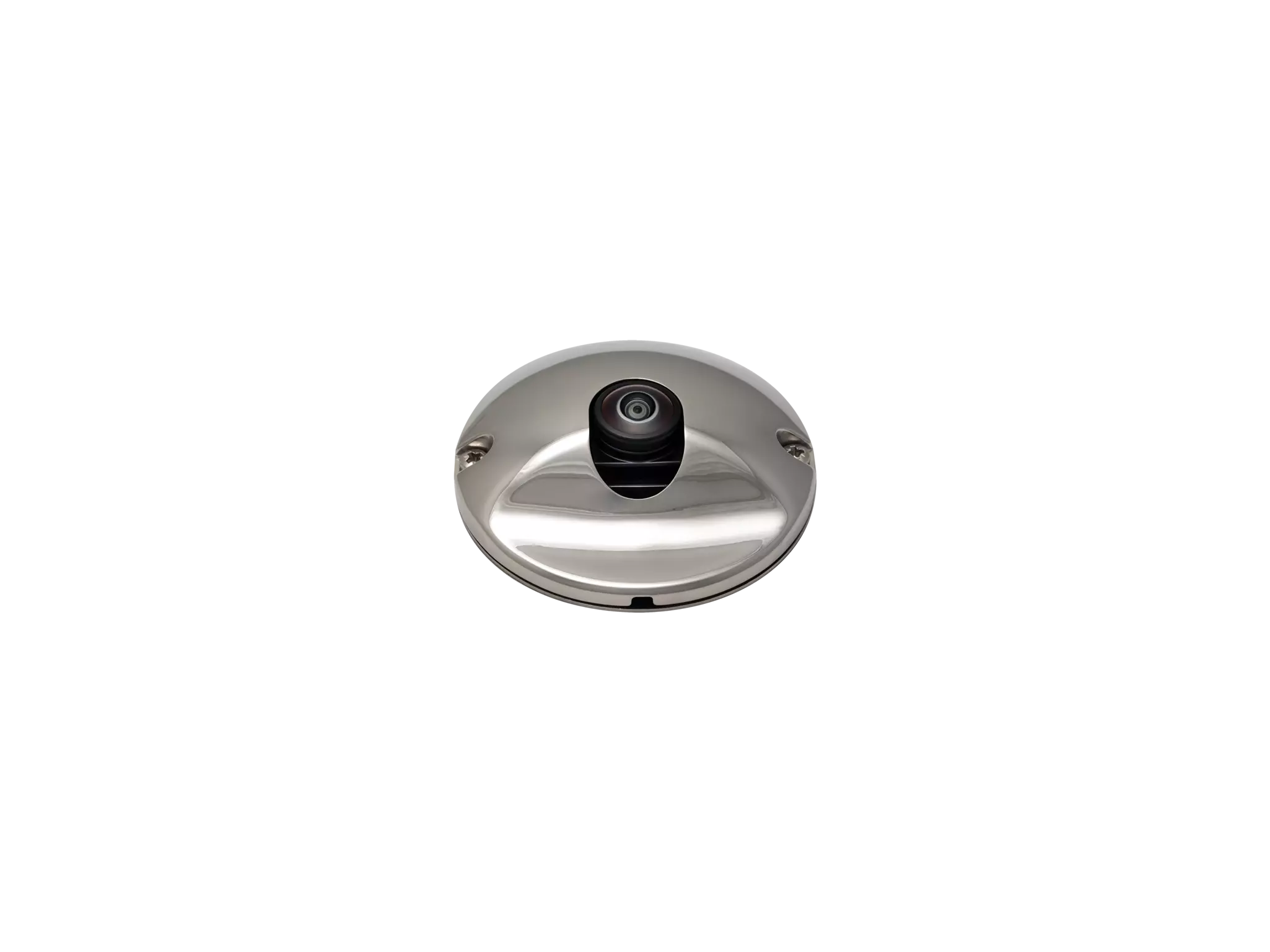

Installed at the bow, bow-port, bow-starboard, port, starboard, and stern on your vessel, these cameras provides a 360° birds-eye surround view of your vessel’s immediate surroundings. Six cameras provide coverage for vessels up to 100 ft (30 meters)
Installed below deck, this unit receives data from the 6 Surround-View Monitor cameras and then transmits the processed data to the connected Object Recognition Unit. For vessels over 50 feet (15 meters), an additional Camera Conversion Unit and network cabling may be required.

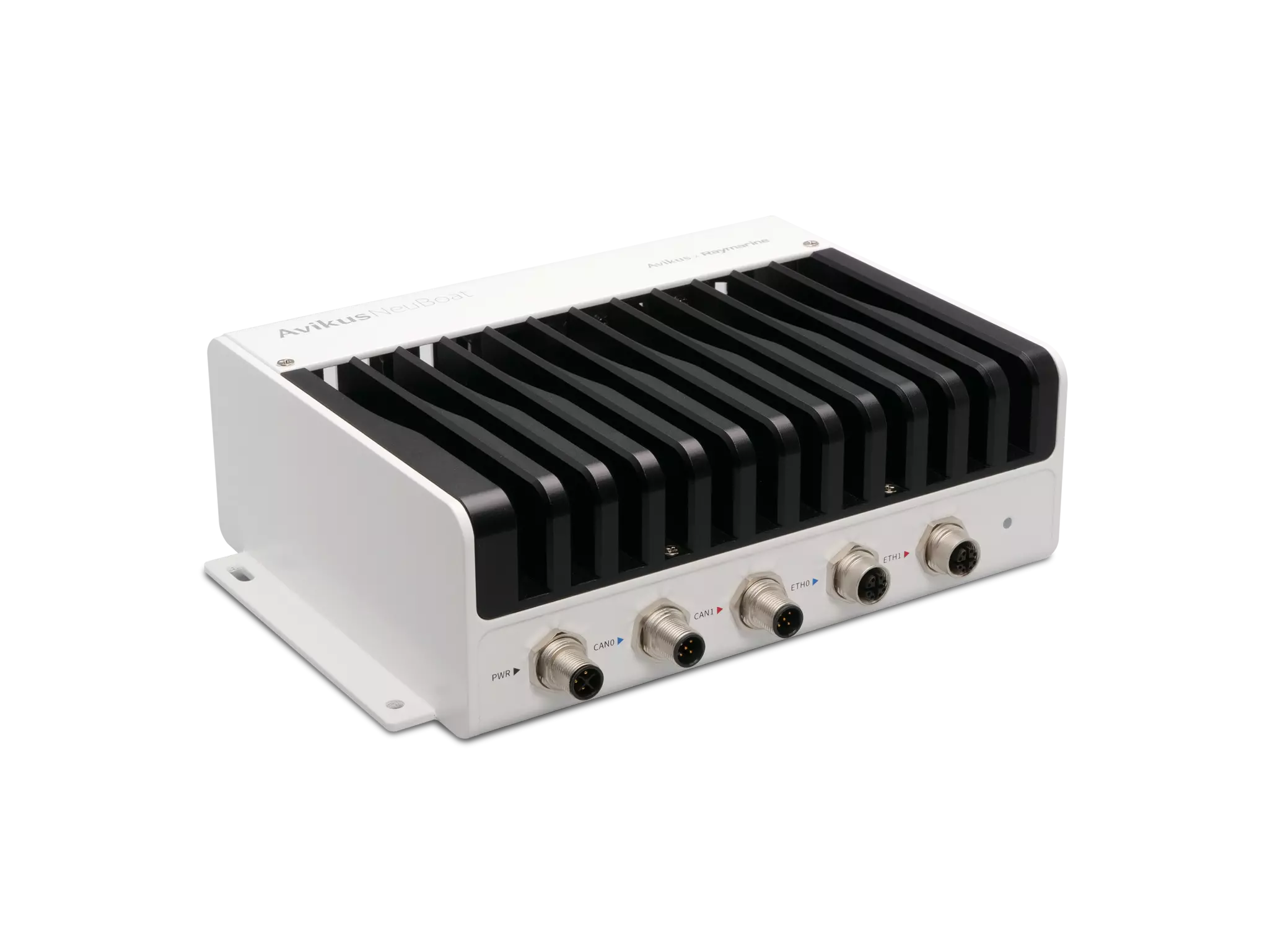

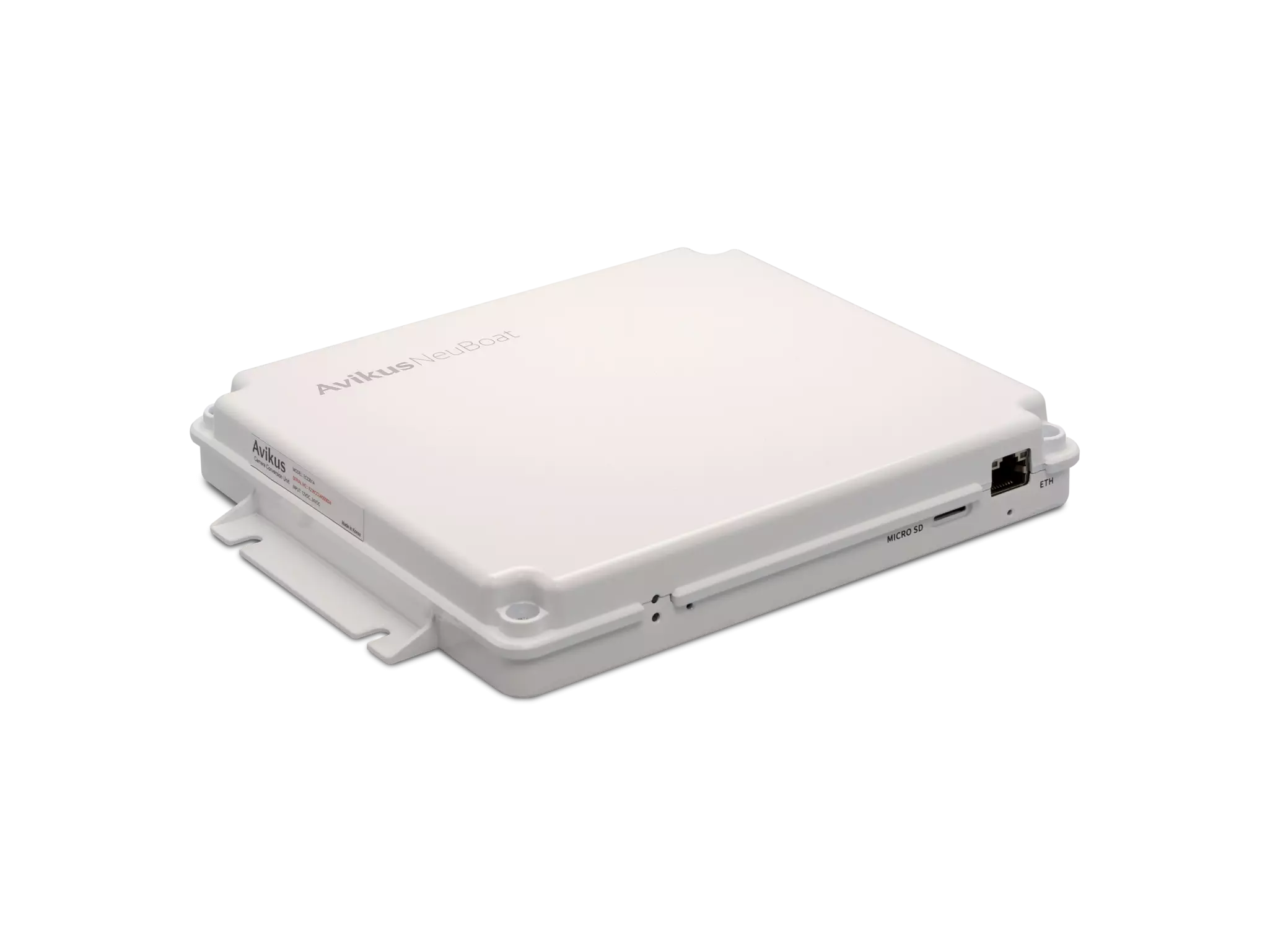

Installed below deck, the Object Recognition receives data from the Camera Conversion Unit and then interprets the visual information from all connected cameras into a synchronized view.

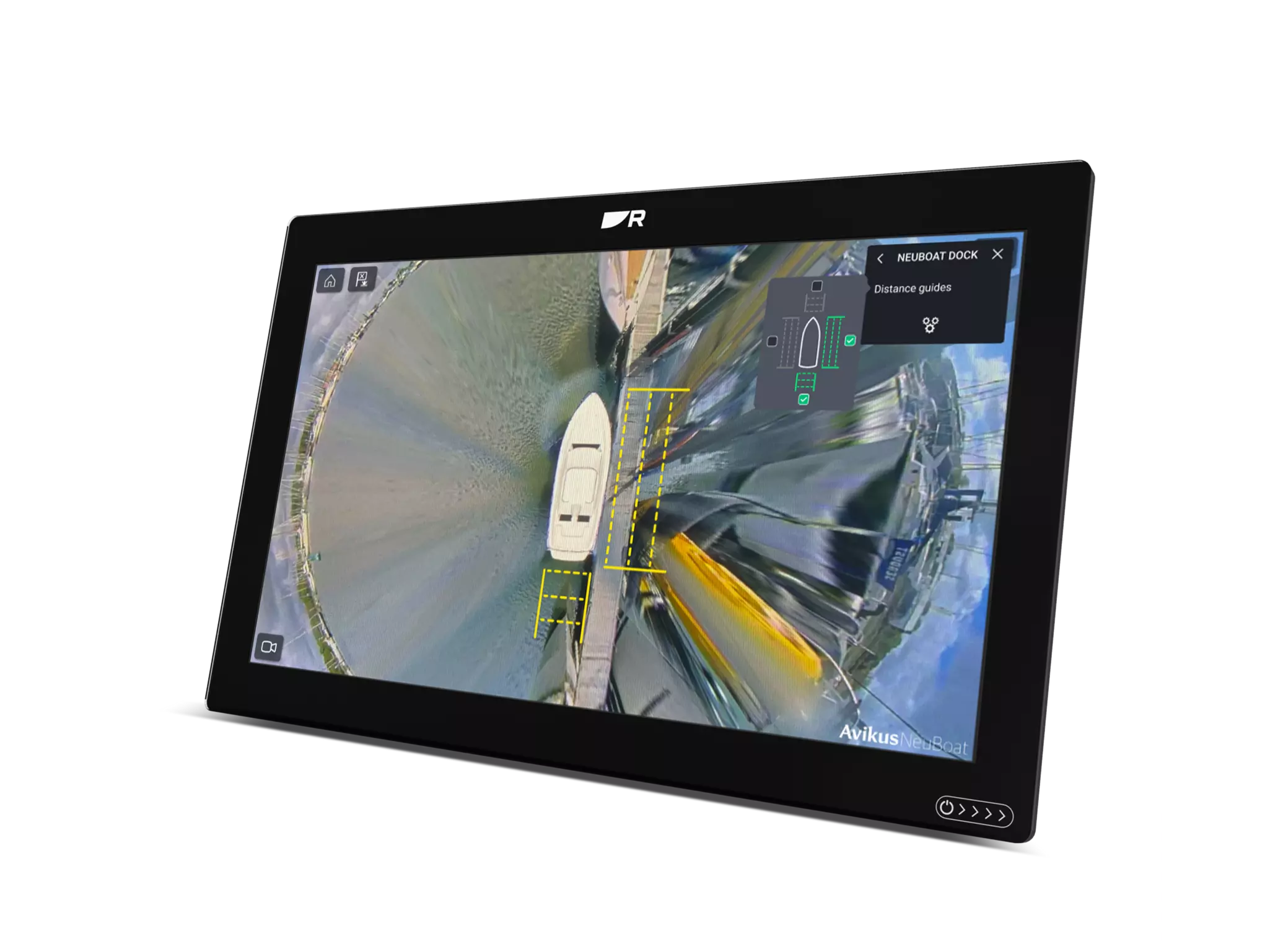

At the helm, an Axiom chartplotter display provides simple touchscreen access to the NeuBoat Dock user interface and 360-degree camera view.

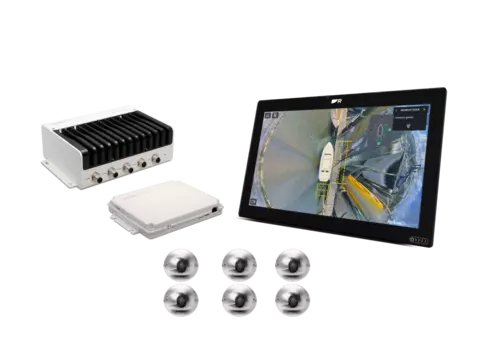

The complete system consists of 6 Surround-View Monitor cameras, Object Recognition Unit and the Camera Control Unit connected seamlessly to an Axiom Chartplotter display at the helm.
Designed for new boat construction, NeuBoat Dock from Raymarine offers simplified configuration and commissioning. Calibration can be performed on land or in the water. No cumbersome calibration mats or posts used in other systems are required. Calibration does not require Raymarine personnel to be on-site at the boat factory. NeuBoat Dock can be calibrated remotely with a simple Axiom internet connection via Wi-Fi or a YachtSense Link router.
$19,999.99 (USD)
For vessels in the 50' (15 meters) range
Includes Six Surround View Monitor Cameras
Includes Obstacle Recognition Unit
Includes Camera Conversion Unit
Compatible with Axiom chartplotters (sold separately)
| SVM - Physical | |
|---|---|
| Width | 90 mm (3.54 in) |
| Height | 89.79 mm (3.54 in) |
| Depth | 97.81 mm (3.85 in) |
| SVM - Power | |
|---|---|
| Nominal supply voltage | 5 V dc |
| Operating voltage range | 4.5 V to 5.5 V dc |
| Power consumption | 1.4 W (maximum) |
| Current | 240 mA (nominal) @ 5 V dc |
| SVM - Environmental | |
|---|---|
| Operating temperature | -15° C (+ 5° F) to +55° C (131° F) |
| Storage temperature | -30 °C (-22° F) to +70 °C (158 °F) |
| Relative humidity | up to 90% @ 40° C (185° F) |
| Waterproof rating | IPx7 |
| SVM - Camera | |
|---|---|
| Sensor / DSP | IMX290 |
| Total pixels | 1920 (H) x 1080 (V) |
| Luminance | 1 lux |
| Lens / Field of View | 191.9° Horizontal FOV x 124° Vertical FOV |
| SVM - Video | |
|---|---|
| Output | TVI Differential |
| Resolution | 1920 x 1080 (1080p) |
| Frame rate | 30 fps |
| SVM - Conformance | |
|---|---|
| Europe, Australia & New Zealand | EN 60945:2002 |
| Canada | ICES-003 |
| USA | CFR47 Part 15 |
| Product markings |
|
| CCU - Physical | |
|---|---|
| Width | 226.00 mm (8.90 in) |
| Height | 180.00 mm (7.09 in) |
| Depth | 30.00 mm (1.18 in) |
| CCU - Power | |
|---|---|
| Nominal supply voltage | 12 V / 24 V dc |
| Operating voltage range | 10.8 V to 32 V dc |
| Power consumption | 25 W (maximum) |
| Current | 2.1 A (nominal) @ 12 V dc / 1 A (nominal) @ 24 V dc |
| Inline fuse rating | 3 A |
| Thermal breaker rating | 3 A |
| CCU - Network | |
|---|---|
| Network connection ports |
|
| CCU - Environmental | |
|---|---|
| Operating temperature | -15° C (+ 5° F) to +55° C (131° F) |
| Storage temperature | -30 °C (-22° F) to +70 °C (158 °F) |
| Relative humidity | up to 90% @ 40° C (104° F) |
| CCU - Video | |
|---|---|
| Compression | H.265 |
| Resolutions | 1280 x 720 (720p) |
| Frame Rate | Up to 30 fps |
| Bit Rate | Up to 12 MB |
| Bit Rate Control | CBR |
| CCU - Conformance | |
|---|---|
| Europe, Australia & New Zealand | EN 60945:2002 |
| Canada | ICES-003 |
| USA | CFR47 Part 15 |
| Product markings |
|
| ORU - Physical | |
|---|---|
| Width | 261.20 mm (10.28 in) |
| Height | 180.50 mm (7.11 in) |
| Height (including connectors) | 188.00 mm (7.40 in) |
| Depth | 75.00 mm (2.95 in) |
| ORU - Power | |
|---|---|
| Nominal supply voltage | 12 V / 24 V dc |
| Operating voltage range | 10.8 V to 32 V dc |
| Power consumption | 45 W (maximum) |
| Current | 1.5 A (nominal) @ 12 V dc / 0.9 A (nominal) @ 24 V dc |
| Inline fuse rating | 10 A |
| Thermal breaker rating | 10 A |
| ORU - Network | |
|---|---|
| Network connection ports | 2x M12 (Ethernet) connection ports |
| ORU - Environmental | |
|---|---|
| Operating temperature | -15° C (+ 5° F) to +55° C (131° F) |
| Storage temperature | -30° C (-22° F) to +70° C (158 °F) |
| Relative humidity | up to 93% @ 40° C (104° F) |
| Waterproof rating | IPx5 |
| ORU - Conformance | |
|---|---|
| Europe, Australia & New Zealand | EN 60945:2002 |
| Canada | ICES-003 |
| USA | CFR47 Part 15 |
| Product markings |
|

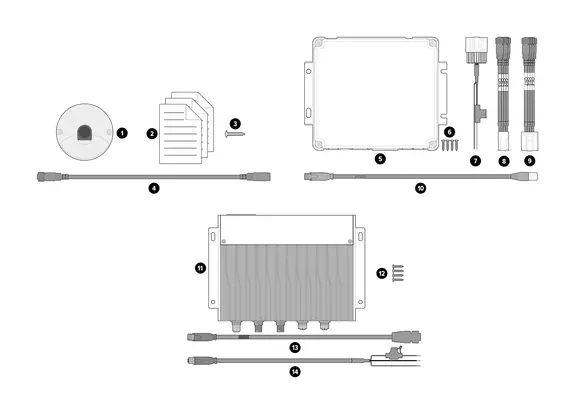

The following parts are supplied with the NeuBoat Dock System:
| 1 | (6 x) Surround View Monitor camera. |
| 2 | (1 x) Documentation pack (includes placement position file). |
| 3 | (24 x) Fixing screws. |
| 4 | (6 x) SVM camera to CCU cable, 15 m (49.21 ft). |
| 5 | (1 x) Camera Conversion Unit. |
| 6 | (4 x) Fixing screws. |
| 7 | (1 x) CCU power cable, 1 m (3.3 ft). |
| 8 | (1x) CCU camera input cable 1, 200 mm (7.87 in). |
| 9 | (1x) CCU camera input cable 2, 200 mm (7.87 in). |
| 10 | (1 x) CCU to ORU cable, 15 m (49.21 ft). |
| 11 | (1 x) Object Recognition Unit. |
| 12 | (4 x) Fixing screws. |
| 13 | (1 x) ORU to RayNet cable, 25 m (82.02 ft). |
| 14 | (1 x) ORU power cable, 2 m (6.56 ft). |
| Manual | |
|---|---|
| Download Manual | Download NeuBoat Dock manuals, declarations of conformity and mounting templates. |
| Software | |
|---|---|
| Software Update | Download the latest software for your NeuBoat Dock 360 Degree View Camera System. |
If you're a boat builder and would like to learn more about NeuBoat Dock then contact us today to explore how we can collaborate and create a seamless boating experience for your customers.
