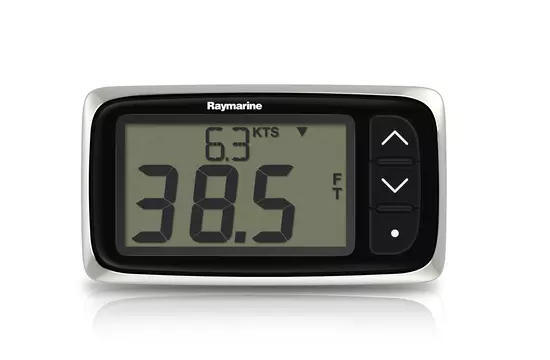

Learn moreThe i40 Bidata provides a compact view of both depth and speed data on one crystal clear instrument display. Log and sea temperature data can also be displayed.
A convenient solution for multi data readouts in one compact instrument display, the i40 Bidata displays sea temperature, log, speed, and depth, with two datasets being displayed at once in crystal clear LCDs. The SeaTalk i40 Bidata instrument display couldn’t be easier to see, even when the at-sea lighting levels are low, thanks to its oversized digits and super-sharp LCDs. Displaying two datasets simultaneously, this instrument display offers the choice of either small or large digits to suit the user’s needs.
Designed with convenience in mind, the i40 instrument displays fully integrate with Raymarine navigation equipment and autopilots for a seamless experience at sea. i40 can be the host for its own transducer or repeat data from another SeaTalk network device. i40 also supports network dimming control so it is easy to adjust the lighting levels for all devices from a single location. i40 instruments can also communicate on the SeaTalkNG network using an optional SeaTalk to SeaTalkNG Converter Kit (E22158), sold separately.

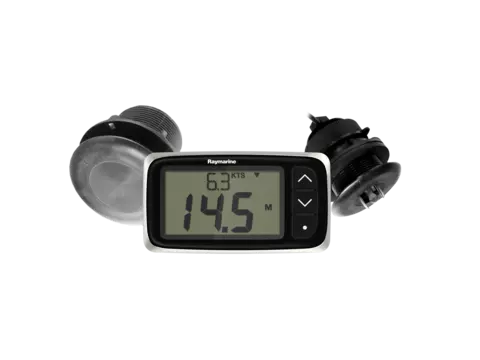

Choose either the i40 Bidata display only or choose the i40 Bidata with the P371 & P7 Speed/Temp/Depth through hull transducers
Display Only
P371 and P7 Through Hull transducers included
| Physical | |
|---|---|
| Connections | SeaTalk, Speed transducer, Depth Transducer |
| Dimensions | Length: 128 mm (5.04 in), Height: 72 mm (2.83 in), Depth: 35 mm (1.4 in) |
| Environmental | |
|---|---|
| Relative humidity | Max. 93% |
| Waterproof rating | IPx6 |
| Storage temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Operating temperature | 0°C to +70°C (32°F to 158°F) |
| Conformance | |
|---|---|
| Standards | Europe 2004/108/EC |
| Power | |
|---|---|
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 10 V dc to 16 V dc |
| Current (typical / max) | 35 mA / 100 mA |
| 1 | i40 Instrument display |
| 2 | i40 Sun cover |
| 3 | Mounting gasket |
| 4 | Clamping bracket |
| 5 | Fixing stud and thumb nut |
| 6 | SeaTalk power cable 1m (3ft) |
| 7 | Documentation |
