    i40 Depth

    The i40 compact depth instrument display provides a crystal clear depth readout, shallow and deep anchor alarms and a minimum depth display.

    Product Options
    i40 Depth
    i40 Depth for Sailing

    Clear & Quick Depth Visibility

    The i40 Depth instrument display has been designed to make it as simple and speedy as possible to view the current water depth at a glance. With integrated alarms for both deep and shallow anchor, this compact display boasts excellent visibility and very low power draw. Ideal for use on RIBs, powerboats, and small yachts, the compact yet surprisingly powerful SeaTalk i40 Depth instrument display can be easily seen, even when the lighting conditions are low thanks to its oversized digits and extra-sharp LCDs.

    i40 Depth Key Features

    • The red backlight maximizes visibility even in low lighting conditions
    • Longer battery life thanks to low power consumption
    • Larger controls to allow for easy usage when at sea
    • Built-in connections for a speed transducer
    • SeaTalk network interface for power and data connectivity
    • Master or repeater. i40 can be the host for its own transducer or repeat data from another SeaTalk network device.
    • Surface mount or optional trunnion mount kit


    i40 group

    Full Integration with Raymarine Equipment

    Designed with convenience in mind, the i40 instrument displays fully integrate with Raymarine navigation equipment and autopilots for a seamless experience at sea. i40 can be the host for its own transducer or repeat data from another SeaTalk network device. i40 also supports network dimming control so it is easy to adjust the lighting levels for all devices from a single location. i40 instruments can also communicate on the SeaTalkNG network using an optional SeaTalk to SeaTalkNG Converter Kit (E22158), sold separately.

    i40 Depth Models

    Choose the i40 Depth display only or choose an i40 Depth pack with transducer

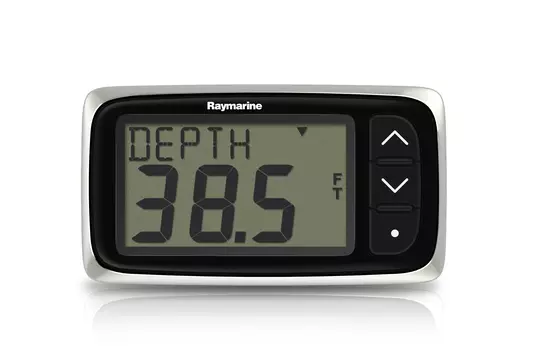

    i40 Depth instrument display

    SKU: E70064
    i40 Depth instrument display

    • Display Only

    Find a Dealer

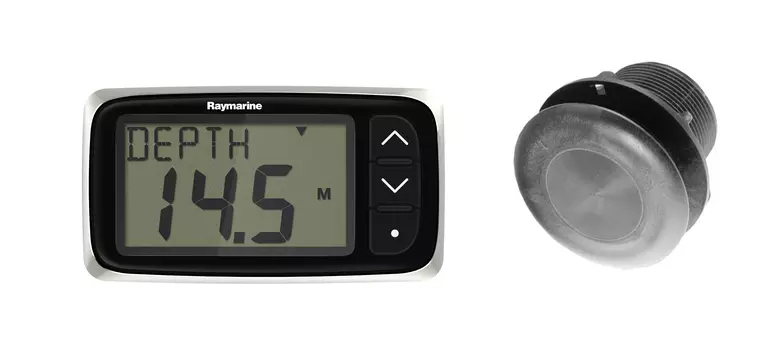

    i40 Depth Pack

    SKU: E70142
    i40 Depth Pack

    • P371 and P7 Through Hull transducers included

    Find a Dealer

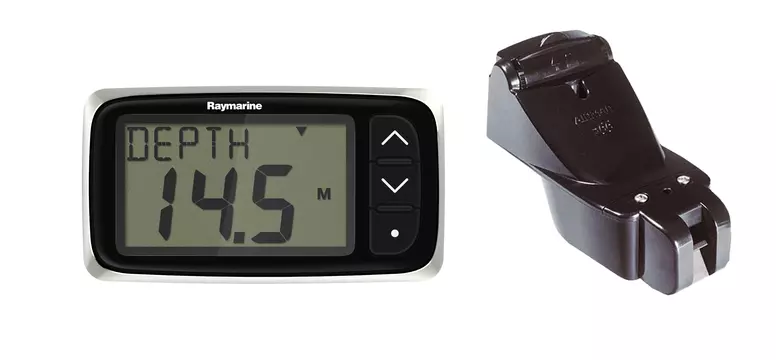

    i40 Depth Pack, with Transom Transducer

    SKU: E70143
    i40 Depth Pack, with Transom Transducer

    • P66 Transom mount transducer included

    Find a Dealer

    i40 Depth Resources

    Physical
    Connections

    SeaTalk, Speed transducer, Depth Transducer
    Dimensions

    Length: 128 mm (5.04 in), Height: 72 mm (2.83 in), Depth: 35 mm (1.4 in)
    Environmental
    Relative humidity

    Max. 93%
    Waterproof rating

    IPx6
    Storage temperature

    -30 °C to +70 °C (-22 °F to 158 °F)
    Operating temperature

    0°C to +70°C (32°F to 158°F)
    Conformance
    Standards

    Europe 2004/108/EC
    Power
    Nominal supply voltage

    12 V dc
    Operating voltage range

    10 V dc to 16 V dc
    Current (typical / max)

    35 mA / 100 mA
    What's in the box?


    1

    i40 Instrument display
    2

    i40 Sun cover
    3

    Mounting gasket
    4

    Clamping bracket
    5

    Fixing stud and thumb nut
    6

    SeaTalk power cable 1m (3ft)
    7

    Documentation
