    Retired

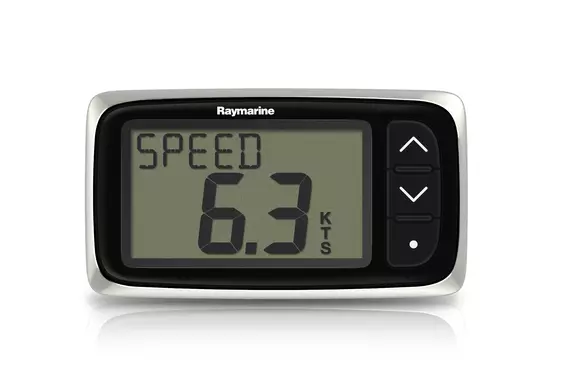

    i40 Speed

    The i40 Speed is a compact speed instrument display and displays current, maximum and average boat speed, log trip and sea temperature.

    Product Options
    i40 Speed
    i40 Speed

    Easy to see, Easy to use

    The i40 speed instrument displays are designed to show the current, average, and maximum boat speed as well as the sea temperature and log trip. Designed for ease of use, the i40 compact display has very low power draw and excellent visibility. Perfect for small yachts, RIBs, and powerboats, the powerful but surprisingly compact SeaTalk i40 Speed instrument display is easy to see even in poor lighting conditions thanks to the extra-large digits and super-sharp LCDs.

    i40 Speed Key Features

    • Red backlight to maximize visibility
    • Longer battery life thanks to low power consumption
    • Large controls ensuring easy usage at sea
    • Built-in connections for a depth and temperature transducer
    • SeaTalk network interface for power and data connectivity
    • Master or repeater. i40 can be the host for its own transducer or repeat data from another SeaTalk network device.
    • Surface mount or optional trunnion mount kit


    i40 group

    Full Integration with Raymarine Equipment

    Designed with convenience in mind, the i40 instrument displays fully integrate with Raymarine navigation equipment and autopilots for a seamless experience at sea. i40 can be the host for its own transducer or repeat data from another SeaTalk network device. i40 also supports network dimming control so it is easy to adjust the lighting levels for all devices from a single location. i40 instruments can also communicate on the SeaTalkNG network using an optional SeaTalk to SeaTalkNG Converter Kit (E22158), sold separately.

    i40 Speed Models

    Choose the i40 Speed as a display or choose an i40 Speed pack with a transducer

    i40 Speed

    SKU: E70063
    i40 Speed

    • Display Only

    Find a Dealer

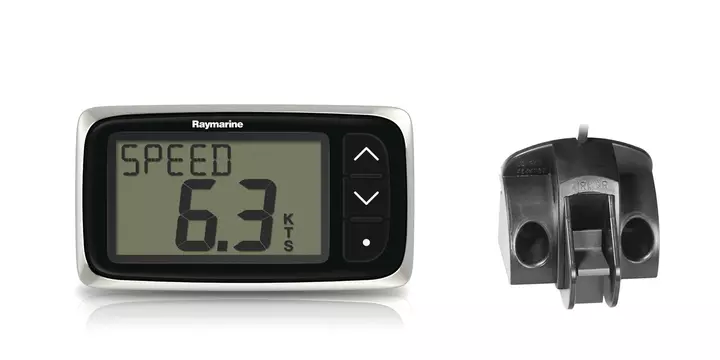

    i40 Speed Pack Transom

    SKU: E70141
    i40 Speed Pack Transom

    • Includes ST69 transom mount transducer

    Find a Dealer

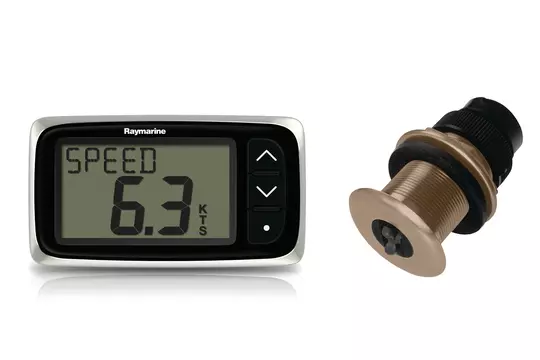

    i40 Speed Pack Through Hull Transducer

    SKU: E70140
    i40 Speed Pack Through Hull Transducer

    • P371 Through hull transducer included

    Find a Dealer

    i40 Speed Resources

    Physical
    Connections

    SeaTalk, Speed transducer, Depth Transducer
    Dimensions

    Length: 128 mm (5.04 in), Height: 72 mm (2.83 in), Depth: 35 mm (1.4 in)
    Environmental
    Relative humidity

    Max. 93%
    Waterproof rating

    IPx6
    Storage temperature

    -30 °C to +70 °C (-22 °F to 158 °F)
    Operating temperature

    0°C to +70°C (32°F to 158°F)
    Conformance
    Standards

    Europe 2004/108/EC
    Power
    Nominal supply voltage

    12 V dc
    Operating voltage range

    10 V dc to 16 V dc
    Current (typical / max)

    35 mA / 100 mA
    What's in the box?


    1

    i40 Instrument display
    2

    i40 Sun cover
    3

    Mounting gasket
    4

    Clamping bracket
    5

    Fixing stud and thumb nut
    6

    SeaTalk power cable 1m (3ft)
    7

    Documentation
