RSW Wired

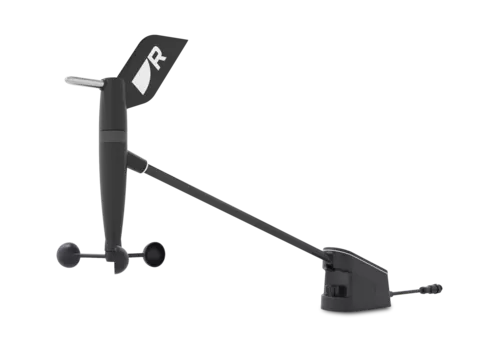

The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30m Smart Wind mast cable as standard.

Product Options

Award winning, wind sensor technology

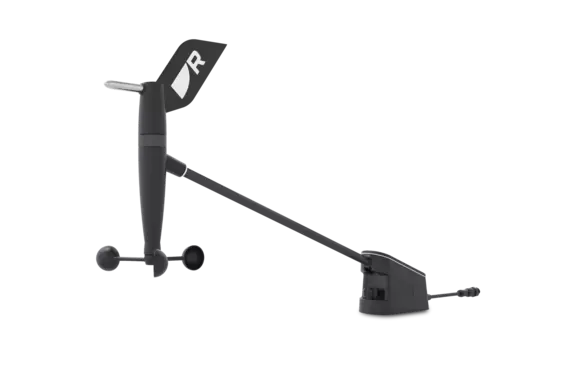

Designed for sailors, by sailors, the transducer is lightweight but extremely strong. The 3D motion sensor accounts for pitch and roll while Raymarine Smart Wind technology compensates for mast twist and bend and up-wash against the sails.

Winner of the prestigious Dame Award, the jury of marine industry experts said; "Raymarine's completely rethought approach to wind transducers is impressive at every level, from its ease of use and physical design to its pre-calibrated operating software."

Read the Press Release

RSW Wired Product Features

Install & Go!

Raymarine Smart Wind technology delivers expert level accuracy without the need for additional, expensive processors or extensive calibration and set-up.

Finely Tuned

Through rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the mast head is accurate and consistent.

Sail Smarter

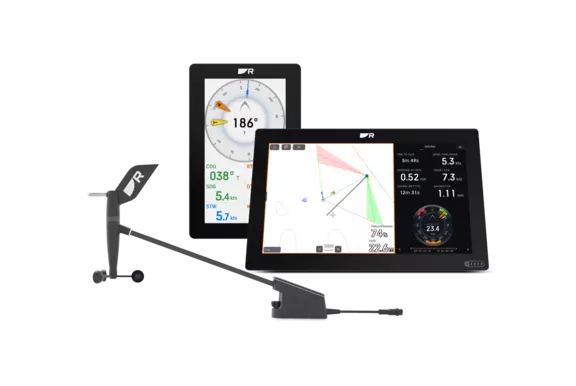

Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.

RSW Wired Options

Select your Raymarine RSW Wired below. Additional Smart Wind cabling in either 30m or 50m lengths can be purchased separately.

RSW Wired

SKU: E70670

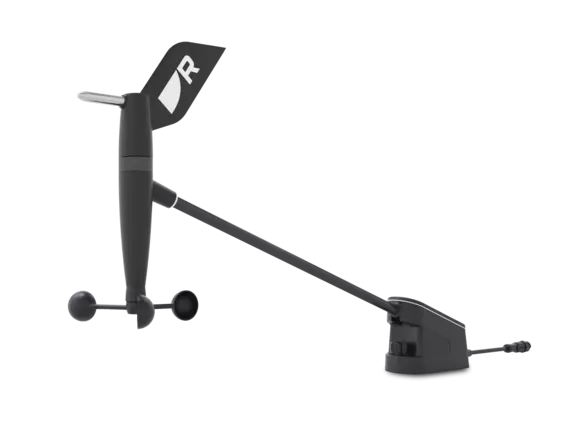

RSW Wired - Smart Performance Wind Transducer, Short Arm with 30m Cable

Find a Dealer

RSW Wired Resources

Physical
Length	Wind transducer (including cable): 657.762 mm (25.90 in) Wind transducer (excluding cable): 540.712 mm (21.29 in) Wired gateway: 155.61 mm (6.13 in)
Width	Wind transducer: 46.96 mm (1.85 in) Wired gateway: 47.38 mm (1.88 in)
Height	Wind transducer: 305.86 mm (12.04 in) Wired gateway: 30.61 mm (1.21 in)

Physical

Length

Wind transducer (including cable): 657.762 mm (25.90 in)

Wind transducer (excluding cable): 540.712 mm (21.29 in)

Wired gateway: 155.61 mm (6.13 in)

Width

Wind transducer: 46.96 mm (1.85 in)

Wired gateway: 47.38 mm (1.88 in)

Height

Wind transducer: 305.86 mm (12.04 in)

Wired gateway: 30.61 mm (1.21 in)

Power
Nominal supply voltage	12 V dc (via SeaTalk NG)
Operating voltage range	9 V to 16 V dc
Power Consumption	< 100 mW
Fuse rating	Ensure that the SeaTalk NG backbone is protected by a 5 A fuse
NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating:	1

Environmental
Operating temperature range	-25°C to +55°C (-13°F to +131°F)
Storage temperature range	-30°C to +70°C (-22°F to +158°F)
Relative humidity	Masthead: 100% Below deck: up to 93% @ 40°C
Waterproof rating	Wind transducer: IPx6/IPx7 Wired gateway: IPx3
Wind	115 mph (185 kph)
Vibration	EN 60945:2002 (exposed)

Conformance
Europe, Australia & New Zealand	EN 60945:2002
Canada	ICES-003
USA	CFR47 Part 15
Japan / China	IACS section E10
Product markings	UKCA CE Australian Tick WEEE Directive Industry Canada

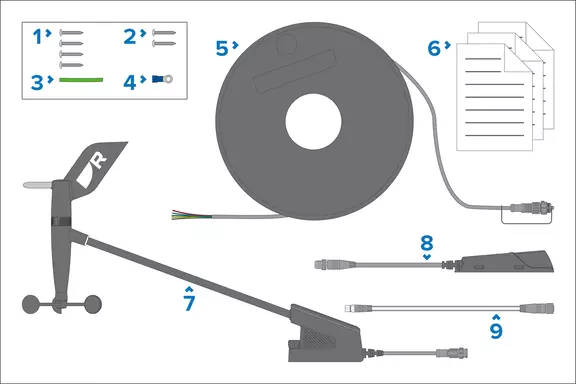

What's in the box?

The following parts are supplied with the RSW-Wired.

1	No.10 x 3/4" self tapping screws x 4 (for mounting the wind transducer)
2	No.7 x 3/4" self tapping screws x 2 (for mounting the gateway)
3	40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable)
4	Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface)
5	Mast cable, 30 m (98.43 ft) reel
6	Documentation
7	Wind transducer
8	Smart wind wired gateway
9	SeaTalk NG to DeviceNet adaptor cable, 120 mm (4.72 in)
