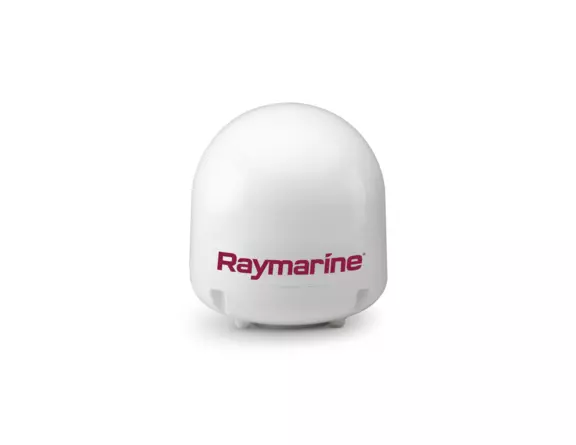

Learn moreA great blend of size and performance, the Raymarine 45STV makes satellite television at sea a reality for owners of 10.7 - 15 metres (35' - 50') vessels.
45cm reflector diameter with nationwide coverage for North America, Europe and the regional service around the globe.
Raymarine's exclusive Wide Range Search (WRS) algorithm allows the antenna to search, find and lock on to a signal with incredible speed and accuracy.
Raymarine's 45STV provides HD channels from the Ku- band. The HD module is built-in to the Antenna Control Unit of the 45STV for seamless integration and easy installation.
The 45STV includes a built-in GPS for easier operation and faster signal acquisition. It allows the 45STV to have higher accuracy and easy operation wherever the vessel sails.
With a single cable to connect the antenna and the ACU, Raymarine's satellite TV systems are quick and easy to install. Our advanced ACU is designed to require minimum setup so you can begin to enjoy TV programs aboard your boat in no time.
The built-in Wi-Fi enables the ACU to be wirelessly connected. PCs, laptops and smartphones can be used to connect to the ACU and monitor, control and change the settings of the system wirelessly. Intellian Aptus mobile is available for download to access to the ACU via Wi-Fi and operate the antenna from their iPhone, iPad or other network devices. iPhone and iPad are registered trademarks of Apple Inc.
Antenna Control Unit (ACU), which is supplied as a default package, gives you user-friendly operation for various functions.
Competitor methods search for the narrow-bandwidth of the main lobe. However Raymarine's exclusive WRS searches for the wide range of side lobes and jumps up to the main lobe, providing faster satellite acquisition.
A high-speed sub-reflector rotates off axis, checking signal strength at 50 times per second and compensating the tracking direction. Less movement of the main reflector means less noise and extends the product life
Automatic satellite search and identification. 2-axis step motors to stabilize the pedestal.
Highly efficient parabolic antenna enables 49dBW of minimum EIRP. RHCP / LHCP, Vertical / Horizontal polarization.
High speed identification employing DVB-S2 Decoder.
The 45STV includes a built-in GPS inside of the Antenna Unit for faster signal acquisition. The ship’s GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU.
Automatic Skew Angle Control System (-90°~ +90°) for Linear Horizontal/Vertical Polarization.
Satellite TV system for Brazil, Europe and Mexico
Satellite TV system with Auto Skew for Europe
| Physical | |
|---|---|
| Radome Height | 54cm / 21.2” |
| Radome Diameter | 50cm / 19.7” |
| Reflector Diameter | 45cm / 17.7” |
| Weight | 11.6kg / 25.5lbs |
| Environmental | |
|---|---|
| Operating Temp. Range | -25°C to +55°C / -13°F to +131°F |
| Storage Temp. Range | -40°C to +80°C / -40°F to +176°F |
| Water Ingress | IPX6 |
| Approvals | CE / FCC |
| Warranty | 3 years parts and 2 year labor |
| Performance | |
|---|---|
| Reception Frequency | Ku-band (10.7~12.75GHz) |
| Polarization | RHCP / LHCP, Vertical / Horizontal |
| Minimum EIRP | 48dBW |
| Azimuth Range | 680º |
| Elevation Range | 0° to +90° |
| Ship’s Motion | Roll ±25º, Pitch ±15º |
| Roll & Pitch Response Rate | 50º / sec |
| Turning Rate | 50º / sec |
| RF Output | Dual / Quad Output |
| Antenna Control Unit | |
|---|---|
| Dimensions (WxDxH) | 17.8cm x 21.7cm x 5.4cm / 7” x 8.5” x 2.1” |
| Weight | 1.2kg / 2.6lbs |
| Display | 2 line 20 character VFD module |
| GPS Interface | Built-in (NMEA 0183 GPS) |
| Power Requirement | 9.0~30.0V DC |
| Power Consumption | Typ. 30W, Max. 50W |
| 1 | RG6 (Antenna - ACU RF Cable) 15m |
| 1 | RG6 (ACU - IRD Cable) 3m |
| 1 | Power Cable 10m |
| 1 | PC Serial Cable 1.8m |
| 1 | NMEA Connector 1.5m |
| 1 | Power Connector |
| 1 | Fixings |
| 1 | Aptus software CD |
| 1 | Documentation |
| 2 | ACU Bracket x2 |
