Learn morePremium VHF with a built-in AIS receiver and loudhailer. Remote station capable, with wired and wireless microphone options

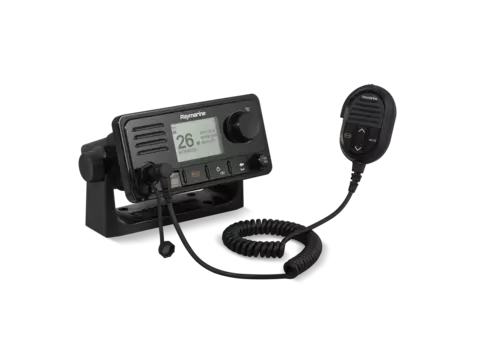

Raymarine’s Ray73 VHF radio features an internal AIS receiver and loudhailer capabilities. Built on our marine radio chassis, the Ray73 comes with oversized controls and a big screen for easy operation offshore. The Ray73 also supports optional wired or wireless RayMic controllers for true multi-station control and intercom capability. When connected to an optional hailing horn, the Ray73 can generate automatic fog signals and work as a public address announcement system.
$999.99 (USD)
| Environmental specification | |
|---|---|
| Operating temperature | -20ºC (-4ºF) to +60ºC (140ºF) |
| Storage temperature | -25ºC (-13ºF) to +70ºC (158ºF) |
| Relative humidity | 95% |
| Water proofing | IPx6 & IPx7 |
| Connections | • 1 x NMEA 0183 |
| Power specification | |
|---|---|
| Nominal supply voltage | 12 V dc (Reverse polarity and over voltage protection) |
| Operating voltage range | 9 V dc to 16 V dc |
| Current consumption | • Less than 6 A at high power (13.6 V) |
| Transmitter | |
|---|---|
| Channels | Channels All available US, International and Canadian VHF marine bands |
| Frequency Range | 156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels) |
| Frequency stability | +/- 1.5 ppm |
| Channel Spacing | 25 kHz |
| Power Output | • Low power setting — 1 W |
| Spurious emissions | Better than –36 dBm at 25 W (Less than 0.25 μW) |
| Maximum deviation | +/- 5 kHz |
| Antenna impedance | 50 Ohms (typical) |
| Receiver | |
|---|---|
| Receiver type | Double conversion super heterodyne |
| Channels | All available US, International and Canadian VHF marine bands |
| Frequency range | 156.050 MHz to 163.275 MHz / 155.500 MHz to 161.425 MHz (Private channels) |
| Sensitivity | Better than 1 microvolt EMF @ 20dB SINAD |
| Squelch sensitivity | Less than —2 dBμ EMF |
| Hum and noise | Better than –40 dB |
| Audio distortion | Less than 10% |
| Receiver sensitivity | • Distance — 119dBm (0.25uV) @ 12dB SINAD (typical) |
| Adjacent channel selectivity | More than 70 dB |
| Spurious response rejection | More than 70 dB |
| Inter modulation rejection | More than 68 dB |
| Speakers | |
|---|---|
| Base station speaker power output | 2.5 W (8 Ω) |
| Fistmic speaker power output | 1 W (16 Ω) |
| External speaker power output | 5 W (8 Ω) |
| Handset speaker power output | 1 W (16 Ω) |
| Hailer speaker power output | 25 W (4 Ω) / 12 W (8 Ω) |
| AIS | |
|---|---|
| Class type | AIS receiver only |
| GPS | |
|---|---|
| Channels | 72 |
| Cold start | < 2 minutes |
| Receiver IC Sensitivity | –167 dBm (Tracking) / –148 dBm (Acquisition) |
| GNSS compatibility | • GPS |
| SBAS compatibility | • WAAS |
| Special features | Active Jamming and Interference Reduction |
| Operating frequency | • GPS L1 C/A |
| Signal Acquisition | Automatic |
| Almanac Update | Automatic |
| Geodetic Datum | WGS-84 (alternatives available through Raymarine MFD) |
| Refresh Rate | 10 Hz (10 times per second Concurrent GNSS) |
| Antenna | • Internal — Ceramic chip mounted near top of unit |
| Position Accuracy | • Without SBAS: <= 15 metres 95% of the time |
| 1 | VHF Radio |
| 2 | Suncover |
| 3 | Panel mount gasket |
| 4 | Fistmic |
| 5 | Mounting bracket (Trunnion) |
| 6 | Mounting bracket knobs |
| 7 | Fistmic hook plate |
| 8 | 4 x M4x25 screws (For Bracket (Trunnion) mounting) |
| 9 | Documentation |
| 10 | 4 x M4 nuts, spring washers and M4x25 machine screws (For Panel mounting) |
| 11 | Protective antenna boot |
| 12 | 2 x M4x12 screws (For Fistmic hook plate mounting) |
| 13 | SeaTalkng blanking plug |
| 14 | SeaTalkng 400 mm (15.7 in.) spur cable |
