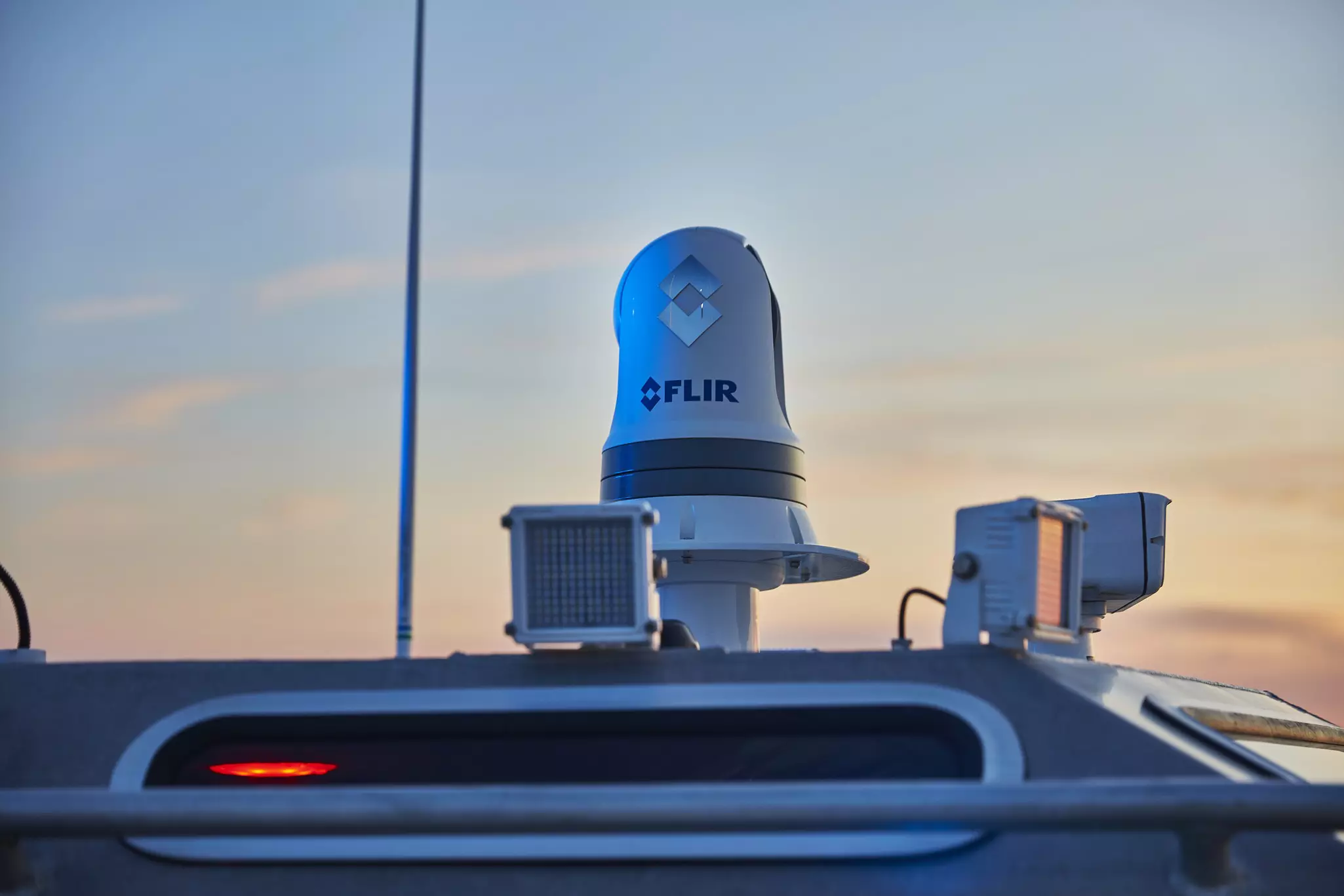

Pairing a rugged, all-weather design with one of the most advanced FLIR thermal imaging cores, the M332 delivers awareness-enhancing thermal vision for law enforcement, commercial, and recreational applications.
Advanced gyro-stabilization and high-performance thermal imaging detect obstacles and targets in complete darkness and heavy seas, allowing safe navigation in the most challenging conditions.
Thermal imaging offers vision in complete darkness, glare, and light fog.
Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.
Exceptional connectivity with navigation and security systems.
Combining the M332 with Raymarine Axiom® offers next-level performance from Raymarine ClearCruise™ Augmented Reality enhancements.
ClearCruise AR makes navigation even safer by presenting AIS targets, chart objects, and waypoints on top of real-time, high-performance thermal imaging.
30 Hz Refresh Rate
9 Hz video refresh rate
| Thermal Camera | |
|---|---|
| Focus | Fixed 12 ft (3m) to infinity |
| Image Processing | FLIR Proprietary Digital Detail Enhancement |
| Thermal Detector Type | 320x256 VOx Microbolometer |
| Thermal E-Zoom | 4x Continuous |
| Thermal Field of View | 24° × 18° |
| Thermal Focal Length | 9.1mm |
| Video Refresh Rate | 30 Hz or <9 Hz |
| System | |
|---|---|
| Analog Video Connector Type | BNC |
| Analog Video Output | NTSC/PAL User Settable |
| ClearCruise AR Analytics | Yes, with Raymarine Axiom and AR200 module |
| Current | Peak 10.0 A |
| Firefighter Mode | No |
| Gyro Stabilized | Yes |
| HD-SDI Lossless Video Output | Yes |
| Network Video Output | Two, Independent H.264/MJPEG Network Video Streams |
| ONVIF Conformance | Profile S |
| Operating Voltage Range | -10% to +30% of Nominal Supply Range |
| Pan-Tilt Adjustment Range | 360° Continuous Pan, ± 90° Tilt |
| Power Consumption | 41 W (typical) 56 W (max) |
| Environmental | |
|---|---|
| Automatic Window Defrost | Standard at Power-Up |
| EMI | IEC60945 |
| Lightning Protection | Near Strike at 2kV |
| Operating Temperature Range | -13°F to +131°F (-25°C to +55°C) |
| Salt Mist | IEC60945 |
| Sand & Dust Ingress | Mil-Std-810E or IP6X |
| Shock | 15 g vertical, 9 g horizontal |
| Storage Temperature Range | -22°F to +158°F (-30°C to +70°C) |
| Vibration | IEC60945 |
| Water Ingress | IPX6 (heavy seas, power jets of water) |
| Wind | 100 knots (115.2 MPH) |
| Physical | |
|---|---|
| Size | Camera: 8.7” (222mm) x 12.9” (328mm) / Camera with Top-Down Riser: 10.0” (254mm) x 14.4” (366mm) |
| Weight | Camera: 13.9lbs (6.3kg) / Camera with Top-Down Riser: 14.9lbs (6.8kg) |
| Range Performance | |
|---|---|
| Detect a 30-foot Vessel | 1.0nm (1850m) |
| Detect Human Sized Target | 0.3nm (560m) |
| NATO Target 2.3m x 2.3m at 50 Pct. | 0.7nm (1285m) |
| 1 | Thermal camera |
| 2 | Thermal camera base-seal |
| 3 | Thermal camera gasket |
| 4 | RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.) |
| 5 | Right-angled RayNet-to-RayNet cable 3 m (9.8 ft.) |
| 6 | Right-angled HD-SDI video cable (with BNC connectors) 3 m (9.8 ft.) |
| 7 | Right-angled power/NMEA 0183/video cable 3 m (9.8 ft.) |
| 8 | Mounting riser |
| 9 | Fixings: 3x M6 dome nuts, 3x M6 threaded studs, 3x M6 spring washers, 3x M6 nyloc nuts, and 2x M6 flat washers |
| 10 | Self-adhesive decals (for ball-down mounting only) |
| 11 | Documentation |
