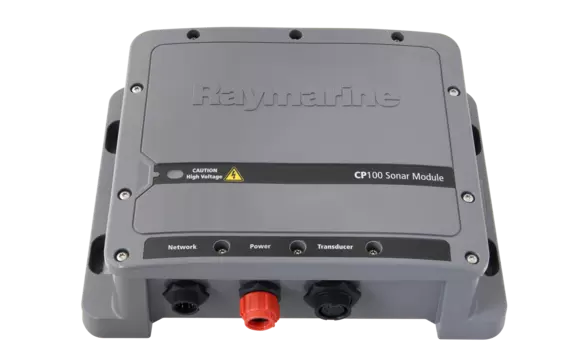

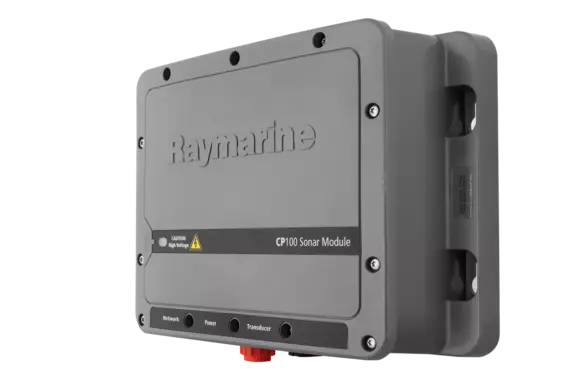

The CP100 network sonar module brings CHIRP DownVision technology to Raymarine's chartplotter displays. CP100's CHIRP DownVision delivers a photo-like view of the world beneath your boat, allowing you to image the bottom structure with amazing detail and target fish simultaneously.

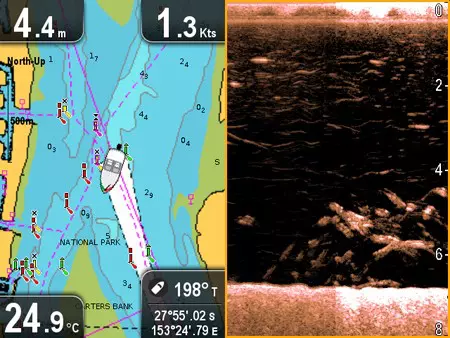

Unlike conventional imaging sonars that transmit a single frequency with each pulse, the CP100 uses CHIRP technology to transmit across a wide spectrum of sonar frequencies with each pulse - the result is much higher resolution, photo-like sonar images.

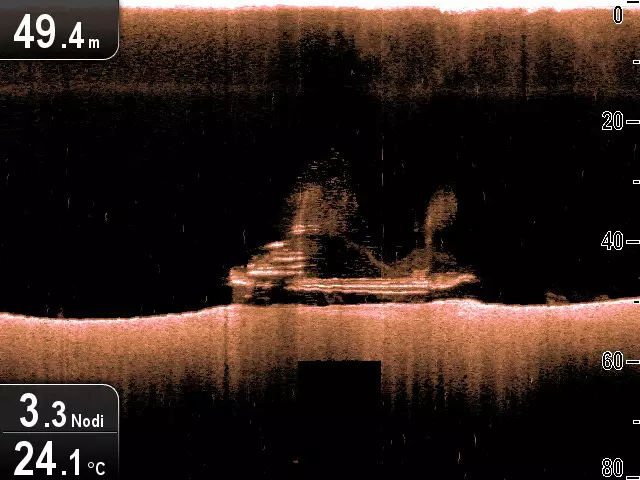

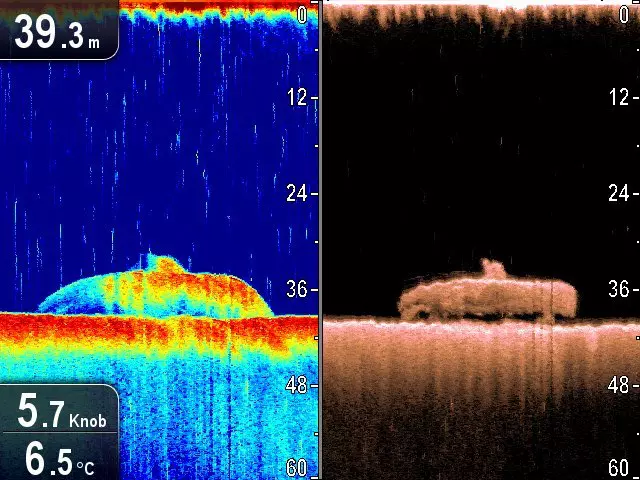

Submarine Wreck
Turtles seen swimming off Australia
Freshwater Fishing
The CP100 is the ideal sonar solution for freshwater anglers. Photo realistic CHIRP DownVision easily identifies the habitat of bass and other fresh water species.
Coastal Fishing
With depth performance up to 900ft, the CP100 is the perfect choice for coastal and bay fishing. Image wrecks with unmatched fidelity and use the second CHIRP channel to target bait and predators.
CHIRP DownVision
| Sonar | |
|---|---|
| Beam coverage | CHIRP sonar: conical beam, DownVision: wide (port / starboard) and thin (fore / aft) |
| Channels | CHIRP conical sonar, DownVision |
| Depth range | 0.6 m (2 ft) to 183 m (600 ft) Depending on water conditions |
| Environmental | |
|---|---|
| Relative humidity | Up to 95% |
| Waterproof rating | IPx6, IPx7 |
| Storage temperature | -30°C to +70°C (-22°F to 158°F) |
| Operating temperature | 0°C to 55°C (32°F to 131°F) |
| Physical | |
|---|---|
| Dimensions | Height: 162 mm (6.4 in), Width: 225 mm (8.9 in), Depth: 72 mm (2.8 in) |
| Weight | 0.6 kg (1.32 lbs) |
| Conformance | |
|---|---|
| Standards | EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2 |
| Power | |
|---|---|
| Power consumption | 5.6 W (maximum) |
| Fuse rating | 5 A |
| Nominal supply voltage | 12 V dc / 24 V dc |
| Operating voltage range | 10.8 V dc to 31.2 V dc |
| Current | 1 A peak |
| 1 | Sonar module |
| 2 | Documentation |
| 3 | Fixing screws x 4 |
| 4 | Power cable 1.5 m (5 ft) |
CHIRP sonar module with RealVision MAX and 1kW broadband CHIRP

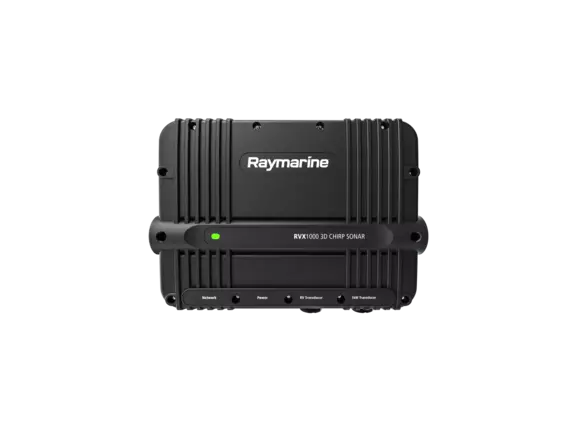

1kW CHIRP sonar module with RealVision 3D, DownVision, SideVision and High CHIRP sonar
2kW High performance, dual-channel, CHIRP Sonar module
2kW CHIRP sonar module
1kW ClearPulse 50/200kHz sonar module
