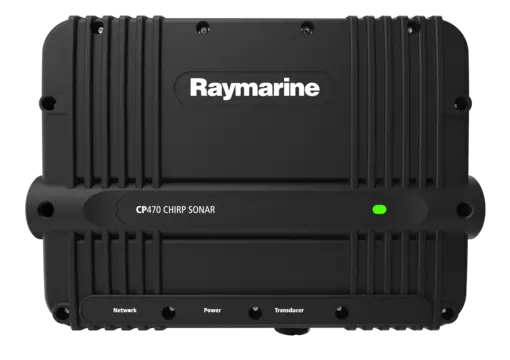

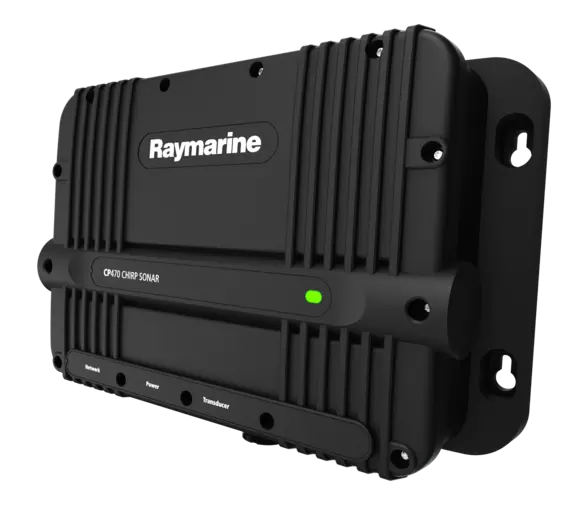

The CP470 sonar module delivers best-in-class fish finding and high-resolution CHIRP sonar imagery to Raymarine chartplotter displays. Using a wide spectrum of frequencies and greater sensitivity, the CP470's advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines, and simultaneously target desired game fish. Designed for offshore use and rough conditions, the CP470 intelligently filters out unwanted noise while producing high-resolution fish targets and reliable bottom tracking.
Superior target definition and enhanced sensitivity using Raymarine’s exclusive wide spectrum CHIRP sonar technology.
Target fish, identify bait, and track the sea floor down to 10,000ft. (3,000m) with two adjustable CHIRP sonar channels.

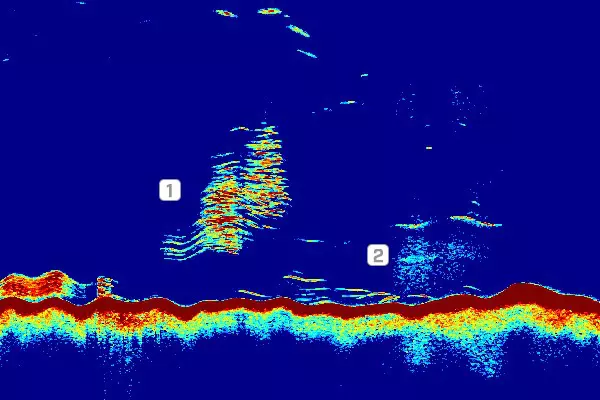

CHIRP image of bait ball (1) with game fish (2)
With 10 times the resolution of ordinary sonars the CP470 delivers sharper, more defined fish targets and automatically filter out unwanted noise so you never miss the action below.
TruZoom™ magnification mode reveals extra target detail without any loss of resolution.
Choose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences.
The CP470 automatically recognizes connected transducers and adjust sonar parameters for optimized performance.

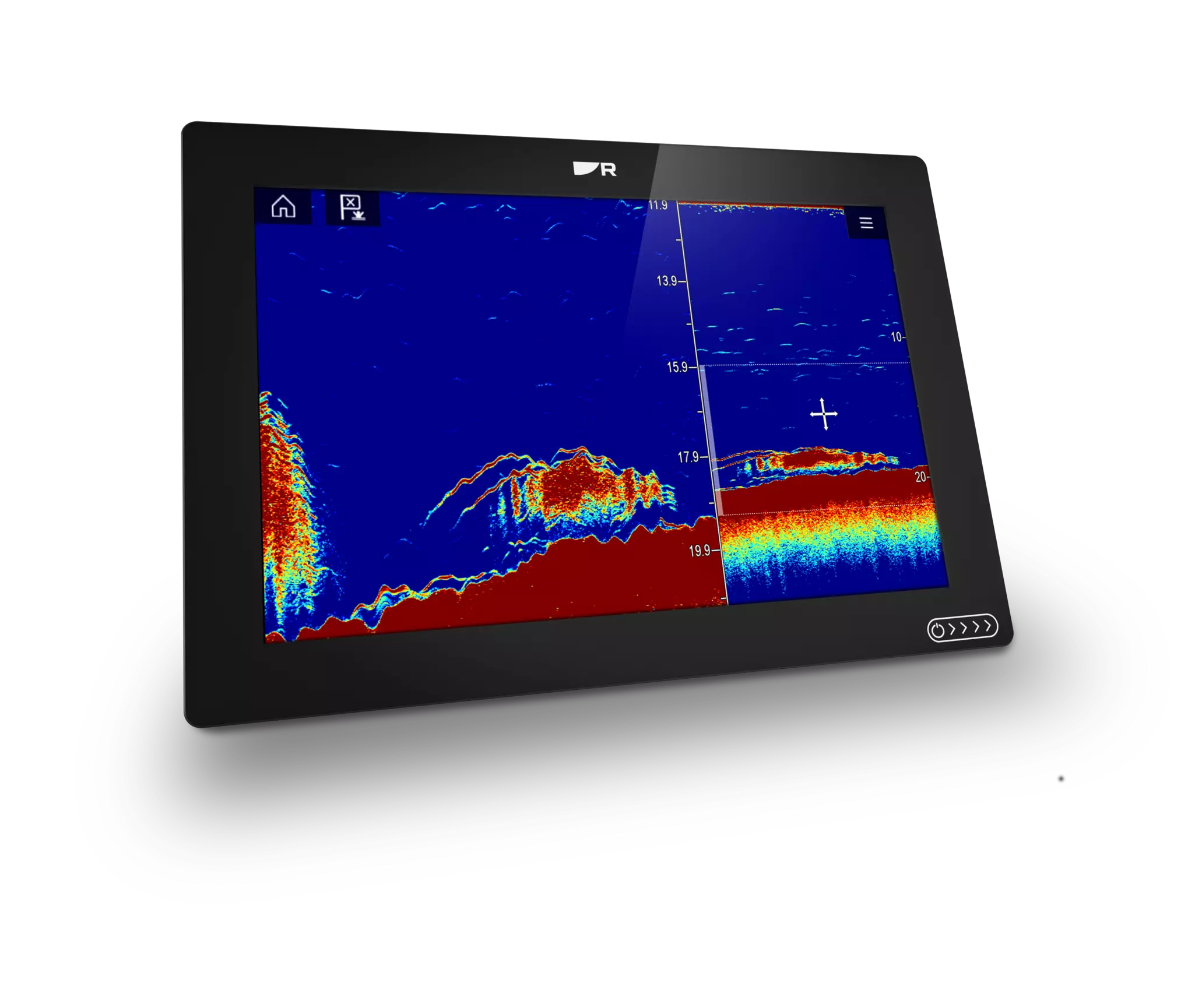

View and control each CHIRP channel independently and create your own combination of full or split screen sonar windows on Raymarine’s LightHouse powered multifunction displays.
2kW CHIRP Sonar
| Environmental | |
|---|---|
| Relative humidity | Up to 95% |
| Waterproof rating | IPx6 |
| Storage temperature | -30°C to +70°C (-22°F to 158°F) |
| Operating temperature | -20°C to +50°C (-4°F to 122°F) |
| Sonar | |
|---|---|
| Power output | Up to 2 KW (maximum) |
| Frequency | 25kHz to 255kHz |
| Depth range | 0.6 m (2 ft) to 3,000 m (10,000 ft) (Dependant upon connected transducer) |
| Physical | |
|---|---|
| Connections | Power connection, Network connection (RayNet connector) 10 / 100 Mb/s, Transducer connection |
| Dimensions | Height: 205.6 mm (8.1 in), Width: 299.4 mm (11.79 in), Depth: 84.4 mm (3.3 in) |
| Weight | 1.54 kg (3.39 lbs) |
| Conformance | |
|---|---|
| Standards | EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2 |
| Power | |
|---|---|
| Fuse rating | 5 A |
| Power consumption | 30.6 W (Maximum) |
| Current | 3 A RMS |
| Nominal supply voltage | 12 V dc / 24 V dc |
| Operating voltage range | 10.8 V dc to 31.2 V dc |
| 1 | Sonar module |
| 2 | Power cable 1.5 m (5 ft) |
| 3 | Fixing screws (No.8) x 4 |
| 4 | Cable ferrite |
| 5 | Additional ground wire kit |
| 6 | Documentation |
| 7 | RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft) |
