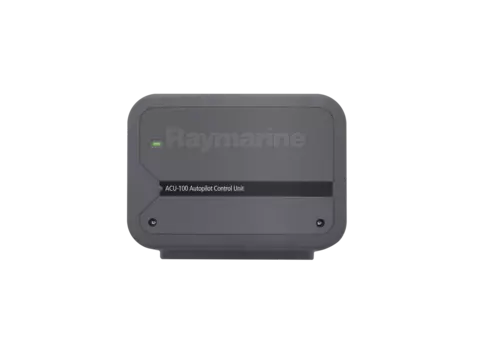

The ACU-100 (Actuator Control Unit) is a key component in Evolution autopilot systems. The ACU-100 houses the main power and drive electronics for direct connection to your vessel’s steering system and 12-volt DC electrical source. Combine the ACU-100 with an EV-1 heading sensor, an autopilot control head, and a compatible autopilot drive to create a complete Evolution autopilot system.
Autopilot drive for boats with hydraulic steering 50 to 110cc (3.1 - 6.7 in3) and 12-volt power systems.
Autopilot wheel-drive system for wheel-steered sailboats
Electric drive unit for tiller-steered sailing boats up to 6,000 kg (13,000 lbs.) displacement.
| Output | |
|---|---|
| Drive current output | Maximum continuous 7 A at supply voltage |
| Physical | |
|---|---|
| Dimensions | Width: 180 mm (7.1 in), Height: 140 mm (5.5 in), Depth: 52 mm (2.0 in) |
| Weight | 0.6 kg (1.32 lbs) |
| Environmental | |
|---|---|
| Relative humidity | Max. 93% |
| Waterproof rating | Connector panel: IPx2, Drive electronics: IPx6 |
| Storage temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Operating temperature | -20 °C to +55 °C (-4 °F to 131 °F) |
| Conformance | |
|---|---|
| Standards | Europe: 2004/108/EC, Australia and New Zealand: C-Tick, Compliance Level 2 |
| Power | |
|---|---|
| Power consumption (standby) | 300 mA (12 V) |
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 10.8 V dc to 15.6 V dc |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
| 1 | ACU unit |
| 2 | Documentation |
| 3 | Screws (pan head type) |
| 4 | SeaTalkng spur to bare wires cable 1 m (3.3 ft) |
