Learn more7, 9, and 12 inch chartplotters with touchscreen, GPS, and RealVision 3D™ fish finder
Axiom+ RV models are the perfect all-in-one chartplotter fishfinder combo for confident navigation, stunning sonar imagery, and endless expandability. Available in 7, 9 or 12 inch display sizes, Axiom+ RV is a great choice for inshore and coastal fishing boats. Choose Axiom+ RV bundled with LightHouse Charts for reliable navigation and superior chart quality. Each Axiom+ RV model comes equipped with RealVision technology, giving you 4 CHIRP sonar channels and ensuring you miss none of the action below.
Axiom+ RV is a new generation of Axiom chartplotters with RealVisionTM 3D CHIRP sonar technology. Upgraded with 25 percent brighter displays, Axiom+ RV displays will up your fishfinding game.
A quad-core processor delivers responsive performance and gives you the power to expand Axiom+ RV with solid state radar and FLIR thermal cameras or add a marine camera and navigate with ClearCruise Augmented Reality.

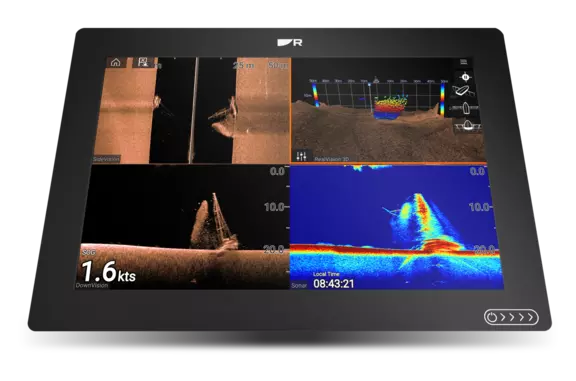

Axiom+ RV puts you in command with its advanced LightHouse operating system, making it easy to navigate and find fish with Axiom+ RV's CHIRP SideVision, DownVision, conventional CHIRP, and RealVision 3D sonar channels.
The Axiom+ RV has HydroTough nano-coated, impact-resistant screens to repel water, oil, smudges & offers durability under varying conditions. It guarantees touch control accuracy, even on wet screens.
Also, Axiom+ RV has an upgraded IPS display technology for vibrant color rendering of charts, sonar, radar, video and LightHouse color themes for varying light conditions. With a 25% brighter display at up to 1,800 nits, it provides powerful visibility in bright light.
High Frequency CHIRP Sonar for targeting fish and determining bottom density
CHIRP DownVision Sonar for high definition views of structure, fish habitat and man-made objects
CHIRP SideVision Sonar for scanning beyond casting distance to see fish, structure and submerged objects out to the sides of the boat

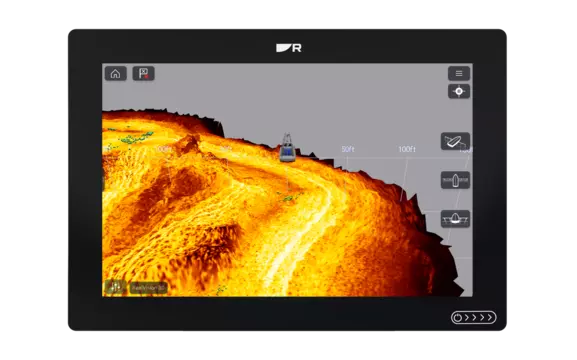

RealVision 3D Sonar which provides a gyro-stabilized, GPS-locked bathymetric model of the bottom and water column
Built-In 600W Digital Sonar at 50 kHz and 200 kHz. Add an optional adapter cable and AIRMAR transducer to your Axiom+ RV system and fish to even deeper depths with increased power and lower frequencies.
RealVision Bronze Through Hull Transducers & Pairs for Axiom+ RV, Axiom Pro & RVX-1000 sonars
RealVision Plastic Through Hull Transducer & Pairs for Axiom+ RV, Axiom Pro & RVX-1000 sonars
RealVision Transom Mount Transducer for Axiom+ RV, Axiom Pro RVX & RVX-1000 sonar systems
RealVision Stainless Steel Through Hull Transducer & Pairs for Axiom+ RV, Axiom Pro RVX & RVX-1000 sonars
Don't take our word for it, here are some of the latest reviews of the Axiom+ RV chartplotter...
Axiom+ RV Chartplotters with RealVision 3D sonar technology are available in 7, 9, and 12-inch displays. Convenient bundle packages include charts, transducer, or both. Display-only kits allow for total customization of charts and transducers, sold separately.
SKU: E70639-03-102
Was: $3,299.99
NOW: $3,049.99
12" Display
RealVision 3D & 600 Watt Sonar built in
RV-100 RealVision 3D Transducer Included
Includes preloaded LightHouse Charts North America chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70639-03
Was: $3,249.99
NOW: $2,999.99
12" Display
RealVision 3D & 600 Watt Sonar built in
RV-100 RealVision 3D Transducer Included
SKU: E70639-00-102
Was: $2,999.99
NOW: $2,699.99
12" Display
RealVision 3D & 600 Watt Sonar built in
Includes preloaded LightHouse Charts North America chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70639
Was: $2,949.99
NOW: $2,649.99
12" Display
RealVision 3D & 600 Watt Sonar built in
SKU: E70635-00-102
7" Display
RealVision 3D & 600 Watt Sonar built in
Includes preloaded LightHouse Charts North America chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70635-03
7" Display
RealVision 3D & 600 Watt Sonar built in
RV-100 RealVision 3D Transducer Included
SKU: E70635-03-102
7" Display
RealVision 3D & 600 Watt Sonar built in
RV-100 RealVision 3D Transducer Included
Includes preloaded LightHouse Charts North America chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70637-00-102
9" Display
RealVision 3D & 600 Watt Sonar built in
Includes preloaded LightHouse Charts North America chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70637-03
9" Display
RealVision 3D & 600 Watt Sonar built in
RV-100 RealVision 3D Transducer Included
SKU: E70637-03-102
9" Display
RealVision 3D & 600 Watt Sonar built in
RV-100 RealVision 3D Transducer Included
Includes preloaded LightHouse Charts North America chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
| Physical | |
|---|---|
| Dimensions (Trunnion mounted) | Axiom+ 7: Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in) Axiom+ 9: Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in) Axiom+ 12: Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in) |
| Dimensions (Surface/Flush mounted) | Axiom+ 7: Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in) Axiom+ 9: Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in) Axiom+ 12: Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in) |
| Accessory connection | USB Micro B |
| Ethernet connection | RayNet (10/100 Mbits/s) |
| External storage | MicroSDXC card slot x 1 |
| NMEA 2000 connection | DeviceNet (male connector built into power cable) |
| Wireless connections | Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n |
| Internal storage | 16 GB Solid State (14 GB usable) |
| Transducer connection | 25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers |
| LCD | |
|---|---|
| Size (diagonal) | Axiom+ 7: 7" Axiom+ 9: 9" Axiom+ 12: 12" |
| Resolution | Axiom+ 7: WSVGA 1024 x 600 Axiom+ 9: Widescreen HD 1280 x 720 Axiom+ 12: WXGA 1280 x 800 |
| Viewing angle | Axiom+ 7: Top 85° / Bottom 85° / Left 85° / Right 85° Axiom+ 9: Top 85° / Bottom 85° / Left 85° / Right 85° Axiom+ 12: Top 88° / Bottom 88° / Left 88° / Right 88° |
| Illumination | Axiom+ 7: 1800 nits / 1800 cd/m2 Axiom+ 9:1500 nits / 1500 cd/m2 Axiom+ 12: 1800 nits / 1800 cd/m2 |
| Protective coating | HydroToughTM Oleophobic |
| Type | IPS (In-Plane Switching) |
| Color depth | 24-bit |
| Number of simultaneous touches | 2 |
| Power | |
|---|---|
| Power consumption | Axiom+ 7: 9.84 W Axiom+ 9: 11.98 W Axiom+ 12: 18.96 W |
| Operating voltage range | 8 V dc to 16 V dc |
| Fuse rating | 7 A |
| Nominal supply voltage | 12 V dc |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
| Sonar | |
|---|---|
| Depth range | CHIRP conical sonar: 0.6 m (2 ft) to 274 m (900 ft), DownVision: 0.6 m (2 ft) to 183 m (600 ft), SideVision: 0.6 m (2 ft) to 91 m (300 ft) , RealVision 3D: 0.6 m (2 ft) to 91 m (300 ft) |
| Environmental | |
|---|---|
| Operating temperature | -25°C to +55°C (-13°F to 131°F) |
| Storage temperature | -30°C to +70°C (-22°F to 158°F) |
| Relative humidity | Up to 93% @ 40°C (104°F) |
| Waterproof rating | IPx6, IPx7 |
| GPS | |
|---|---|
| Position Accuracy | Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
| Geodetic Datum | WGS-84 (alternatives can be selected on the MFD) |
| Satellite Differential Type (SBAS) | WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) |
| Channels | Track up to 28 satellites simultaneously |
| Antenna | Internal - Ceramic chip mounted near top of unit |
| GNSS compatibility | GPS, GLONASS, Beidou |
| Almanac Update | Automatic |
| Signal Acquisition | Automatic |
| Receiver IC Sensitivity | 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
| Operating frequency | 1574 MHz to 1605 MHz |
| Refresh rate | 10 Hz (10 times per second) |
| Time to first fix from cold start | < 2 minutes |
| 1 | MFD (Chartplotter) |
| 2 | Trunnion bracket |
| 3 | Trunnion knobs x 2 |
| 4 | Suncover |
| 5 | Documentation |
| 6 | Panel mount gasket |
| 9 | Threaded studs (M5x58) x 4 |
| 10 | Thumb nuts (M5) x 4 |
| 11 | Power/NMEA 2000 cable (1.5 m (4.92 ft) power lead, 0.5 m (1.64 ft) NMEA 2000 lead) |
| 12 | DeviceNet to SeaTalkng adaptor cable 120 mm (4.7 in) |
