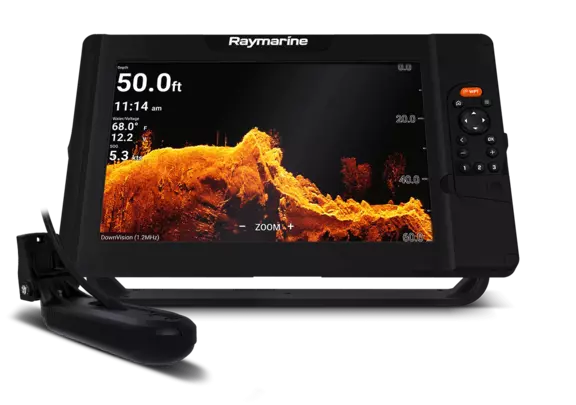

The Element™ CHIRP Sonar / GPS series from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.

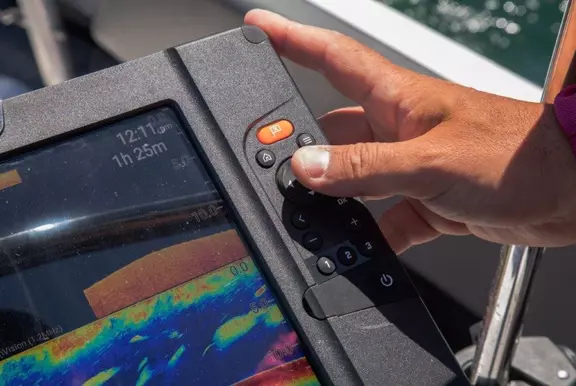

Bright and Rugged - Sunlight viewable displays with integrated GPS/GNSS receiver.
Superior HyperVision™ - 1.2 megahertz CHIRP sonar technology delivers much higher resolution imaging compared to conventional side and down scanning sonars.
RealVision™ 3D Built-In - Accurately identify the location of ledges, channel beds, and other contour changes.

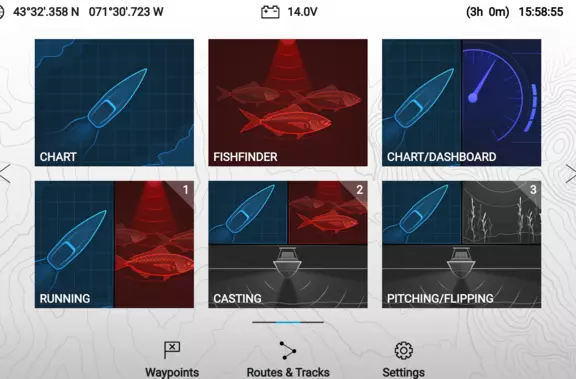

Fast Quad-Core Processor - For instantaneous chart re-draw and sharp 3D imaging.

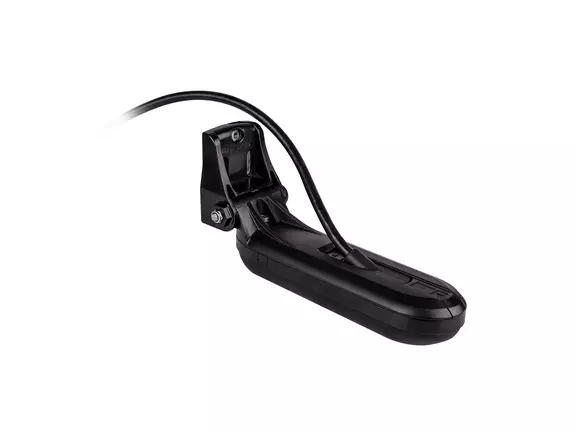

All-in-one Transducer - Combines HyperVision, DownVision, SideVision, RealVision, and conventional CHIRP sonar channels into one simple installation.

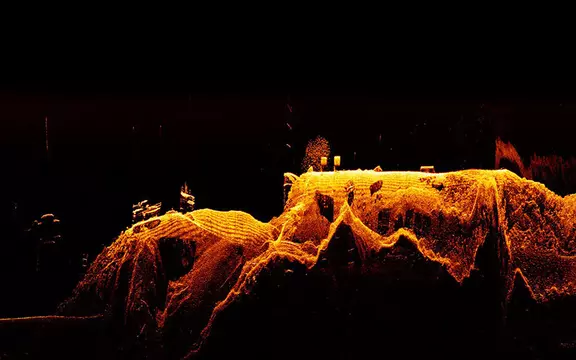

HyperVision uses super high frequencies (1.2 megahertz) and CHIRP technology to bring a new level of precision imaging to DownVision, SideVision and RealVision 3D.
1.2 megahertz HyperVision mode is optimized for super high-resolution imagery up to 100’ (30 meters).
Switch to standard 350 kHz CHIRP sonar for longer range, high-resolution imaging, and ranges up to 600’ (180 meters).
Element’s advanced CHIRP sonar also operates in the high-frequency 200kHz range for fish targeting, high-speed bottom tracking, and depths up to 900ft.
Captain Sam Sutton makes his living guiding anglers on the storied waters of the Florida Keys and relies on his Element HV, which features super-fast QuadCore processing and 1.2 MHz HyperVision sonar. The lifelike clarity that Element’s super-high-frequency HyperVision sonar produces — especially in the SideVision mode — is one of Sutton’s favorite features. “It (HyperVision) ends the guessing game,” he says.
Don't take our word for it, here are some of the latest reviews of the Element HV chartplotter...

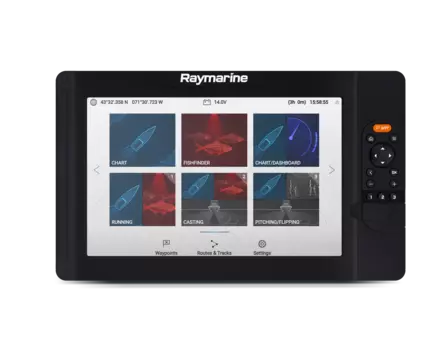

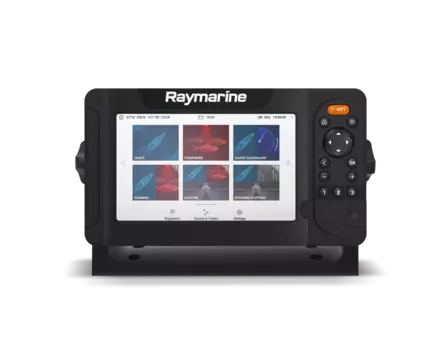

Element HV is available in 7", 9" and 12" display sizes and with bundled cartography options.
SKU: E70534-00-102
9" Display
Includes preloaded LightHouse Charts North America chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70534-05-102
9" Display
HV-100 transducer included
Includes preloaded LightHouse Charts North America chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70536-00-102
12" Display
Includes preloaded LightHouse Charts North America chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70536-05-102
12" Display
HV-100 transducer included
Includes preloaded LightHouse Charts North America chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70532-00-102
7" Display
Includes preloaded LightHouse Charts North America chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70532-05-102
7" Display
HV-100 transducer included
Includes preloaded LightHouse Charts North America chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70644-05-NEU
7" Display
HV-100 transducer included
Includes preloaded LightHouse Charts Northern Europe chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70644-05-WEU
7" Display
HV-100 transducer included
Includes preloaded LightHouse Charts Western Europe chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70644-05-MED
7" Display
HV-100 transducer included
Includes preloaded LightHouse Charts Mediterranean chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70532-00-NAG
7" Display
Includes preloaded Navionics US and Coastal Canada chart card
SKU: E70532-00-MCB
7" Display
Includes blank Navionics chart card for one region download
SKU: E70532-05-NAG
7" Display
HV-100 transducer included
Includes preloaded Navionics US and Coastal Canada chart card
SKU: E70532-05-MCB
7" Display
HV-100 transducer included
Includes blank Navionics chart card for one region download
SKU: E70645-05-NEU
9" Display
HV-100 transducer included
Includes preloaded LightHouse Charts Northern Europe chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70645-05-WEU
9" Display
HV-100 transducer included
Includes preloaded LightHouse Charts Western Europe chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70645-05-MED
9" Display
HV-100 transducer included
Includes preloaded LightHouse Charts Mediterranean chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70534-00-NAG
9" Display
Includes preloaded Navionics US and Coastal Canada chart card
SKU: E70534-00-MCB
9" Display
Includes blank Navionics chart card for one region download
SKU: E70534-05-NAG
9" Display
HV-100 transducer included
Includes preloaded Navionics US and Coastal Canada chart card
SKU: E70534-05-MCB
9" Display
HV-100 transducer included
Includes blank Navionics chart card for one region download
SKU: E70536-00-NAG
12" Display
Includes preloaded Navionics US and Coastal Canada chart card
SKU: E70536-00-MCB
12" Display
Includes blank Navionics chart card for one region download
SKU: E70646-05-NEU
12" Display
HV-100 transducer included
Includes preloaded LightHouse Charts Northern Europe chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70646-05-WEU
12" Display
HV-100 transducer included
Includes preloaded LightHouse Charts Western Europe chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70646-05-MED
12" Display
HV-100 transducer included
Includes preloaded LightHouse Charts Mediterranean chart card
Includes 1 Free year of LightHouse Charts Premium Subscription
SKU: E70536-05-NAG
12" Display
HV-100 transducer included
Includes preloaded Navionics US and Coastal Canada chart card
SKU: E70536-05-MCB
12" Display
HV-100 transducer included
Includes blank Navionics chart card for one region download
| Physical | |
|---|---|
| Dimensions (Trunnion mount) | Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in) Element 9: Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in) Element 12: Height: 225.19 mm (8.87 in), Width: 373.40 mm (14.70 in), Depth: 149.40 mm (5.88 in) |
| Dimensions (surface mount) | Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in) Element 9: Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in) Element 12: Height: 215.20 mm (8.47 in), Width: 357.20 mm (14.06 in), Depth: 149.40 mm (5.88 in) |
| Weight (display only) | Element 7: 1.0 Kg (2.2lbs) Element 9: 1.3 Kg (2.86lbs) Element 12: 2.0 Kg (4.4lbs) |
| LCD | |
|---|---|
| Size (diagonal): | Element 7: 7.0" Element 9: 9.0" Element 12: 12.1" |
| Resolution | Element 7: WVGA 800 x 480 Element 9: WVGA 800 x 480 Element 12: WXGA 1280 x 800 |
| Ratio | Element 7: 5:3 Element 9: 5:3 Element 12: 8:5 |
| Viewing angle (T / B / L / R): | Element 7: 50° / 60° / 70° / 70° Element 9: 50° / 70° / 70° / 70° Element 12: 89° / 89° / 89° / 89° |
| Type | Element 7: TN (Twisted Nematic) Element 9: TN (Twisted Nematic) Element 12: IPS (In-Plane Switching) |
| Color depth | 24-bit |
| Maximum Illumination | 1500 nits / 1500 cd/m2 |
| Power | |
|---|---|
| Operating voltage range | 8 V dc to 16 V dc (protected up to 32 V dc) |
| Power consumption (Approximate @ 12 V dc) | Element 7: 15 Watts Element 9: 20 Watts Element 12: 25 Watts |
| Nominal supply voltage | 12 V dc |
| Fuse requirements | Inline fuse = 5 A, Thermal breaker = 3 A |
| LEN (NMEA 2000 Load Equivalency Number) | 1 (Based on 9 V dc nominal voltage) |
| Data connections | |
|---|---|
| SeaTalkng / NMEA 2000 | 1 x DeviceNet female connector built into power cable |
| 2.4 GHz Wi-Fi | 1 x 802.11/b/g/n |
| Transducer | 1 x 15-pin HyperVision connector |
| Hypervision | |
|---|---|
| 350 kHz (Standard) range | RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft) each side, DownVision = 0.6 M (2 ft) to 183 m (600 ft) |
| 1.2 MHz (Hyper) range | RealVision 3D = 0.6 M (2 ft) to 38 m (125 ft), SideVision = 0.6 M (2 ft) to 38 m (125 ft) each side, DownVision = 0.6 M (2 ft) to 38 m (125 ft) |
| Sonar channels | Conical high CHIRP sonar, RealVision 3D (Hyper), RealVision 3D (Standard), SideVision (Hyper), SideVision (Standard), DownVision (Hyper), DownVision (Standard) |
| 200 kHz range | Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft) |
| Frequencies | 1.2 MHz CHIRP, 350 kHz CHIRP, 200 kHz CHIRP |
| Power | 1.2 MHz (Hyper) = 1000 W, 350 kHz (Standard) = 700 W, 200 kHz (Conical high CHIRP sonar) = 100 W |
| Storage | |
|---|---|
| External | 1 x MicroSDXC card slot |
| Environmental | |
|---|---|
| Operating temperature range | -25°C (-13°F) to +55°C (+131°F) |
| Storage temperature range | -30°C (-22°F) to +70°C (+158°F) |
| Humidity | up to 93% @ 40°C (+104°F) |
| Waterproof rating | IPx6, IPx7 |
| GPS Receiver | |
|---|---|
| Position Accuracy | Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
| Geodetic Datum | WGS-84 (alternatives can be selected on the MFD) |
| Channels | Multiple - ability to simultaneously track up to 28 satellites |
| Antenna | Internal - Ceramic chip mounted near top of unit |
| GNSS compatibility | GPS, GLONASS, Beidou |
| SBAS compatibility | EGNOS, GAGAN, MSAS, QZSS, WAAS |
| Signal Acquisition | Automatic |
| Almanac Update | Automatic |
| Receiver IC Sensitivity | 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
| Operating frequency | 1574 MHz to 1605 MHz |
| Cold start | < 2 minutes |
| Conformance | |
|---|---|
| Standards | EN 60945:2002, EMC Directive 2014/30/EU, Australia and New Zealand C-Tick compliance level 2, Canadian RSS 247, FCC rules part 15 |
| 1 | Element display |
| 2 | Surface mount gasket |
| 3 | Suncover |
| 4 | Trunnion knobs (x 2) |
| 5 | Documentation |
| 6 | Trunnion bracket |
| 7 | Surface mount stainless steel fixings x 4 (M4 x 40 machine screw, M4 flat washer, M4 locking nut) |
| 8 | Power / NMEA 2000 cable (includes 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead). |
